Ford Expedition Fuel Pump Relay Guide: 1997-2008
If your Expedition cranks but won't start, the fuel pump relay is a likely suspect.
- The most common symptom of a bad fuel pump relay is the engine cranking but not starting.
- For 1997-2002 and 2007-2008 models, this is a very easy, 5-minute DIY plug-in replacement.
- For 2003-2006 models, the relay is soldered to the fuse box, requiring a complex professional repair or fuse box replacement.
- Always check the simple things first: the fuel pump fuse and the inertia switch in the passenger kick panel.
Is Your Expedition's Relay a Simple Swap or a Major Repair?
For 1997-2008 Ford Expedition owners, a failing fuel pump relay is a common problem, but the repair process is very different depending on your vehicle's year. Before buying a part, it's critical to know what you're up against.
For 1997-2002 and 2007-2008 Expedition Models
If you own an Expedition from these years, you're in luck. The fuel pump relay is a standard, plug-in style relay located in the power distribution box in the engine compartment. Replacement is straightforward: locate the old relay using your owner's manual, pull it out, and plug the new one in. This is a simple, 5-minute job that anyone can do.
🎬 Watch this video to find the 1997-2002 relay locations.Major Issue for 2003-2006 Expedition Models

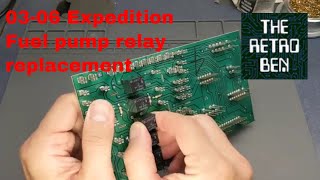

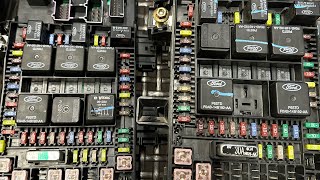

If you own a 2003, 2004, 2005, or 2006 Expedition, the fuel pump relay is NOT a simple plug-in part. Ford soldered the relay (often labeled R303) directly onto the circuit board inside the Central Junction Box (the fuse box located in the passenger-side kick panel). This is a known design flaw. When this relay fails, it often burns the circuit board, causing intermittent stalling or a no-start condition. Repairing this requires either replacing the entire expensive fuse box or sending it to a specialist for repair, which involves de-soldering the old relay and soldering a new one on. 🎬 See how a specialist replaces the soldered R303 relay. This is not a standard DIY repair.
Symptoms of a Failing Fuel Pump Relay
A bad fuel pump relay will stop your engine from getting fuel. Watch for these signs:
- Engine Cranks, But Won't Start: This is the most common symptom. The starter will turn the engine over, but it will never fire up because there's no fuel.
- Intermittent Stalling: The vehicle may run fine and then suddenly die for no reason, sometimes while driving. It might start back up after cooling down for 10-20 minutes.
- No 'Hum' from the Fuel Tank: When you turn the key to the 'on' position (without starting), you should hear a faint 2-second hum from the rear of the vehicle as the fuel pump primes. If you hear silence, the relay may not be sending power to the pump.
- Loss of Power: If the relay is failing intermittently, it can cause the engine to hesitate or lose power under acceleration.
Choosing the Right Aftermarket Relay (1997-2002, 2007-2008)
For the models with a plug-in relay, the choice is simple. Relays are a fairly standard component.
- ACDelco: A well-regarded brand that manufactures parts for many automakers. It's a reliable choice that meets or exceeds OEM specifications.
- Replacement: This is a budget-friendly option. For a simple part like a relay, it can be a cost-effective choice, though it may not have the same long-term durability reputation as a premium brand.
For 2003-2006 models, you are not buying a simple relay. You are buying a fuse box repair service or a complete new Central Junction Box. Do not purchase a standard relay expecting it to fix the problem.
| Part Type | Cost |
|---|---|
| New Aftermarket Relay (Plug-in type) | $17 - $45 |
| New OEM Relay (Plug-in type) | $25 - $50 |
| Fuse Box Repair Service (2003-2006) | $100 - $250 (plus shipping) |
| New Central Junction Box (2003-2006) | $350 - $550+ |
| Shop Labor (Plug-in Relay) | $50 - $100 |
| Shop Labor (Fuse Box Replacement) | $150 - $300 |
Frequently Asked Questions
Can I replace the fuel pump relay myself?
For 1997-2002 and 2007-2008 models, yes. It is as easy as pulling out a fuse. For 2003-2006 models, no, this is a job for a professional with electronics and soldering experience.
Where is the fuel pump relay located?
On 1997-2002 models, it's in the power distribution box in the engine compartment. On 2003-2006 models, it is soldered inside the fuse box behind the passenger side kick panel. On 2007-2008 models, it is in the passenger compartment fuse box. Always check your owner's manual for the exact location and diagram.
Is a bad relay the same as a bad fuel pump?
No. The symptoms are very similar, but the relay is a small, inexpensive electrical switch, while the fuel pump is a more expensive mechanical part inside the fuel tank. A failing fuel pump can draw too much current and burn out the relay. It's wise to diagnose the relay first, 🎬 Watch a professional diagnose a fuel pump vs relay issue. as it's a much cheaper fix.
What about the inertia switch?
The inertia switch is a safety device designed to cut power to the fuel pump in a collision. It can sometimes be tripped by a hard bump. Before replacing relays or pumps, check that the inertia switch (located in the passenger footwell area) has not been tripped. If the button on top is popped up, push it back down to reset it.
Helpful Videos
Technical Specifications
OEM Part Numbers: F57B-14B192-AA F5TZ-14N089-A
This guide primarily covers the fuel pump relay. For 1997-2002 and 2007-2008 models, this is a standard 4 or 5-pin plug-in automotive relay. For 2003-2006 models, the problematic component is the R303 relay, which is soldered to the Central Junction Box circuit board.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
