A Ford Expedition Owner's Guide to the Direct Ignition Coil Boot Kit (1997-2009)
Solve your Expedition's rough idle and misfires by understanding this critical ignition part.
- Always replace ignition coil boots in a full set when changing spark plugs to ensure reliability.
- A bad boot can cause the same misfire symptoms (P0301-P0308) as a bad coil, making it a smart, affordable first part to replace.
- Use a small amount of dielectric grease inside the boot to seal out moisture and prevent future issues.
- Stick to reputable aftermarket brands like Denso or Standard to get OEM-level quality without the high cost.
Is Your Expedition Shaking, Sputtering, or Losing Power?
If your 1997-2009 Ford Expedition is running rough, hesitating when you accelerate, or the check engine light is on, a failing ignition coil boot could be the problem. These rubber boots get brittle and crack over time from constant heat. When they fail, moisture can get in, or the spark can jump to the cylinder head instead of the spark plug, causing a misfire.
Common Symptoms of a Bad Coil Boot
A bad coil boot often mimics the symptoms of a more expensive bad ignition coil or a fouled spark plug. Watch for these signs:
- Rough Idle: The engine may shake or vibrate more than usual when stopped.
- Engine Misfires: You might feel a stutter or hesitation during acceleration.
- Check Engine Light: Misfires will trigger the check engine light. Common codes include a general misfire (P0300) or cylinder-specific misfires (P0301 through P0308).
- Reduced Fuel Economy: An inefficient engine burns more gas.
Don't Ignore a Misfire
Driving with a persistent misfire can dump unburned fuel into the exhaust. This can overheat and destroy your catalytic converters, leading to a much more expensive repair.
Choosing the Right Aftermarket Coil Boot Kit
For a vehicle like the 1997-2009 Expedition, high-quality aftermarket parts offer excellent value. The original Motorcraft parts are good, but reputable aftermarket brands can provide the same level of performance for less money. When it comes to ignition components, avoid the cheapest, no-name options, as they often fail quickly and lead to more repair work.
Brand Quality Tiers:
- Denso: Denso is a well-respected OEM supplier for many car manufacturers and has a reputation for high-quality ignition components. Choosing Denso is a reliable option that often meets or exceeds original factory specifications.
- Standard Motor Products (SMP): Standard is a major aftermarket manufacturer that offers several product lines. Their main line provides a dependable, OE-quality replacement. They are a solid choice for a balance of price and performance.
Pro Tip: Replace Boots and Plugs Together
It is highly recommended to replace your ignition coil boots every time you change your spark plugs. The boots must be removed to access the plugs anyway, and old boots are prone to tearing during removal or failing shortly after new plugs are installed. Also, always apply dielectric grease to the inside of the new boot to seal it against moisture and make future removal easier.

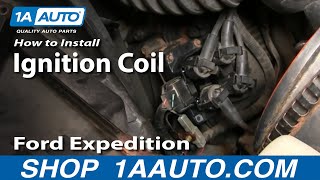

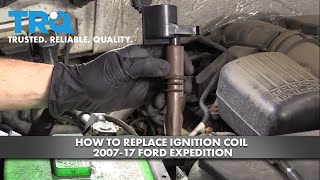

🎬 Watch this step-by-step guide on replacing your ignition coil boots.Known Issues for the 1997-2009 Ford Expedition
No specific recalls were found for the ignition coil boots on these models. However, Ford did issue a Technical Service Bulletin (TSB 05-22-8) related to diagnosing misfires in Coil-On-Plug systems for a wide range of vehicles, including the Expedition. This TSB provides technicians with advanced diagnostic steps for hard-to-find misfire issues, underscoring that problems in this system are common. The Triton engines in these trucks are well-known for ignition-related issues, often caused by moisture intrusion into the spark plug wells.
🎬 See how moisture causes Triton engine misfires and how to fix it.Cost to Replace Ignition Coil Boot Kits
| Part Type | Estimated Cost (Parts Only) |
|---|---|
| New Aftermarket Kit (8 Boots) | $54.00 - $86.89 |
| New OEM (Motorcraft) Kit (8 Boots) | $90 - $150 |
Note: Prices are estimates and can vary based on supplier and brand. This table does not include labor costs.
Frequently Asked Questions
Do I have to replace all 8 coil boots at once?
Yes, it is highly recommended. The boots are all the same age and have been exposed to the same conditions. If one has failed, others are likely to fail soon. Replacing them all at once saves you from having to do the same job multiple times.
What's the difference between the coil boot and the ignition coil?
The ignition coil is the electronic component that transforms the vehicle's 12-volt power into the high voltage needed to create a spark. The boot is the rubber insulator that connects the coil to the spark plug. A bad boot can cause a misfire, but the coil itself might still be good.
Can I reuse the little spring inside the boot?
No. New coil boot kits come with new springs. The spring is a critical conductor, and the old one can be corroded or weak. Always use the new spring provided with the new boot.
Will new boots fix my check engine light with a P0304 code?
A P0304 code means you have a misfire on cylinder #4. A faulty coil boot is a very common cause for this code. While it could also be a bad spark plug or ignition coil, replacing the boot (and plug) is a logical and cost-effective first step in the repair.
🎬 Learn how to diagnose and clear a cylinder misfire code.Are the brown boots and black boots interchangeable?
For some later model years in this range, Ford used different colored boots (black vs. brown) to identify different spark plug designs inside the engine. While the boots themselves may physically interchange, you should always order the kit specified for your exact year and engine to ensure compatibility and avoid confusion.
Helpful Videos
Technical Specifications
OEM Part Numbers: 3L3Z-12029-BA 1L2Z-12029-AA 3W7Z-12029-AA
Kit includes 8 silicone boots and 8 connector springs. Designed for Coil-on-Plug (COP) ignition systems used in Ford 4.6L and 5.4L Triton V8 engines.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
