Ford F-250 ABS Wheel Speed Sensor Guide for 1997-2009 Models
If your ABS light is on and your speedometer is acting up, a bad wheel speed sensor is the most likely cause.
- A bad rear sensor is the most common failure and will affect your speedometer and shifting.
- You need a scanner that can read ABS-specific codes to diagnose the problem correctly.
- Replacing the rear sensor is an easy DIY job, but the front sensors require more work.
- Always check the wiring for damage before assuming the sensor itself has failed.
Is Your ABS Light On? Understanding the Symptoms
A bad ABS sensor will almost always turn on the ABS warning light on your dashboard. However, on the 1997-2009 F-250, the symptoms depend on WHICH sensor has failed. Your truck has sensors at the front wheels and one sensor on top of the rear differential.
- Rear Sensor Failure (Most Common): This is the most frequent problem. Since this sensor also controls your speedometer, you'll notice more than just an ABS light. Symptoms include an erratic or completely dead speedometer, the odometer not tracking miles, harsh or incorrect shifting from the automatic transmission, and the cruise control not working.
- Front Sensor Failure: When a front sensor fails, it typically only triggers the ABS light. Your speedometer and transmission should continue to work normally. In some cases, you might feel the truck pull to one side during hard braking as the ABS system gets a bad signal.
You Need an ABS-Capable Code Reader
A basic engine code reader that you might get from a parts store for free often cannot read ABS codes. To know for sure which sensor is bad, you need a scan tool that can communicate with the ABS module. Guessing can cost you time and money.
Choosing the Right Aftermarket ABS Sensor
You don't have to buy the expensive OEM part from a dealer. Several aftermarket brands offer quality replacements. Here’s how they generally stack up based on mechanic and owner feedback.
- Premium Aftermarket (Delphi, SKF, Standard Ignition - SMP): Brands like Delphi and Standard Motor Products are often suppliers of original parts to car manufacturers and have a strong reputation for quality and reliability. They are built to meet or exceed OEM standards and are a trusted choice for a durable repair.
- Standard Aftermarket (Dorman, Holstein, NGK): Dorman is a very common brand that offers a cost-effective solution. They are widely available and can be a good value, though some professional mechanics have mixed opinions on their long-term durability compared to premium brands. NGK (under their NTK brand) and Holstein are also solid choices in this tier.
- Value Brands (URO Parts, Walker Products, True Tech): These brands focus on being the most affordable option. They can be a good fit for a tight budget, but may not have the same level of quality control or longevity as more established brands.
How Much Does an F-250 ABS Sensor Cost?
The cost depends on the brand you choose and who does the work. The rear sensor is typically less expensive than the front sensors.
| Part Type | Typical Cost |
|---|---|
| New Aftermarket Sensor | $22 - $174 |
| New OEM (Motorcraft) Sensor | $75 - $250+ |
| Shop Labor | $60 - $150 |
Cost estimates are approximate and can vary by location and vehicle specifics.
Pro Tip: Check the Wires First!
Before you replace a sensor, always inspect the wiring harness that connects to it. Wires, especially for the front sensors, can get stretched, corroded, or damaged by road debris. Sometimes, simply cleaning the connector or repairing a broken wire is all that's needed to fix the problem.
Frequently Asked Questions
Can I replace the ABS sensor myself?

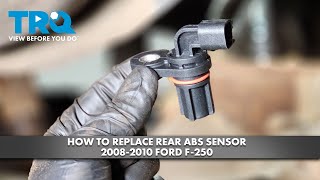

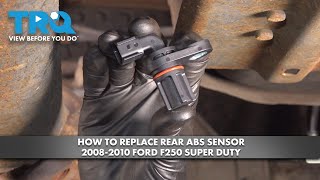

Yes, this is a DIY-friendly job, especially the rear sensor. The rear sensor is held by a single bolt on top of the differential and is very accessible. 🎬 Watch: How to replace the rear differential ABS sensor. The main challenge is that it can get seized in the housing and may break during removal. The front sensors are more involved, requiring you to remove the wheel, brake caliper, and rotor to gain access.

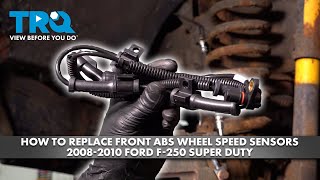

🎬 See this walkthrough for replacing front wheel speed sensors.What is the difference between the 1997-1998 F-250 and the 1999+ Super Duty?
The 1997-1999 F-250 "Light Duty" models were based on the F-150 platform of that era. The F-250 Super Duty, introduced in 1999, is a completely different, heavier-duty truck. While the rear differential sensor is a common failure on both, you must ensure you are buying the part listed for your exact year, model, and drivetrain (4WD vs 2WD) as they are not always interchangeable.
Why did my speedometer quit when the ABS light came on?
This happens when the single sensor located on the rear axle differential fails. On these F-250s, that one sensor provides the speed signal for both the Anti-lock Brakes (ABS) and the speedometer/transmission computer (VSS). When it fails, all systems that rely on it stop working correctly.
🎬 Watch: Fixing the ABS light and dead speedometer issue.Are there any recalls for this problem?
There are no specific recalls from Ford or NHTSA for ABS wheel speed sensor failure on the 1997-2009 F-250 models. However, the failure of the rear differential sensor is a widely documented and very common problem according to owner forums and mechanic repair data.
Helpful Videos
Technical Specifications
OEM Part Numbers: F85Z-9E731-AB YC3Z-2C204-BA F81Z-2C204-BB 6C3Z-2C204-A
Your truck uses two types of sensors: one on the rear differential (also acts as VSS) and one at each front wheel hub (on 4WABS models). They are magnetic sensors that generate a signal from a tone ring. Connectors and mounting styles vary by year and location, so verify the part for your specific truck.
