Ford Lobo ABS Wheel Speed Sensor Guide for 1997-2009 Models
Diagnosing and replacing the ABS wheel speed sensor on your Ford Lobo to turn off that warning light.
- A lit ABS warning light is the primary symptom; your normal brakes will still function, but without the anti-lock safety feature.
- The issue is often a bad sensor, but can also be caused by metal debris on the sensor tip or a wiring issue.
- Replacement is a simple DIY job, typically involving one bolt, but the sensor can get stuck in its housing.
- For best results, choose a quality aftermarket brand like SKF, NGK, or Standard Ignition (SMP) as the OEM part may be discontinued.
Is Your ABS Light On? Understanding the Symptoms
When an ABS wheel speed sensor fails on your 1997-2009 Ford Lobo, the signs are usually straightforward. Because the truck's computer can no longer read the speed of a wheel, it shuts down the safety system and turns on a warning light. The most common symptoms include:
- ABS Warning Light: The 'ABS' light on your dashboard will turn on and stay lit. This is the most definite sign of a problem within the anti-lock brake system.
- Traction Control Light: If your truck has traction control, that light may also come on, as the system uses the same wheel speed sensors to function.
- Disabled ABS Function: During a hard stop, you'll notice that the wheels can lock up and skid. Your normal brakes will still work, but the anti-lock safety feature will be inactive.
- Erratic Brake Pedal Pulsing: In some rare cases, a failing sensor might send a bad signal that causes the ABS to activate incorrectly at low speeds, which you would feel as a pulsing or chattering in the brake pedal.
Check for Debris First
The ABS sensor is a magnet. It can collect metallic dust and road grime from the brakes. Sometimes, simply removing the sensor, wiping the tip clean, and reinstalling it can solve the problem, at least temporarily.
Choosing the Right Aftermarket ABS Sensor
For many older trucks like the 1997-2003 F-150/Lobo, the original Motorcraft rear sensor may be discontinued, making aftermarket the only option. For a simple electronic part like this, a quality aftermarket brand offers good value. However, not all brands are created equal. Based on owner feedback and brand reputation, here is a breakdown of your choices.
Tier 1: Premium Aftermarket
These brands are known for producing high-quality electronic components that meet or exceed OEM specifications. They are a reliable choice for a long-lasting repair.
- SKF: With a long history in automotive bearings and hubs, SKF sensors are engineered to high standards for durability and accurate readings.
- NGK (or NTK): While famous for spark plugs, NGK's sensor division (NTK) is highly regarded for its electronics and is a trusted OEM supplier.
- Standard Ignition (SMP): A well-respected brand in the professional mechanic community, often recommended on forums as a dependable choice.
Tier 2: Standard Aftermarket
These brands are widely available and offer a balance of price and accessibility. They are a common choice for DIY repairs.
- Dorman: Dorman makes a huge variety of parts and is known for creating replacements for discontinued OEM components. Quality can be inconsistent, but they are generally an acceptable option and often come with a decent warranty.
Tier 3: Economy & Niche Brands
These brands may be a budget-friendly option, but have less of a proven track record specifically for Ford trucks.
- URO Parts: This brand typically focuses on parts for European vehicles, and there is little feedback on its performance in a Ford Lobo.
- True Tech: Likely a private-label or store brand, offering a low price point but with unknown long-term reliability.
Ford Lobo ABS Sensor Replacement Cost
The cost to replace an ABS sensor depends on the part brand you choose and whether you do the work yourself. The job is simple enough for most DIY mechanics.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $24 - $118 |
| New OEM (Motorcraft) Sensor | $70 - $100 (if available) |
| Shop Labor | $75 - $150 |
| Total Professional Repair | $99 - $268 |
Installation Tip
The hardest part of the job is often removing the old sensor. They are prone to rusting and seizing in the mounting hole. Spray the sensor with penetrating oil and gently twist and pry it out. Avoid breaking it off, as that will make the job much harder. Before installing the new sensor, clean the hole thoroughly and apply a small amount of grease to the new sensor's O-ring.
Frequently Asked Questions (FAQ)
Can I drive my Lobo with the ABS light on?
Yes, but with caution. Your standard braking system will still work, but the anti-lock feature is disabled. This means your wheels can lock up and skid in an emergency stop or on slippery surfaces, increasing stopping distance and reducing steering control. It is a safety risk that should be addressed promptly.
How do I know which sensor is bad?
The only way to know for sure is to have the ABS codes read with a proper scan tool. Most basic code readers cannot read ABS codes. A scanner will point to the exact sensor that has failed (e.g., 'C1145 - Right Front Wheel Speed Sensor Input Circuit Failure'). If you don't have a scanner, you can test the resistance of each sensor with a multimeter to find the one with an out-of-spec reading.
Is there a recall on the 1997-2009 Ford Lobo ABS sensor?
There are no direct recalls for the ABS wheel speed sensors themselves. However, there was a significant safety recall for 1997-2003 F-150 models concerning the ABS control module. Leaking brake fluid from the master cylinder could corrode the module's electrical connector, creating a fire risk. While this is not a sensor issue, it is a critical safety problem related to the ABS system on these trucks that owners should be aware of.
What's the difference between the front and rear sensors?
On these trucks, the front sensors are located at each wheel hub. The rear sensor is typically a single unit mounted on top of the rear differential housing, where it reads a tone ring inside the differential. The replacement procedure is slightly different for each. The rear sensor is often easier to access.
Technical Specifications

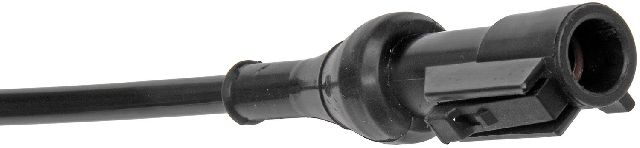

The ABS wheel speed sensor for the 1997-2009 Ford Lobo is a two-wire magnetic sensor. Front sensors are mounted at the wheel hub assembly, while the rear sensor is typically mounted on the rear axle differential housing. The physical design and wire length vary between front and rear locations and between 2WD and 4WD models.
