Engine Intake Manifold Gasket Set Guide for 1998-2000 Lexus GS400
Address rough idles and vacuum leaks by choosing the right intake manifold gasket for your V8-powered GS400.
- A failing intake manifold gasket on a GS400 typically causes a Check Engine Light with lean codes (P0171, P0174) and a rough idle.
- This is an advanced DIY repair; it requires removing the throttle body, fuel rails, and draining coolant.
- Since the starter is under the intake manifold, always replace these gaskets during a starter replacement to save on future labor.
- Victor Gaskets (Victor Reinz) is a well-regarded aftermarket brand known for quality, while Apex is a budget-tier option.
Is Your GS400 Showing Signs of a Bad Intake Manifold Gasket?
The gaskets that seal your intake manifold are made to last, but they can fail over time due to constant heat cycles. When they do, they can cause a range of problems from annoying to serious. A leak allows unmetered air into the engine, which the computer can't account for, leading to a lean running condition (too much air, not enough fuel). On the GS400's V8, a gasket failure can also lead to coolant leaks, either externally onto the engine or internally into the combustion chambers.
Common Symptoms of Failure:
- Rough or Unstable Idle: The engine may vibrate or idle erratically at a stop. This is often worse when the engine is stationary because vacuum is higher.
- Check Engine Light: A vacuum leak will almost always trigger a Check Engine Light with codes like P0171 (System Too Lean Bank 1) and P0174 (System Too Lean Bank 2).
- Hissing Sound: You may hear a distinct hissing noise from the engine bay as air is sucked through the broken gasket seal.
- Reduced Power and Fuel Economy: An incorrect air-fuel ratio reduces engine performance and makes it burn more fuel.
- Engine Overheating: If the gasket fails where it seals a coolant passage, leaking coolant can lead to the engine overheating.
Don't Ignore a Leaking Gasket
While you might be able to drive with a minor leak, it's not recommended. A significant vacuum leak can cause stalling, while a coolant leak can lead to severe engine damage from overheating. Addressing the issue promptly prevents more expensive repairs down the line.
Choosing an Aftermarket Gasket Set: Apex vs. Victor Gaskets
When replacing the intake manifold gaskets, you have a choice between OEM (Original Equipment Manufacturer) and aftermarket brands. For the 1998-2000 GS400, aftermarket options can provide good quality at a lower price point.
Victor Gaskets (Victor Reinz): Often considered a high-quality aftermarket brand, Victor Reinz is an OEM supplier for some European carmakers. Their gaskets are known for being made of soft, pliable rubber that seals well, even on surfaces that aren't perfectly flat. They are engineered to resist modern coolants and high engine temperatures. Many professional mechanics trust and use this brand.
Apex: Apex is generally viewed as a more budget-friendly option. While some users report positive experiences, it is not typically placed in the same quality tier as Victor Reinz or Fel-Pro. For a critical component like an intake manifold gasket on a high-performance engine like the 1UZ-FE, investing in a more reputable brand like Victor Gaskets is often the safer long-term choice.
Pro Tip: Starter Motor Replacement
The starter motor on the Lexus GS400 is located underneath the intake manifold. If you are replacing a failed starter, it is highly recommended that you replace the intake manifold gaskets at the same time, as the manifold must be removed to access the starter. This saves you from having to do the same labor twice.
Estimated Replacement Costs
The cost to replace the intake manifold gaskets can vary significantly based on labor rates in your area. The parts themselves are relatively inexpensive compared to the labor required to access them.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Gasket Set | $35 - $50 |
| New Aftermarket Gasket Set | $71 - $103 |
| Shop Labor | $268 - $394 |
| Total Professional Replacement | $626 - $751 |
Frequently Asked Questions (FAQ)
Is replacing the intake manifold gasket a DIY job?
This is considered an advanced DIY job. It requires draining the coolant, depressurizing the fuel system, and removing the air intake, throttle body, fuel rails, and numerous hoses and electrical connectors to get the manifold off. You will need a torque wrench to tighten the manifold bolts to the correct specification (13 ft-lbs) during reassembly. If you are not comfortable with this level of disassembly, it is best to leave it to a professional.
Are there any recalls for the 1998-2000 GS400 intake manifold gasket?
No, there are no recalls from the NHTSA related to the intake manifold gaskets for the 1998-2000 Lexus GS400.
Do I need any special sealants?
Generally, modern gaskets like those from Victor Reinz are designed to be installed on clean, dry surfaces without additional sealant. However, always refer to the instructions included with your specific gasket set or the vehicle's service manual. Some procedures may call for a small amount of RTV sealant at corners or joints.
What are the OEM part numbers for the GS400 intake manifold gaskets?
The primary OEM part number for the lower intake manifold to cylinder head gasket is 17171-50010, which was later superseded by 17171-50011. The upper intake manifold (plenum) gasket part number is 17116-50010. You will need two of the lower gaskets, one for each cylinder bank.
Technical Specifications
OEM Part Numbers: 17171-50010 17171-50011 17116-50010

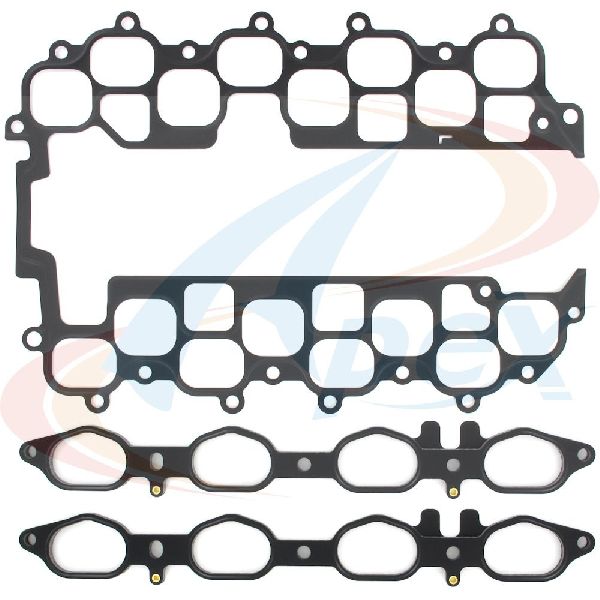

The 1998-2000 Lexus GS400 uses the 1UZ-FE V8 engine. The intake manifold gasket set consists of two lower gaskets sealing the manifold to the cylinder heads and one upper gasket for the plenum. The lower gaskets seal both air and coolant passages.
