1998-2001 Mazda B2500 Idle Air Control Valve: Diagnosis and Replacement Guide
Solve your B2500's stalling, rough idle, or high revving issues by understanding and choosing the right replacement Idle Air Control valve.
- A faulty IAC valve is a very common cause of stalling and erratic idle on the 1998-2001 Mazda B2500.
- Replacement is an easy, 20-minute DIY job requiring only basic hand tools.
- Symptoms are nearly identical to a vacuum leak, so always check hoses first.
- This engine can be sensitive; many owners recommend using an OEM (Motorcraft) or premium aftermarket (like Standard Ignition) part for best results.
Is Your B2500's Idle Acting Up? It Could Be the IAC Valve
If your 1998-2001 Mazda B2500 has started to idle erratically, stall when you come to a stop, or rev high for no reason, a failing Idle Air Control (IAC) valve is a very common cause. Over many miles, this part can get clogged with carbon or its internal motor can fail, causing it to stick open or closed. This guide will help you confirm the symptoms and choose the right new aftermarket part for a lasting repair.
Symptoms of a Failing IAC Valve
A bad IAC valve can make your truck difficult and sometimes unsafe to drive. Look for these common signs:
🎬 Watch: See and hear these common IAC failure symptoms in action.- Rough or Bouncing Idle: The engine RPMs fluctuate up and down when you are stopped.
- Stalling: The engine dies when you come to a stop, put the clutch in, or sometimes right after starting, especially when cold.
- High or "Hanging" Idle: The engine revs up to 2,000-3,000 RPM on its own, especially when shifting or coasting to a stop in neutral. The idle may only return to normal after the truck is at a complete stop for a few seconds.
- Howling Noise: Some owners report a strange howling or moaning sound coming from the engine bay at idle that goes away when they press the gas.
- Check Engine Light: While it doesn't always turn on, a failing IAC can trigger a Check Engine Light with codes like P0506 (Idle Air Control System RPM Lower Than Expected) or P1504 through P1509.
Choosing the Right Aftermarket IAC Valve
The 2.5L engine in the Mazda B2500 can be sensitive to the quality of electronic parts. While OEM is always an option, several aftermarket brands are available. They generally fall into two tiers.
Premium Aftermarket Brands
Standard Ignition (Standard Motor Products): This brand is widely considered a top-tier aftermarket option. It has a strong reputation for quality and reliability, often meeting or exceeding OEM standards. For a critical electronic part like the IAC valve, choosing a premium brand like Standard Ignition can help avoid the problems associated with cheaper parts.
Budget Aftermarket Brands
Holstein, True Tech, and other store brands: These brands offer a more affordable price point. However, owner experiences found in forums suggest that budget electronic parts can be a gamble. Some owners report that aftermarket valves on the 2.5L engine can cause new problems, like extreme RPM surges, or fail prematurely. While a budget part may work, be aware of the risk that you may have to do the job again sooner than you'd like.
Cost to Replace a 1998-2001 Mazda B2500 IAC Valve
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket IAC Valve | $54 - $95 |
| New OEM (Motorcraft) IAC Valve | $80 - $150+ |
| Shop Labor | $50 - $100 |
| DIY Total Cost | $54 - $95 |
| Shop Total Cost | $104 - $250+ |
Frequently Asked Questions (FAQ)
Can I just clean my old IAC valve?
Yes, and it's a good first step. You can remove the valve and use throttle body or carburetor cleaner to remove carbon buildup from the ports. Be careful not to spray the solvent into the electrical connector part. However, this is often a temporary fix. If the problem returns, the valve's internal motor is likely failing and the part needs to be replaced.
🎬 See how to clean your IAC valve and throttle body properly.Is replacing the IAC valve a difficult DIY job?
No, this is one of the easiest repairs you can do. The IAC valve is located on the throttle body and held on by just two bolts (usually 8mm or 10mm) and one electrical plug. Most people with basic hand tools can change it in less than 20 minutes.
🎬 Watch this quick walkthrough of the IAC valve replacement process.Are there any recalls for this part?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no safety recalls for the Idle Air Control valve on the 1998-2001 Mazda B2500 or its Ford Ranger twin.
Do I need to do an "idle relearn" procedure after replacement?
It's a good idea. After installing the new valve, you can disconnect the negative battery terminal for about 15 minutes. This resets the engine computer. After reconnecting it, start the truck and let it idle for several minutes (some suggest letting it idle with the A/C on and off) to allow the computer to learn the characteristics of the new valve.
Helpful Videos

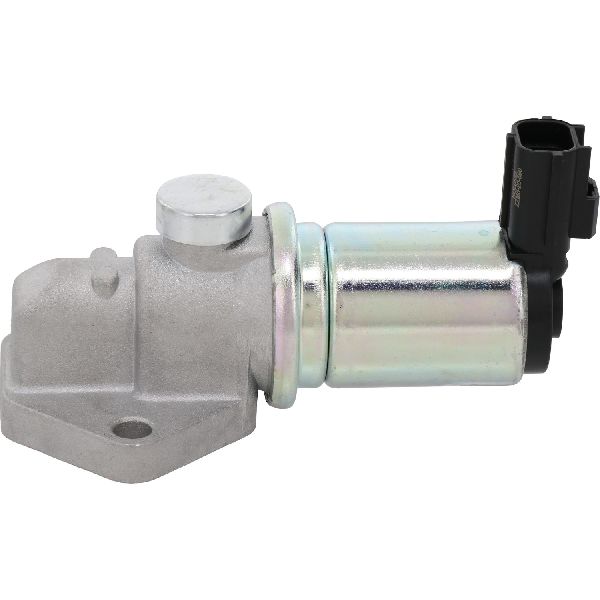

Technical Specifications
OEM Part Numbers: CX1654 96TF-9F715-AB 4F1Z-9F715-AA
2-bolt mount, 2-pin electrical connector. Mounts to the throttle body.
