A Guide to the Engine Oil Pan Gasket for the 1998-2002 Ford E-150 Econoline
Stop that messy oil leak from the bottom of your Econoline's engine by choosing the right replacement gasket.
- This is a very difficult repair on the E-150 because the engine must be lifted to remove the oil pan.
- Before starting this job, confirm the leak is not from the easier-to-fix oil filter adapter gasket, a common issue on these engines.
- Due to the high labor cost, using a premium aftermarket gasket from a brand like Fel-Pro or Reinz is highly recommended.
- You must order the correct gasket for your specific engine (4.2L V6, 4.6L V8, or 5.4L V8) as they are not interchangeable.
Is Your Econoline Leaking Oil? Signs of a Bad Oil Pan Gasket
When an oil pan gasket fails, it can no longer hold a perfect seal. Because it's at the very bottom of the engine, gravity makes leaks obvious. Look for these common symptoms:
- Oil Drips on the Ground: The most common sign is a puddle or stain of dark brown or black oil on the pavement directly under your engine.
- Burning Oil Smell: If oil leaks onto the hot exhaust pipes while you're driving, it will burn off, creating a distinct and unpleasant smell.
- Low Oil Warning Light: A significant leak will lower the oil level in your engine, which can trigger the oil pressure or low oil level light on your dashboard. If this light comes on, you should stop driving and check your oil level immediately.
- Oily Undercarriage: At highway speeds, wind can blow the leaking oil all over the bottom of your van. This is often called "blowback" and can make a big mess.
Job Difficulty: This is Not a Simple Repair
Replacing the oil pan gasket on a 1998-2002 E-150 is a very difficult and time-consuming job. Unlike on many other vehicles, you cannot simply unbolt and remove the oil pan. The front frame crossmember blocks the pan from dropping down. To get the clearance needed, the engine must be unbolted from its mounts and lifted several inches. This is a major job that requires special equipment like an engine hoist or lift and is not recommended for beginners. One DIY mechanic with access to a professional shop lift called it the "HARDEST job I've ever done," taking 13 hours.
Choosing the Right Aftermarket Gasket Brand
Because the labor for this job is so intensive, it's wise to choose a quality gasket to avoid having to do the work twice. The price of the part itself is very small compared to the cost of labor. Here’s a breakdown of common aftermarket brands.
- Premium Aftermarket (Fel-Pro, Reinz): Fel-Pro is a highly trusted name in the aftermarket and is known for making reliable, high-quality gaskets that meet or exceed OEM standards. Victor Reinz is another top-tier brand, often known for making parts for European cars, but their gaskets are also considered excellent quality for domestic vehicles. For a difficult job like this, spending a little more on a premium brand is a smart investment.

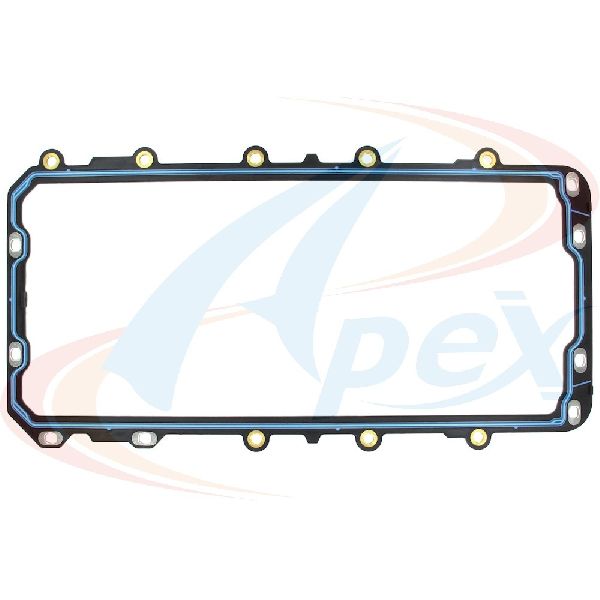

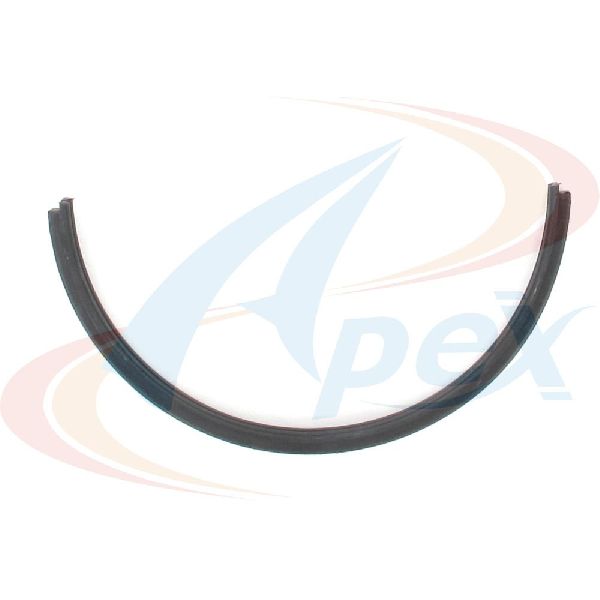

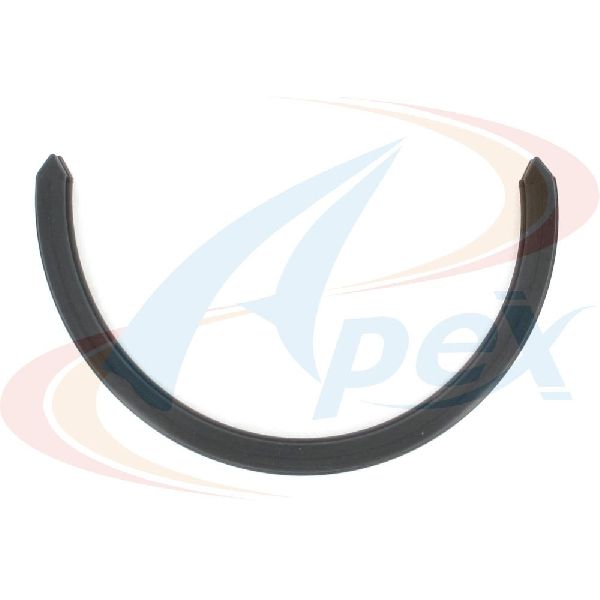

- Standard/Budget Aftermarket (Apex): Apex is generally considered a budget-friendly brand. While some users have had positive experiences, they are typically not viewed in the same quality tier as Fel-Pro or Reinz. Given the difficulty of this specific repair, saving a few dollars on the gasket itself may not be worth the risk.
Pro Tip: Check the Oil Filter Adapter First!
On Ford's V8 engines from this era, a common source of oil leaks is the oil filter adapter gasket. This is the component that your oil filter screws onto. A leak from this gasket can run down the side of the engine and drip from the bottom, making it look exactly like a leaking oil pan gasket. Before committing to the difficult job of replacing the oil pan gasket, thoroughly clean the engine and inspect the area around the oil filter adapter for any signs of fresh oil. Replacing the adapter gasket is a much easier and cheaper job.
Cost to Replace the Engine Oil Pan Gasket on a 1998-2002 E-150
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $10 - $57 |
| New OEM Gasket Set | $136 - $156 |
| Shop Labor | $866 - $1,271 |
| Total Professional Replacement | $1,003 - $1,426 |
Frequently Asked Questions (FAQ)
Can I replace the oil pan gasket myself?
This is not recommended for a DIY mechanic unless you are very experienced and have an engine hoist and a vehicle lift. The engine must be lifted to get the oil pan out, which is a complex and potentially dangerous task. Most owners should have this repair performed by a professional shop.
Do I need to use RTV sealant with the new gasket?
Most modern one-piece gaskets, like those from Fel-Pro, are designed to be installed dry. However, it is standard practice to apply a small dab of RTV sealant at the points where the engine front cover meets the engine block and where the rear main seal carrier meets the block. This helps seal the small joints. Always follow the specific instructions included with your new gasket set.
What engine oil should I use after replacing the gasket?
For the 1998-2002 Ford E-150 with either the 4.6L or 5.4L V8 engine, the recommended oil is typically a 5W-20 or 5W-30 motor oil. Always check your owner's manual to confirm the correct viscosity and oil type for your specific engine and climate.
Are there any recalls for this problem?
No. There are no recalls or specific Technical Service Bulletins (TSBs) from Ford for a leaking oil pan gasket on the 1998-2002 E-150 Econoline.
Technical Specifications
Gasket material is typically a one-piece molded rubber or silicone design. The specific part number depends on the engine installed in the van (4.2L V6, 4.6L V8, or 5.4L V8).
