A Comprehensive Guide to the 1998-2002 Mazda 626 Spark Plug Wire Set
Everything a 626 owner needs to know about replacing old, failing spark plug wires.
- Confirm if your Mazda 626 has the 2.0L I4 or 2.5L V6 engine before buying.
- Symptoms like rough idle, hesitation, and misfires are common signs of failing wires.
- High-quality aftermarket brands like NGK and Denso are excellent, OEM-equivalent choices for this vehicle.
- It is highly recommended to replace the spark plugs at the same time as the wires for best results.
Is it time to replace your Mazda 626 spark plug wires?
If you're experiencing engine misfires, a rough idle, or poor acceleration, your spark plug wires could be the culprit. On the 1998-2002 Mazda 626, these wires live in a hot engine bay and wear out over time. The insulation breaks down from heat and vibration, causing the electrical energy to weaken or arc to the engine block instead of reaching the spark plug. This leads to a weak or inconsistent spark, which can cause a range of drivability problems and even trigger your check engine light.
🎬 Watch: 6 common symptoms of bad spark plug wiresEngine-Specific Parts
The 1998-2002 Mazda 626 was available with two different engines: a 2.0L 4-cylinder (I4) and a 2.5L V6. The spark plug wire sets for these engines are not interchangeable. The V6 requires a set with six wires of different lengths, while the I4 uses a four-wire set. Always confirm your engine type before ordering to ensure you get the correct part.
🎬 See this DIY guide for changing your 626 wiresChoosing the Right Aftermarket Spark Plug Wires
For a vehicle of this age, you don't need to go to a Mazda dealer for a quality wire set. Aftermarket brands offer excellent quality, often meeting or exceeding the original specifications. Here’s how the available brands generally stack up for your 626.
Tier 1: OEM-Equivalent Quality
These brands are known to be original equipment manufacturers for many Japanese vehicles and are widely trusted for their fit and performance.
- NGK: Often considered the gold standard for Japanese ignition parts. NGK wires are known for their high-quality construction, proper fit, and reliable performance, making them a top choice for the Mazda 626.
- Denso: Another top-tier Japanese brand that is a direct competitor to NGK. Denso provides OEM-quality wire sets that are an excellent choice for ensuring your 626 runs as it should.
Tier 2: Reputable Aftermarket Brands
These brands are known for producing reliable parts that offer a great balance of quality and value.

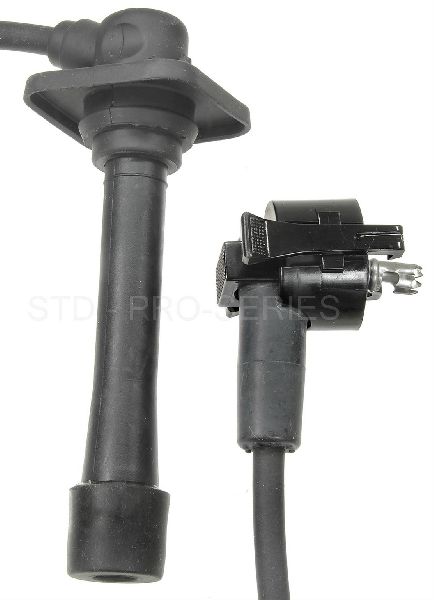

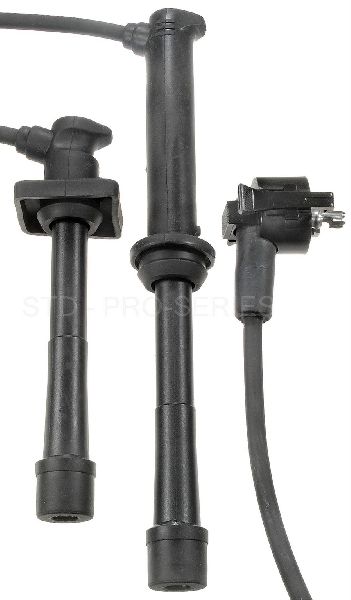

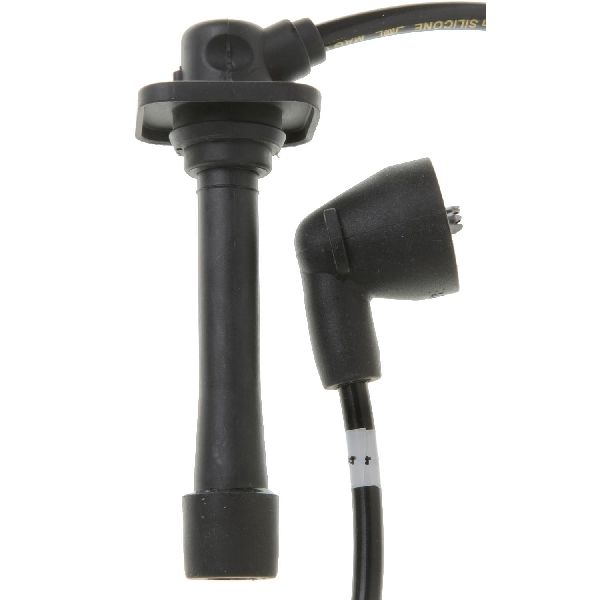

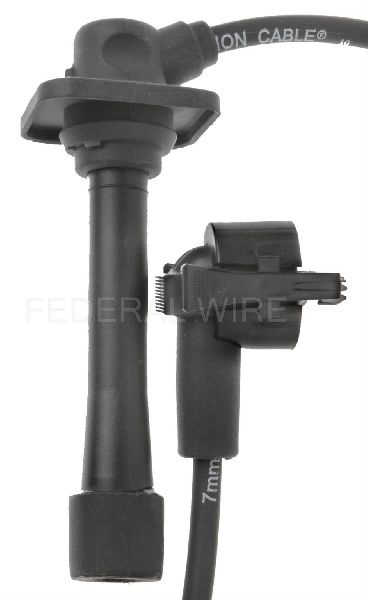

- Standard Motor Products (SMP): A well-respected brand in the aftermarket, often praised for making durable, direct-fit replacement parts that work well.

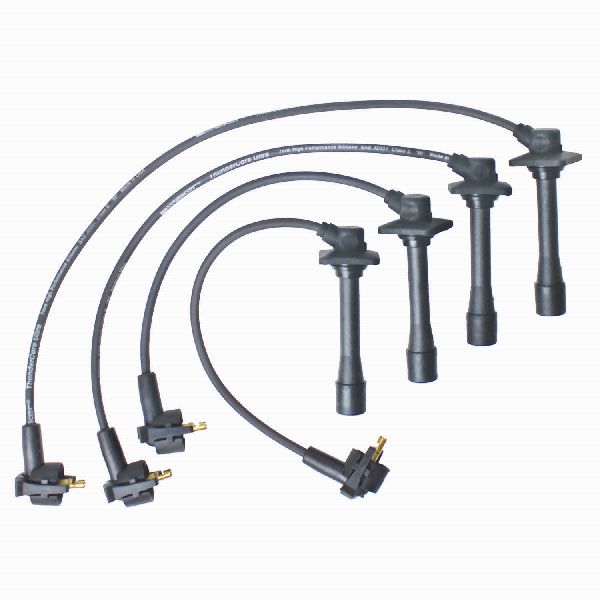

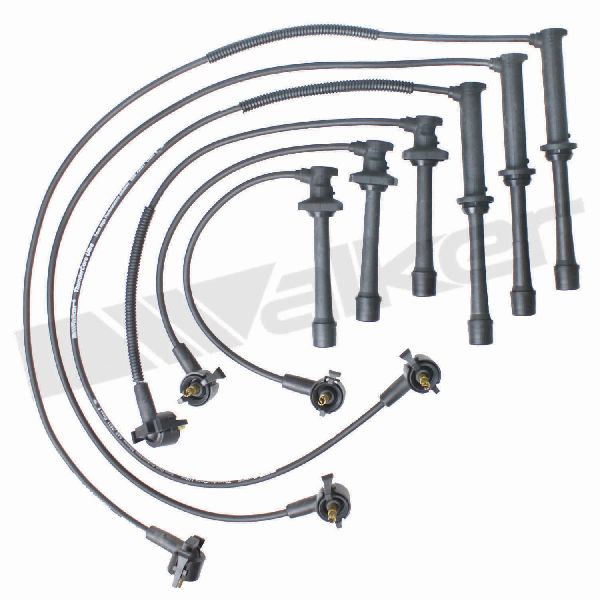

- Walker Products: Walker offers their "ThunderCore" wire sets, which are marketed as meeting or exceeding OEM specs with features like high-temperature silicone boots and Kevlar-reinforced cores for durability.
Tier 3: Performance-Focused
This brand focuses on delivering maximum electrical energy for a slight performance edge.
- Granatelli: This brand is for the owner looking for a performance upgrade. Granatelli wires boast near-zero resistance to deliver more energy to the spark plug. While some users on other platforms report smoother idling and better throttle response, the performance gains on a stock engine may be minimal.
Pro Tip: Replace Plugs and Wires Together
If your spark plug wires are old enough to have failed, your spark plugs are likely due for replacement as well. Misfire issues on the 626 are often caused by either plugs or wires, so replacing them as a set is a smart move. 🎬 Watch: How to install new spark plugs and wires together This is especially true for the V6 engine, where accessing the rear bank of cylinders is labor-intensive.
Cost of a New Spark Plug Wire Set (1998-2002 Mazda 626)
| Part Type | Typical Price Range |
|---|---|
| New Aftermarket (NGK, Denso, Standard, Walker) | $55 - $128 |
| New OEM (Mazda) | $160 - $205 |
Frequently Asked Questions (FAQ)
Were there any recalls or TSBs for the 626 spark plug wires?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database and other technical resources show no specific recalls or Technical Service Bulletins (TSBs) for the spark plug wire set on the 1998-2002 Mazda 626.
How do I know if I have the 4-cylinder or V6 engine?
The easiest way is to check the emissions label under your hood, which will state the engine size (2.0L or 2.5L). You can also visually inspect the engine. If you see one valve cover with four spark plug wires coming from a coil pack, you have the 4-cylinder. If you see two valve covers (one in the front, one in the back) and a distributor or coil packs for six cylinders, you have the V6.
Can I replace just one bad wire?
While you can, it's not recommended. Spark plug wires are exposed to the same conditions and tend to degrade at a similar rate. If one has failed, the others are likely not far behind. It is best practice to replace them as a complete set to ensure balanced ignition performance.
Do these wires come with dielectric grease?
Some brands, like Walker, may include a small packet of dielectric grease. However, many do not. It is highly recommended to purchase a small tube of dielectric grease separately. Applying a small amount to the inside of each boot helps seal out moisture, prevents corrosion, and makes future removal much easier.
Helpful Videos
Technical Specifications
OEM Part Numbers: KLG4-18-140A 0000-18-150A 0000-18-128A
Vehicle-specific fit for 1998-2002 Mazda 626. Separate sets for 2.0L I4 and 2.5L V6 engines. Wires are typically constructed with a silicone outer jacket and feature suppression cores to prevent radio frequency interference (RFI).
