Oldsmobile Intrigue Vehicle Speed Sensor: A Guide for 1998-2002 Models
If your Intrigue's speedometer is acting up or the transmission is shifting harshly, the vehicle speed sensor is a likely culprit.
- A bad VSS on the Intrigue causes erratic shifting, speedometer failure, and disables cruise control.
- Confirm you are replacing the Vehicle Speed Sensor (VSS) on the transmission, not the Wheel Speed Sensors (WSS) at the wheels.
- Replacement is a simple DIY task that can be done in about an hour with basic tools.
- Check if your vehicle is affected by the unrelated but critical fire-risk recall for oil leaks on 3.8L models.
Is It the Vehicle Speed Sensor or a Wheel Speed Sensor?
Before buying parts, it's important to know the difference between two similarly named sensors on your Intrigue. The Vehicle Speed Sensor (VSS) is located on the transmission and is the main topic of this article. It primarily controls the speedometer and transmission shifting. In contrast, Wheel Speed Sensors (WSS), also called ABS sensors, are located at each wheel. A problem with a WSS will usually trigger the ABS and Traction Control warning lights. On the Intrigue, a bad front WSS often requires replacing the entire wheel hub assembly. This guide focuses only on the VSS located on the transmission.
Symptoms of a Failing Vehicle Speed Sensor
A bad VSS will give you clear signs that something is wrong. The most common issues include:
- Harsh or Erratic Shifting: The transmission may slam into gear, shift at the wrong times, or seem to hunt for the right gear. This is because the transmission controller doesn't have the correct speed information to make smooth shifts.
- Inaccurate or Dead Speedometer: The speedometer needle might jump around wildly, read a much lower speed than you are traveling, or not move at all.
- Cruise Control Not Working: If the car's computer doesn't know how fast the vehicle is going, it cannot engage or maintain the cruise control system.
- Check Engine Light: A failing VSS will often trigger the Check Engine Light. A common trouble code associated with this is P0502, which indicates a low input signal from the sensor.
Important Safety Recall Information
While not related to the speed sensor, many 1998-1999 Oldsmobile Intrigues with the 3.8L V6 engine were part of a safety recall (NHTSA #15V-701). This recall addresses a problem where engine oil can leak onto the hot exhaust manifold, creating a risk of an engine fire. It is highly recommended to check with a GM dealer or use the NHTSA website to see if your vehicle has had this critical recall service performed.
Choosing the Right Aftermarket VSS
For a vehicle like the 1998-2002 Intrigue, aftermarket parts offer a sensible and cost-effective solution. OEM parts can be expensive and hard to find. Here is a breakdown of the available aftermarket brands:
- Premium Brands (Delphi): Delphi was an original equipment manufacturer for General Motors, so their parts are often considered the same quality as the original. Choosing Delphi gives you a high degree of confidence in the fit and long-term reliability of the sensor.
- Mid-Grade Brands (Standard Ignition, Walker Products): Brands like Standard Motor Products (SMP) and Walker are well-known in the aftermarket industry. They produce reliable parts that meet or exceed OEM specifications and offer a good balance of quality and price.
- Economy Brands (Dorman, Global Parts): These brands provide a budget-friendly option. While they can be a good choice for a less expensive repair, quality can sometimes be inconsistent compared to premium brands. However, for a simple sensor, they are often a perfectly acceptable solution.
Cost of Replacing the Vehicle Speed Sensor
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $23.33 - $76.90 |
| Shop Labor | $73 - $107 |
| Total Estimated Cost (DIY) | $23.33 - $76.90 |
| Total Estimated Cost (Shop) | $96 - $184 |
Pro Tip: A Simple DIY Job
Replacing the VSS on an Intrigue is a straightforward job that most DIY mechanics can handle in under an hour. The sensor is held to the transmission by a single bolt (usually 8mm or 10mm). You will need to safely jack up the vehicle and remove the passenger-side front wheel for the best access. After unplugging the electrical connector and removing the bolt, the old sensor pulls out. A small amount of transmission fluid may drip out, so be prepared.
Frequently Asked Questions
Can I drive my Intrigue with a bad vehicle speed sensor?
You can, but it is not recommended for long. The car will have harsh, unpredictable shifting which can put extra stress on your transmission. Also, having an inaccurate speedometer is a safety risk, as you may not know your true speed.
Will replacing the VSS fix my ABS or Trac Off light?
No. The VSS is not connected to the ABS or traction control systems. Those warning lights are typically caused by a faulty Wheel Speed Sensor (WSS) or an issue with the ABS module itself.
Is it the VSS or a bad transmission solenoid?
The 4T65-E transmission in the Intrigue is also known for problems with the Pressure Control Solenoid (PCS), which can also cause hard shifting. However, a bad PCS will not typically affect the speedometer. If you have both hard shifting AND a faulty speedometer, the VSS is the most likely cause. If you only have shifting problems, further diagnosis is needed.
Do I need to clear the Check Engine Light after replacement?
Yes. After replacing the sensor, the Check Engine Light will need to be cleared using an OBD-II scanner. Most auto parts stores offer this service for free. Alternatively, you can disconnect the battery for about 15 minutes to reset the computer, but using a scanner is the preferred method.

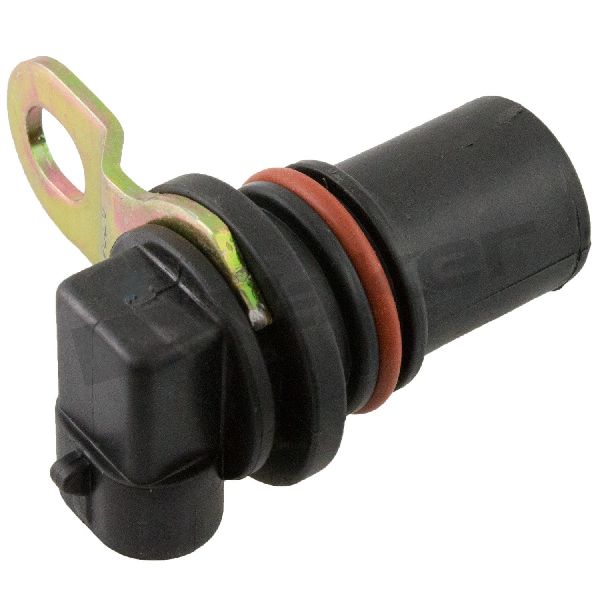

Technical Specifications
Located on the automatic transaxle. Typically secured with one 8mm or 10mm bolt. Features a 2-pin electrical connector.
