A Mechanic's Guide to the 1998-2003 Dodge Durango Engine Cylinder Head Bolt Set
If you're replacing the head gaskets on your Durango, replacing the head bolts isn't optional—it's required.
- Head bolts for this Durango are Torque-to-Yield (TTY) and MUST be replaced anytime the cylinder heads are removed.
- Symptoms like overheating, white exhaust smoke, and milky oil point to a failed head gasket, which requires bolt replacement.
- Quality aftermarket brands like Victor Reinz are a reliable and common choice for this job, offering OEM-equivalent performance.
- The replacement is a complex, high-labor job not recommended for DIY beginners; proper torque sequence is critical.
Understanding Head Bolt Failure on Your Durango
Cylinder head bolts themselves rarely fail on their own. Instead, they are a mandatory replacement item whenever the cylinder heads are removed, most commonly for a head gasket replacement. The original bolts used in your Durango's engine are Torque-to-Yield (TTY) bolts. This means they are designed to be permanently stretched one time during installation to achieve a precise clamping force. Once they are removed, they are distorted and cannot be reused. Attempting to reuse old head bolts will result in an improper seal, leading to immediate head gasket failure, coolant leaks, and potentially severe engine damage.
Symptoms That Mean You Need New Head Bolts
You won't see symptoms of bad head bolts directly. You will see symptoms of a blown head gasket, which then requires a new set of bolts. Watch for:
🎬 Watch: See these head gasket failure symptoms on a Dodge- Engine Overheating: This is a classic sign, as combustion gases can leak into the cooling system or coolant can leak out.
- White Smoke from Exhaust: Sweet-smelling white smoke indicates coolant is burning in the cylinders.
- Milky Engine Oil: If you check your dipstick and the oil looks like a coffee milkshake, 🎬 Watch: How to spot telltale signs of a bad gasket coolant is mixing with your oil. This is a critical symptom that requires you to stop driving the vehicle.
- Unexplained Coolant Loss: If you're constantly adding coolant but can't find an external leak, it may be leaking into the cylinders.
- Bubbling in Coolant Reservoir: Exhaust gases being forced into the cooling system can cause visible bubbling in the overflow tank.
Choosing the Right Aftermarket Head Bolt Set
For a critical part like head bolts, quality is not the place to save a few dollars. Since OEM bolts are also single-use, a new set from a reputable aftermarket manufacturer is a reliable and cost-effective choice. The focus should be on brand reputation, not trying to find the cheapest option.
| Brand Tier | Brands | Our Price Range | Notes |
|---|---|---|---|
| OEM-Quality Aftermarket | Reinz, Victor Gaskets | $35.97 - $89.22 | Victor Reinz is a well-respected brand that supplies parts directly to car manufacturers. They are known for meeting exact specifications and are a trusted choice for this repair. |
| Performance Aftermarket | Edelbrock | $45.00 - $89.22 | Edelbrock is famous for high-performance engine parts. While they are a top-tier brand, they are more commonly associated with engine upgrades rather than standard replacements. An Edelbrock set would be an excellent, if sometimes unnecessary, choice for a stock engine rebuild. |
| Standard Aftermarket | Various | $25.58 - $38.97 | This tier includes many other brands. While more affordable, it is crucial to ensure they are specified as TTY bolts and meet OEM requirements. Given the high labor cost of the job, saving a small amount on the bolts themselves is generally not recommended. |
Frequently Asked Questions
Can I reuse my old head bolts?
No. The 1998-2003 Dodge Durango uses Torque-to-Yield (TTY) bolts. They are designed to permanently stretch when torqued and cannot provide the correct clamping force if reused. You must use a new set.
Do I need to follow a special tightening pattern?

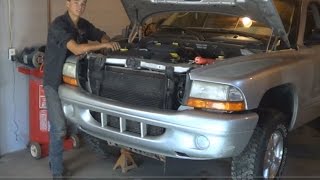

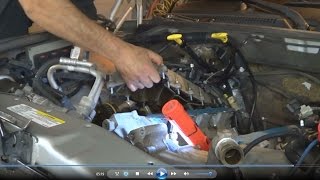

Yes. A specific tightening sequence and multi-stage torque procedure 🎬 Watch: A step-by-step guide to installing Dodge cylinder heads is absolutely critical. This usually involves tightening to a certain foot-pound value, followed by one or two additional turns of a specific angle (e.g., 90 degrees). These instructions are included with new bolt sets and must be followed precisely to avoid warping the head or damaging the new gasket.
Are there any recalls on Durango head bolts?
No, there are no recalls or specific Technical Service Bulletins (TSBs) from Dodge or the NHTSA for engine cylinder head bolts on the 1998-2003 Durango.
Do these bolts come with assembly lube?
Some kits may include a small packet of assembly lubricant, but many do not. The factory service procedure often calls for lubricating the threads with clean engine oil before installation. Always check the instructions that come with your specific bolt set.
Helpful Videos
Technical Specifications
Torque-to-Yield (TTY) design. Multiple engine sizes were available (4.7L V8, 5.2L V8, 5.9L V8), so ensure the bolt set matches your specific engine. The 4.7L V8, for example, uses a combination of ten M10 bolts and four smaller M8 bolts per head.
