Dodge Ram 2500 Van Door Lock Switch Guide (1998-2003)
Having trouble with your power locks? This guide helps you diagnose and fix issues related to the door lock switch on your Dodge Ram Van.
- Before buying parts, check for broken wires in the rubber boot between the door and the vehicle body, a very common failure point.
- Randomly cycling locks are often caused by moisture in the key cylinder switch, as noted in TSB 08-023-03.
- Confirm if you need the driver's side (master) or passenger side switch, as they are different parts.
- Standard Ignition is a reputable aftermarket brand that offers a cost-effective replacement for this part.
Is Your Door Lock Switch Failing?
When the door lock switch in your 1998-2003 Dodge Ram 2500 Van starts to fail, it can cause several frustrating symptoms. You might find that the power locks don't respond at all, or they only work some of the time. In other cases, a single switch might fail to operate any of the locks, while the switch on the other door works perfectly fine. This usually points to a problem with the switch itself or its wiring.
A Note on "Haunted" Door Locks
A widely reported issue for this generation of Dodge vans and trucks is door locks that cycle on their own, locking and unlocking randomly. This can happen while driving or when the van is parked, potentially draining your battery. While a faulty door lock switch can be the cause, this problem is often linked to moisture getting into the door lock cylinder switches (the part where your key goes in). Dodge issued Technical Service Bulletin (TSB) 08-023-03 for this exact issue, recommending the replacement of the lock cylinder switches with revised parts. Before replacing the main door switch for this symptom, it's wise to consider if the lock cylinder switch is the true culprit, especially if the problem is worse in damp weather.
Choosing the Right Aftermarket Switch
For a vehicle of this age, an aftermarket door lock switch is a practical and affordable choice. The main brand available for this part is Standard Ignition (Standard Motor Products). Standard is a well-known aftermarket manufacturer that produces parts designed to meet or exceed original equipment (OE) specifications. They are generally considered a reliable option for replacement electrical components, offering a good balance of quality and value.

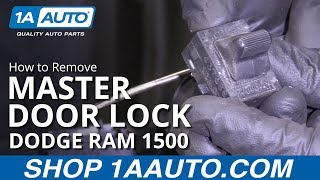

Pro Tip: Before ordering, double-check which switch you need. There are different parts for the driver's side and the passenger's side. The driver's side is a more complex master switch, 🎬 See how to replace the master door lock switch yourself. while the passenger's side is simpler. Mismatched connectors are a common issue when ordering the wrong part.
Common Ordering Mistakes
- Ignoring Position: Ordering a passenger side switch for the driver's door or vice-versa. The connectors and functions are different.
- Confusing Switch and Actuator: The switch is the button you press. The actuator is the motor inside the door that moves the lock. If you hear a clicking sound inside the door when you press the switch but the lock doesn't move, the actuator is more likely the problem.
- Overlooking Wiring: A common failure point on these vans is broken wires inside the rubber boot between the door and the van's body. 🎬 Watch this guide to troubleshooting common wiring and switch issues. Always inspect this area for damage before buying parts, as a simple wiring repair might be all that's needed.
Cost to Replace Dodge Ram 2500 Van Door Lock Switch
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard Ignition) | $47 - $54 |
| New OEM (Mopar) | $90 - $150 |
| Used OEM | $25 - $60 |
| Shop Labor | $100 - $150 |
Frequently Asked Questions
Is replacing the door lock switch a DIY job?

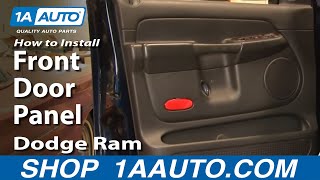

Yes, for most people with basic tools. The process involves removing the door panel, which is held on by a few screws and clips. 🎬 Watch a step-by-step walkthrough of the door panel removal process. Once the panel is off, the switch can be unplugged and replaced. The entire job can typically be done in under an hour.
What tools do I need?
You will likely need a set of plastic trim removal tools to avoid scratching the door panel, a Phillips head screwdriver, and possibly a Torx driver. A 10mm socket may also be required for the door handle assembly.
Why does only one door lock not work?
If only a single door fails to lock or unlock with the switch, the problem is most likely the door lock actuator in that specific door, not the switch itself. It could also be a broken wire leading to that door.
Are there any recalls for this issue?
No, there are no active NHTSA recalls for the power door lock system on the 1998-2003 Dodge Ram 2500 Van. However, a Technical Service Bulletin (TSB) was issued for related symptoms.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56045010AA (Passenger Side)
