Ford E-150 Econoline Engine Cooling Fan Clutch Guide (1998-2003)
Is your van overheating in traffic or making a loud roaring noise? Your fan clutch might be the problem.
- Engine overheating at idle is the most critical symptom of a failing fan clutch.
- A loud roaring noise that never goes away means the clutch is seized, hurting fuel economy and performance.
- Aftermarket brands like Hayden are popular, but may be louder than the original Ford part.
- Replacement requires a special tool set that can often be rented from auto parts stores.
Is Your E-150 Econoline Fan Clutch Failing?
A bad fan clutch on your Ford van can cause some distinct and concerning symptoms. Because this part is so important for engine cooling, especially on a heavy vehicle like the E-150, catching a failure early is key to avoiding expensive engine repairs. Pay close attention to how your van behaves at idle or in slow traffic, as this is where a failing clutch often reveals itself.
Key Failure Symptoms:
- Engine Overheating at Low Speeds: This is the most critical sign. If your temperature gauge climbs in traffic but cools down once you're moving at highway speed, the fan clutch is likely not engaging to pull air through the radiator when needed.
- Loud Roaring Noise: A fan clutch that is seized or stuck in the 'on' position will cause a loud, continuous roaring or "jet engine" sound from the engine bay that rises with RPMs. This also hurts fuel economy and engine power because the fan is always drawing energy.
- Fan Freewheels or Wobbles: With the engine OFF, try to spin the fan blade by hand. If it spins with almost no resistance (more than 1-2 rotations), the internal fluid has likely leaked out. If you can grab the fan and wobble it back and forth (toward the engine and radiator), the internal bearing is shot. 🎬 Watch this video to see how to test your fan.
- Poor A/C Performance at Idle: The A/C condenser sits in front of the radiator and also needs airflow to work correctly. If your A/C gets warm when you're stopped but cools down when you start driving again, it can be a sign of poor airflow from a failing fan clutch.
Choosing the Right Aftermarket Fan Clutch
For the 1998-2003 E-150, you have several aftermarket options. While a Motorcraft (Ford's OEM brand) part is often considered the benchmark for fit and quiet operation, quality aftermarket parts can offer significant savings. However, be aware that some budget parts can be overly aggressive, leading to excessive fan noise even when the engine is cool.
Aftermarket Brand Tiers (Based on Owner Feedback):

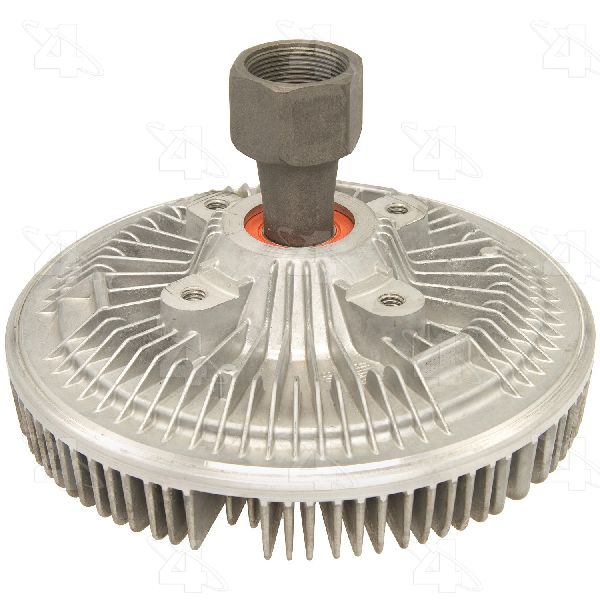

- Tier 1 (Often Recommended): Hayden is a well-known brand that invented the duty-rating system (Standard, Heavy-Duty, Severe-Duty). They are frequently used on trucks and vans and have a generally positive reputation, though some users have experienced issues with noise or premature failure.
- Tier 2 (Good Value): GMB and US Motor Works are also common choices. Forum discussions show mixed but generally acceptable experiences, with some users finding them to be reliable alternatives to more expensive brands.

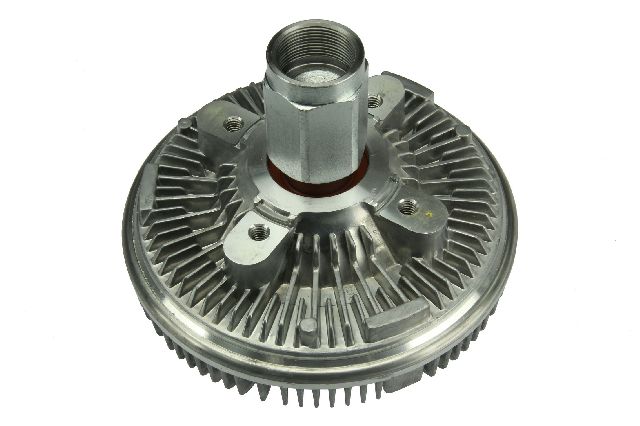

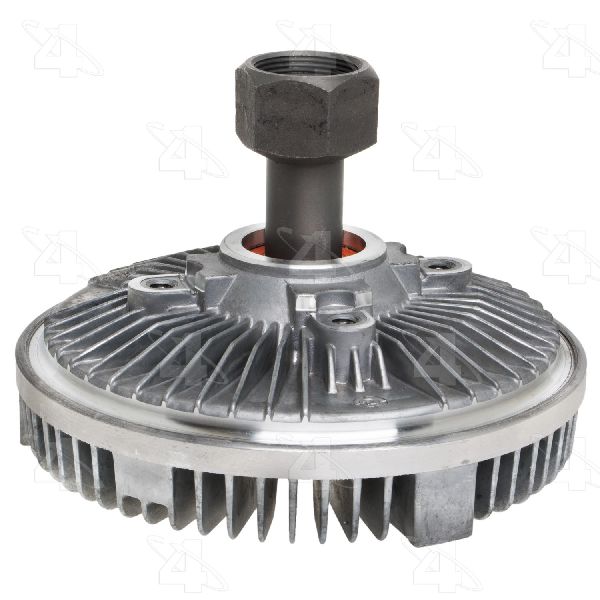

- Tier 3 (Budget Options): Brands like Four Seasons, Global Parts, and URO Parts are often the most affordable. While they can be a good value, some owners have reported issues like loud noise or early failure, sometimes requiring multiple replacements.
Pro Tip: Many E-150 Econoline vans came with a "Severe Duty" or "Heavy Duty" clutch from the factory, especially if equipped with a tow package or A/C. When replacing, it's best to match this duty cycle to ensure proper cooling under load. Check your specific application, but a Severe Duty clutch is often a safe bet for these vans.
| Part Type | Estimated Cost |
|---|---|
| New OEM (Motorcraft) | $95 - $150+ |
| New Aftermarket | $71.84 - $114.62 |
| Shop Labor | $155 - $255 |
Frequently Asked Questions (FAQ)
Is it hard to replace the fan clutch on a 1998-2003 E-150?
The replacement is moderately difficult, mainly due to the tight space in the van's engine compartment. It requires a special fan clutch tool set (which can often be rented for free from auto parts stores) to hold the water pump pulley while loosening the large nut. The fan shroud will also need to be removed. Many DIYers find it manageable in a few hours.
🎬 See a step-by-step guide on replacing the fan clutch.Are there any recalls for the fan clutch on these vans?
A search of the NHTSA database shows no specific safety recalls for the engine cooling fan clutch on the 1998-2003 Ford E-150 Econoline. Recalls found were for different model years or different components.
What is a "reverse rotation" fan clutch?
This simply refers to the direction the clutch is designed to spin. For this generation of Ford vans, a "reverse rotation" (counter-clockwise) clutch is required. All the listed aftermarket brands for your vehicle will be the correct rotation.
My new aftermarket fan clutch is really loud. Is it bad?
Not necessarily. Many aftermarket clutches, especially heavy-duty or severe-duty models, are more aggressive than the original OEM part. They may engage more often or with more force, creating a louder "roaring" sound. If the noise is constant and never quiets down after the engine warms up, or if you have other symptoms, the part could be faulty. But some increased noise compared to a worn-out or failing original is common.
Should I replace the water pump at the same time?
Since the fan clutch threads onto the water pump shaft, you'll already have done much of the labor. If your van has high mileage or if you notice any wobble or play in the water pump pulley itself, it is a good preventative measure to replace the water pump at the same time. A failing fan clutch bearing can also put stress on the water pump bearing, causing it to fail soon after.
Helpful Videos
Technical Specifications
OEM Part Numbers: F2UZ-8A616-F YB-3041
Reverse Rotation, Thermal Clutch. Severe Duty recommended for vehicles with A/C or towing packages.
