Ford Escort Engine Camshaft Position Sensor Guide (1998-2003)
If your Escort is stalling or won't start, the camshaft position sensor is a likely culprit.
- A failing sensor is a top cause for a 1998-2003 Escort that cranks but won't start or stalls intermittently.
- The most common trouble code is P0340; always check the wiring and connector for damage before replacing the part.
- This is an easy and inexpensive DIY repair, usually requiring only one bolt to be removed.
- For long-term reliability, choose a trusted aftermarket brand like Delphi or NGK over the cheapest available option.
Is Your Escort Stalling or Running Rough? It Could Be the Camshaft Sensor.
For the 1998-2003 Ford Escort, including the standard 2.0L SPI and the ZX2 Zetec models, a failing camshaft position sensor is a common problem that can cause serious driving issues. When this sensor starts to go bad, it can leave you stranded. Because it controls your engine's timing, a bad signal can make the engine run poorly or not at all. The most common trouble code associated with this failure is P0340, which points to a problem in the sensor's circuit.
🎬 See how to diagnose a P0340 circuit malfunction code.Don't Ignore the Check Engine Light
A Check Engine Light with code P0340 means the engine's computer has detected a fault in the camshaft position sensor circuit. While the issue could be wiring, the sensor itself is the most common failure point. Ignoring this can lead to stalling in traffic, a no-start condition, and reduced fuel economy.
Symptoms of a Failing Camshaft Position Sensor in a 1998-2003 Escort
- Check Engine Light: This is often the first sign. A code reader will typically show P0340.
- Engine Won't Start: The engine cranks but never fires up because the computer doesn't know when to send fuel and spark.
- Stalling: The engine may shut off unexpectedly while idling at a stoplight or even while driving.
- Rough Idle and Misfires: The engine may shake, sputter, or run unevenly because the timing is off. 🎬 Watch: How to replace the timing belt on a 2.0L Escort.
- Poor Acceleration: You might notice the car feels sluggish or hesitates when you press the gas pedal.
Choosing the Right Aftermarket Sensor: Brand Quality Matters
When it comes to engine sensors, not all aftermarket brands are created equal. For a critical part like the camshaft position sensor, choosing a quality brand can save you from doing the job twice. While the original Ford (Motorcraft) part is an option, several aftermarket brands offer a great balance of quality and price.
Tier 1: OEM Quality & Trusted Brands
These brands are known for making parts that meet or exceed original factory specifications. They are often original equipment suppliers to various car manufacturers.
- Delphi: A well-respected OEM supplier known for high-quality electronics that perform like the original part.
- NGK / NTK: Famous for spark plugs, their sensor line (NTK) is also built to high OE standards and is a trusted choice.
- Hitachi: Another major OEM supplier with a strong reputation for reliable electronic components.
Tier 2: Reputable Aftermarket Brands
These brands offer a good balance of performance and value. They are a solid choice for most repairs.
- Standard Ignition (SMP): A long-standing aftermarket company that produces reliable parts.
- Walker Products: Specializes in engine management and fuel system components with a history of quality.
- Spectra Premium: A well-known aftermarket manufacturer with a wide range of parts.
Tier 3: Value-Oriented Brands
These brands focus on affordability. While they can be a good option for a budget repair, forum discussions suggest their quality can be inconsistent for critical sensors.
- Dorman: Dorman has a mixed reputation among mechanics. Some of their parts are innovative fixes, but for electronic sensors, they are often considered a gamble on longevity.
- Global Parts, Prenco, True Tech: These brands typically compete on price. They may be suitable for a quick fix, but long-term reliability might not match the higher-tier brands.
Pro Tip: Check Your Wiring First
The P0340 code means there's a problem in the "circuit." Before you replace the sensor, inspect the wiring and connector. Look for frayed wires, loose pins, or oil contamination from a leaky valve cover gasket, as these can also cause the code. Cleaning the connector or repairing a wire might fix your problem for free.
Cost of Replacing the Camshaft Position Sensor
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $17 - $61 |
| Shop Labor | $104 - $153 |
| Total Professional Replacement | $135 - $193 |
Frequently Asked Questions (FAQ)
Where is the camshaft position sensor on a 1998-2003 Ford Escort?

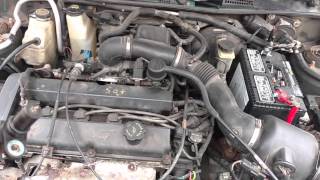

On the Escort ZX2 with the 2.0L DOHC Zetec engine, the sensor is located on the driver's side of the engine, at the rear of the cylinder head. 🎬 Watch: This video shows the exact sensor location on a ZX2. On the 2.0L SOHC SPI engine, it is also typically found on the top end of the engine, making it accessible for replacement. The sensor is small and held in by a single bolt.
Can I replace the sensor myself?
Yes, this is a very DIY-friendly repair. The job typically requires only basic hand tools (a ratchet with an 8mm or 10mm socket, or a Torx bit). The process involves disconnecting the battery, unplugging the electrical connector, removing one bolt, and swapping the old sensor for the new one. It can usually be done in under an hour.
Is an expensive sensor better than a cheap one for my Escort?
For critical electronic parts like this, yes. Cheaper sensors have a higher failure rate. Spending a little more on a reputable brand like Delphi or NGK can prevent you from having the same problem again in a few months. Given the low cost of even premium aftermarket parts for this car, it's a worthwhile investment in reliability.
Are there any recalls on the Escort for this part?
No. There are no recalls or widespread Technical Service Bulletins (TSBs) from Ford for the camshaft position sensor on the 1998-2003 Ford Escort. A well-known Ford recall for this sensor applied only to 7.3L diesel engines in trucks and vans, not the Escort.
Helpful Videos
Technical Specifications
OEM Part Numbers: F7CZ-6B288-AA 1S4E-6B288-AA
2-pin connector, Hall-effect sensor, O-ring seal.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
