Ford Escort Engine Oil Pressure Switch: A Comprehensive Guide (1998-2003)
Understanding the signs of a failing oil pressure switch and how to choose the right replacement for your 1998-2003 Ford Escort.
- An oil pressure warning light is a critical emergency; always stop the engine and check the oil level immediately.
- The most common failure symptoms are a flickering oil light or an oil leak from the switch itself.
- Replacement is simple and located just above the oil filter, making it a good DIY task for beginners.
- For this part, a premium aftermarket brand like Standard Ignition or Hella offers reliability comparable to OEM for less money.
Symptoms of a Failing Oil Pressure Switch
An oil pressure switch failure can show up in a couple of ways. It's important to know the signs, but also to understand that an oil pressure warning should always be treated as a serious emergency until you can prove otherwise.
- Flickering or Constant Oil Light: This is the most common symptom. The light might flicker at idle when the engine is hot, or it may stay on constantly. While this can indicate a faulty switch, it can also mean your engine has dangerously low oil pressure.
- Oil Leak: The switch itself can fail and leak oil. Over time, the plastic housing or internal seals can crack, causing oil to seep out. You may notice oil drips under the car or see oil residue on the switch, which is located just above the oil filter.
- Warning Light Stays Off: In a rare failure, the switch might fail to activate even when oil pressure is low. This is dangerous because you won't get a warning of a real problem.
Warning: Do Not Ignore the Oil Light
Never assume the oil light is on because of a bad switch. Always check your oil level immediately. If the level is correct, do not continue to run the engine. Have the vehicle towed to a mechanic to have the oil pressure professionally tested. Driving with low oil pressure can destroy your engine in minutes.
Choosing the Right Aftermarket Switch
For a simple part like an oil pressure switch on the Escort, you don't always need to buy the most expensive option. However, quality still matters. Here’s a breakdown of the available brands.
OEM (Original Equipment Manufacturer)
- Motorcraft: This is Ford's official parts brand. Choosing Motorcraft guarantees a perfect fit and the same quality as the part that was installed at the factory. For a critical sensor, it's a reliable, worry-free choice.
Premium Aftermarket
These brands are known for high-quality manufacturing and often supply parts directly to automakers. They are excellent alternatives to the OEM part and can sometimes offer improved designs.
- Standard Ignition (SMP): A highly respected brand in the aftermarket, known for producing reliable sensors and electrical components that meet or exceed OE quality.
- Hella: A global OEM supplier with a strong reputation for quality electronics. A Hella switch is a dependable choice that is built to last.
Standard Aftermarket
These brands provide a functional replacement at a great value. For an older vehicle like the 1998-2003 Escort, these can be a smart, budget-friendly choice.
- Facet
- Global Parts
- Rostra Powertrain
Pro Tip: Given the low cost of even premium aftermarket switches, it's worth spending a few extra dollars on a brand like Standard Ignition or Hella to ensure reliability and avoid having to do the job twice.
Cost of Replacement
The cost to replace the oil pressure switch is very reasonable. The part itself is inexpensive, and the labor is minimal due to its easy-to-access location.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $7 - $35 |
| New OEM (Motorcraft) Part | $10 - $50 |
| Shop Labor | $85 - $125 |
| Total Professional Replacement | $95 - $175 |
Frequently Asked Questions (FAQ)
Is it hard to replace the oil pressure switch myself?
No, this is a very DIY-friendly job for most home mechanics. The switch is located just above the oil filter. The process involves safely raising the front of the vehicle, removing the lower splash shield, unplugging the single wire, and using a wrench or special socket to unscrew the old switch and install the new one. The most important thing is not to over-tighten the new switch.
Do I need a special tool to replace the switch?
Usually, a standard deep socket or wrench will work. However, there are special oil pressure switch sockets that have a cutout for the connector, which can make the job easier if access is tight. Check the new part to confirm the socket size needed before you start.
My switch is leaking oil. Is that a serious problem?
Yes. Any oil leak should be fixed, but a leak from the pressure switch is a sign of imminent failure. If the switch fails completely, it could leak a significant amount of oil quickly, leading to low oil levels and potential engine damage. Replace a leaking switch as soon as possible.
Are there any recalls for the oil pressure switch on my Escort?
No, there are no specific recalls or Technical Service Bulletins (TSBs) from Ford or the NHTSA for oil pressure switch failures on the 1998-2003 Ford Escort. The issues are typically due to normal age and wear.
Technical Specifications

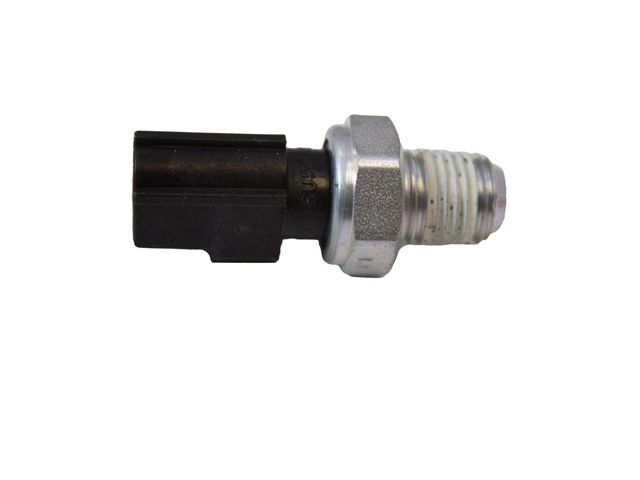

OEM Part Numbers: F5RZ-9278-A 6U5Z-9278-D
The oil pressure switch for the 1998-2003 Ford Escort is a normally-closed switch that opens when oil pressure exceeds approximately 5-7 PSI.
