1998-2003 Mercedes-Benz ML320 Universal Joint Diagnosis and Replacement
Addressing the common driveline vibrations and clunks in your W163 ML320 starts with understanding its unique U-joints.
- Your 1998-2003 ML320 has staked-in U-joints from the factory, which require special tools or a machine shop to replace.
- Symptoms include vibrations at highway speed, clunking when shifting, and rhythmic squeaking.
- A failed U-joint can detach the driveshaft, making it a critical safety repair. Do not drive with severe symptoms.
- Using a high-quality aftermarket brand like Dana Spicer is recommended due to the high cost of an OEM driveshaft and the difficulty of the labor.
Symptoms of a Failing Universal Joint in an ML320
A worn U-joint will give you clear warning signs. Ignoring them can lead to a detached driveshaft, causing a loss of power and major damage. Listen and feel for these symptoms:
- Vibrations at Speed: The most common symptom is a vibration felt throughout the vehicle that gets worse as you increase speed. This is often mistaken for a tire imbalance, but if balancing your wheels doesn't solve it, the U-joints are a likely culprit.
- Loud Clunking Noise: A distinct 'clunk' or 'bang' when you shift from Park into Drive or Reverse points to excessive play in a worn U-joint.
- Cyclical Squeaking: A rhythmic squeaking or chirping sound that increases with speed, especially noticeable when moving slowly, suggests the U-joint has lost its internal lubrication and is failing.
- Visible Rust Dust: If you inspect the U-joints, you may see a reddish-brown dust around the bearing caps. This is a sign that the internal needle bearings have turned to rust and the joint is failing.
A Critical Warning: Staked-In Factory U-Joints
Unlike many vehicles that use simple clips (circlips) to hold U-joints in place, the 1998-2003 ML320 came from the factory with staked-in or swaged U-joints. This means the metal of the driveshaft yoke is physically pressed or peened over the edge of the U-joint cap to lock it in place. This makes replacement much more difficult.
You cannot simply press out the old joint and press in a new one. The staked portions must be carefully ground away or machined out by a professional driveline shop. While some advanced DIYers attempt this, it is not recommended for the average mechanic, as improper removal can damage the driveshaft. Aftermarket replacement U-joints for this vehicle are typically held in with circlips, but only after the original staked joint has been removed correctly.
Choosing the Right Aftermarket U-Joint
Since Mercedes-Benz often requires purchasing an entire, expensive driveshaft assembly, a high-quality aftermarket U-joint is the preferred repair method. Given the difficult labor involved, it is wise to choose the best possible part to avoid doing the job twice.

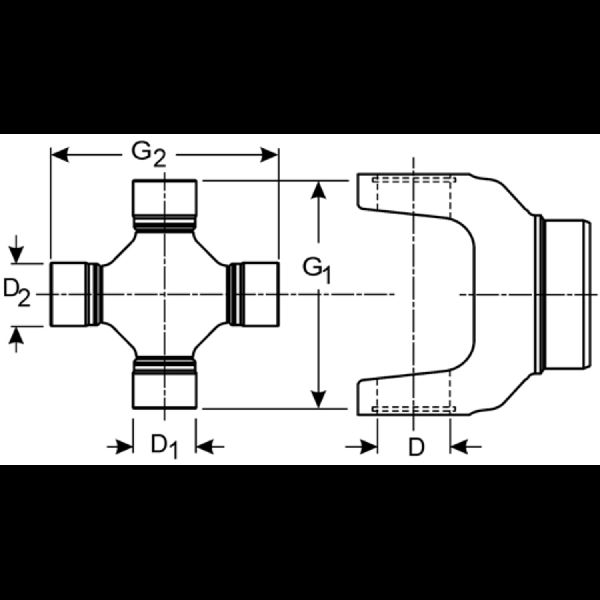

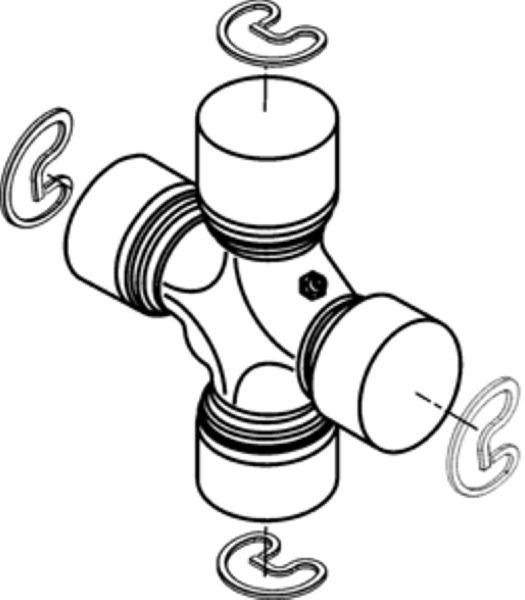

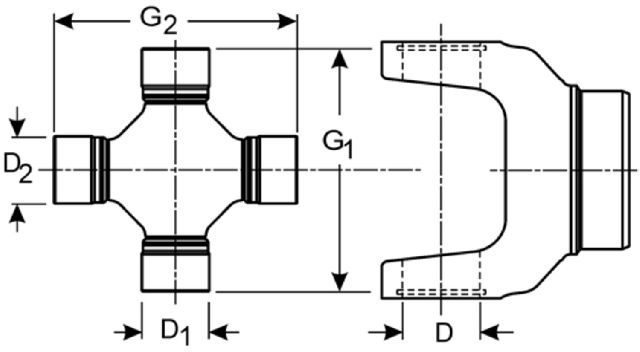

- Premium Tier (Dana Spicer): Dana Spicer is widely considered an OEM-quality or better manufacturer for driveline components. Their U-joints are known for excellent strength, durability, and precise manufacturing. They offer both sealed (non-greasable) and greasable options. For a set-it-and-forget-it installation, the sealed joints often have a longer life due to superior seals from the factory.

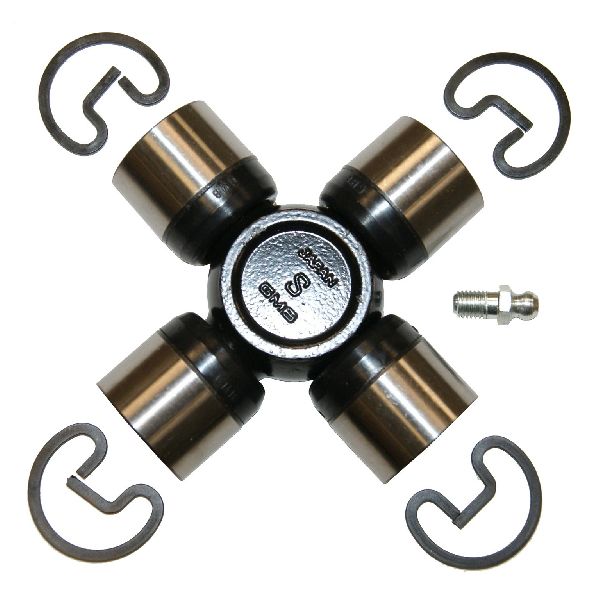

- Standard Tier (GMB): GMB is a well-regarded aftermarket manufacturer that produces reliable replacement parts. These are a solid choice for a standard repair and offer a good balance of quality and cost.
Pro Tip: After replacing a staked-in U-joint, it is highly recommended to have the entire driveshaft assembly re-balanced by a driveline specialty shop. Even a small imbalance can cause vibrations that lead to premature failure of the new joint or other driveline components.
Estimated Replacement Costs
The cost can vary significantly based on whether you are replacing just the part or having a shop perform the complex labor.
| Item | Estimated Cost |
|---|---|
| New Aftermarket U-Joint (Part Only) | $18.53 - $50.04 |
| New OEM Driveshaft Assembly | $800 - $1,500+ |
| Shop Labor (U-Joint Only) | $180 - $300 |
| Total Professional Replacement (Aftermarket Part) | $270 - $356 |
Frequently Asked Questions
Can I replace a staked-in U-joint myself?
It is not recommended for beginners or those without a heavy-duty hydraulic press and grinding tools. The risk of damaging the driveshaft yoke is high. This job is best left to a professional mechanic or a driveline specialty shop.
Do I need to replace the whole driveshaft?
No, you do not need to replace the entire driveshaft if only the U-joint has failed. A specialty shop can replace the individual joint for a fraction of the cost of a new driveshaft assembly from the dealer.
Are the front and rear driveshaft U-joints the same?
Part fitment can vary. Always confirm the specific part number for the correct location (front or rear driveshaft) for your ML320 before ordering. Some aftermarket kits may fit both, but it is crucial to verify.
Should I choose a greasable or a sealed (non-greasable) U-joint?
Sealed U-joints, like the ones from the factory, are often preferred for daily-driven vehicles because they have better seals and require no maintenance. Greasable joints can last a long time but only if they are lubricated regularly. If maintenance is forgotten, they can fail quickly.
Technical Specifications
OEM Part Numbers: 1634101001
The key feature of the original part is its staked-in design, where the driveshaft yoke is peened over the bearing caps. Aftermarket replacements use an internal or external circlip design for retention after the original has been machined out.
