Engine Coolant Bypass Hose Guide for 1998-2003 Subaru Forester
Learn about the small but critical coolant bypass hose to prevent leaks and overheating in your first-generation Forester.
- A leaking bypass hose is a serious issue; do not drive if the engine is overheating to avoid severe damage.
- For this generation of Forester, a quality aftermarket hose from Gates or Dayco is a reliable and cost-effective choice.
- Always inspect these small hoses for cracks or swelling during routine maintenance like oil changes.
- When replacing the hose, also replace the clamps and properly bleed the cooling system of air afterward.
Is Your Forester's Bypass Hose Failing?
Like all rubber parts, these small hoses are exposed to constant heat and pressure. Over time, they will crack, swell, and weaken. A failure can cause a sudden and serious coolant leak. Be aware of these warning signs:
- Coolant Leaks: This is the most common symptom. You may see puddles of green or blue fluid under your vehicle, especially towards the center. You might also notice dried, crusty coolant residue on the engine itself.
- Sweet Smell: The distinct, syrupy smell of hot coolant is a sure sign of a leak, even if you can't see it.
- Engine Overheating: A split hose can cause a rapid loss of coolant, making the engine temperature gauge climb into the red zone. If this happens, pull over immediately to prevent catastrophic engine damage.
- Visible Damage: Inspect the small hoses connected to your throttle body 🎬 Learn more about the throttle body coolant passage bypass. and oil cooler. If they look swollen, cracked, brittle, or feel spongy, they need to be replaced.
Choosing the Right Aftermarket Bypass Hose
For a vehicle like the 1998-2003 Forester, a quality aftermarket hose provides excellent reliability and value. The original hoses are often discontinued or hard to find. Here’s a look at the available brands:
| Brand Tier | Brands | General Assessment |
|---|---|---|
| Tier 1: Premium Aftermarket | Gates | Gates is widely considered a top-tier choice by mechanics. They are known for high-quality materials and, most importantly, correct fitment, which is crucial for pre-formed hoses. Many consider their quality to be on par with or better than other aftermarket options. |
| Tier 2: Standard Quality | Dayco, ACDelco | Dayco is a well-known brand that produces reliable hoses, though some users report they can feel thinner or have less precise fitment than Gates. ACDelco also offers good quality parts that meet OEM standards, but keep in mind they are not always the original equipment manufacturer for Subaru parts. Both are solid choices for a daily driver. |
Pro Tip: When replacing any coolant hose, it's wise to replace the clamps as well. Old spring clamps can lose tension over time. Also, take the opportunity to inspect other nearby hoses. If they are the same age, they are likely near the end of their service life too.
Frequently Asked Questions (FAQ)
What does the engine coolant bypass hose connect to?
On the 1998-2003 Forester, there are a few small bypass hoses. The most commonly discussed ones connect the engine's main coolant passages to the throttle body (to prevent icing) and to the engine oil cooler (to regulate oil temperature).
🎬 Watch this video to understand Subaru EJ-series coolant flow.Can I replace this hose myself?
Yes, for a DIYer with basic tools, this is a manageable job. Access can be tight, especially for the hoses at the back of the engine. You will need to drain some coolant, so have a drain pan ready. The most important step after replacement is to properly refill and bleed the cooling system to remove any air pockets.
🎬 See a step-by-step guide on fixing Subaru Forester coolant leaks.What type of coolant should I use in my 1998-2003 Forester?
It is highly recommended to use a phosphate-based, silicate-free "Asian Vehicle" coolant. Using the wrong type of coolant can potentially harm components like the head gaskets. Always mix with distilled water according to the instructions unless you are using a pre-mixed 50/50 formula.
Should I use an OEM or Aftermarket bypass hose?
For a simple rubber hose on an older vehicle, a quality aftermarket part from a brand like Gates or Dayco offers the best value. They are made from durable EPDM rubber, similar to the original, and will provide reliable service for years. OEM hoses can be expensive and may not even be available anymore.
Helpful Videos
Technical Specifications
OEM Part Numbers: 807611121

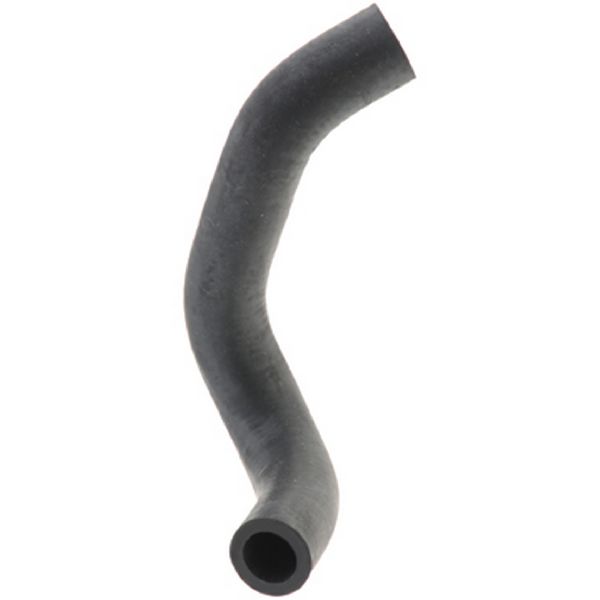

The Engine Coolant Bypass Hose is typically made of molded EPDM rubber to resist heat, ozone, and chemical degradation. It is pre-shaped to fit the specific routing required by the engine, connecting components like the throttle body or oil cooler to the main coolant circuit.
