Subaru Forester Engine Valve Cover Gasket Sets for 1998-2003 Models
Leaking valve cover gaskets are a common issue on first-generation Foresters; here's what you need to know before you buy a replacement set.
- A burning oil smell is the most common symptom of a leaking valve cover gasket on a 1998-2003 Forester.
- Always buy a complete kit that includes spark plug tube seals and bolt grommets; these are critical failure points.
- Due to the boxer engine's design, this job is more difficult than on other vehicles due to tight clearances.
- Reputable aftermarket brands like Fel-Pro, Beck Arnley, and Victor Reinz offer reliable, cost-effective solutions.
Is Your 1998-2003 Forester Leaking Oil? Check the Valve Covers.
If you own a first-generation Subaru Forester, seeing an oil spot on your driveway or smelling burning oil is a common experience. While this era of Subaru is famous for head gasket problems, the much simpler and more common source of oil leaks is the valve cover gaskets. Over time, the rubber gaskets are exposed to constant heat cycles, causing them to become hard, brittle, and crack. When this happens, oil seeps past the seal, dripping onto hot exhaust components below, which causes a distinct burning smell.
🎬 Watch: Identifying oil leaks coming from your Subaru valve covers.Symptoms of a Failing Valve Cover Gasket
- Burning Oil Smell: This is the most common symptom. Oil drips from the side-mounted valve covers directly onto the hot exhaust manifold, creating a noticeable smell, especially after the engine has warmed up.
- Visible Oil Leaks: You may see wetness or grime buildup on the sides of the engine, just below the plastic timing belt covers. The leaks are often more prominent on the passenger side.
- Oil in Spark Plug Wells: When changing your spark plugs, you might find oil pooling in the bottom of the spark plug tubes. This is caused by failed spark plug tube seals, which are part of the gasket set. This can lead to engine misfires.
- Low Engine Oil: A significant leak can lead to a noticeable drop in your engine oil level between changes, requiring you to top it off frequently.
Don't Confuse Valve Cover Gaskets with Head Gaskets
The 1998-2003 Forester is known for head gasket failures, which is a much more serious and expensive repair. A leaking valve cover gasket is an external oil leak. A failing head gasket typically involves coolant loss, engine overheating, or oil mixing with coolant, resulting in a milky appearance under the oil cap. Be sure to correctly diagnose the issue before starting a repair.
Choosing the Right Aftermarket Gasket Set
For a common repair item like this, aftermarket gaskets offer excellent value and, in some cases, improved designs over the original part. The key is to choose a reputable brand and ensure you get a complete kit. 🎬 Watch: A complete guide to Subaru valve cover gasket replacement. A complete set should include the two main valve cover gaskets, four spark plug tube seals, and the small rubber grommets for the retaining bolts.
Aftermarket Brand Tiers
- Premium Aftermarket (OEM Equivalents): Brands like Beck Arnley, Victor Reinz, and Mahle are excellent choices. Beck Arnley is often noted for repackaging original equipment (OEM) parts, making it a very safe bet. Victor Reinz and Mahle are also OEM suppliers for many manufacturers and are trusted in the repair community.
- Trusted Aftermarket Standard: Fel-Pro is arguably the most well-known and widely used aftermarket gasket brand. They have a strong reputation for quality and often engineer their gaskets to fix the weak points of the original design. For most Forester owners, a Fel-Pro kit is a reliable and cost-effective choice.
- Performance-Oriented: Cometic Gasket specializes in high-performance Multi-Layer Steel (MLS) gaskets. While excellent for racing or modified engines, they are typically overkill for a stock daily driver. They also require perfectly clean and flat surfaces to seal properly, which can be more demanding than a standard rubber gasket.
Pro Tip: Installation Matters Most
The success of this repair depends more on the installation than the brand of gasket you choose. The boxer engine's layout makes access tight. Take your time, thoroughly clean the valve cover and cylinder head surfaces of all old oil and sealant, and replace all the seals in the kit. A small dab of RTV sealant is required at the sharp corners where the engine block meets the cylinder head to ensure a leak-free seal.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $36 - $77 |
| Shop Labor | $210 - $375 |
| Total Professional Installation | $250 - $450+ |
Frequently Asked Questions
Do I need to replace the spark plug tube seals too?
Yes, absolutely. The spark plug tube seals are often the main cause of the leak, allowing oil to fill the spark plug wells. Any quality gasket set will include them, and they should always be replaced at the same time as the main gaskets.
Is this a difficult job to do myself (DIY)?
It is moderately difficult due to tight access. The boxer engine design leaves little room between the valve covers and the vehicle's frame rails. While it can be done with basic tools, expect it to be more challenging than on an inline engine. Some mechanics will even slightly lift the engine for better clearance. If you are not a confident DIYer, it may be best to leave this to a professional.
Do I need to use RTV sealant with the new gasket?
Yes, but only in specific locations. A small amount of oil-resistant RTV sealant (often called "Fuji-bond" in the Subaru world) should be applied where the front timing cover meets the cylinder head and at the half-moon seals on the back of the head. Do not apply sealant along the entire length of the gasket, as this can cause it to slip out of place and create a new leak.
Are there any recalls for this issue?
No, there are no recalls or technical service bulletins (TSBs) for leaking valve cover gaskets on the 1998-2003 Subaru Forester. This is considered a normal wear-and-tear maintenance item.
Helpful Videos
Technical Specifications

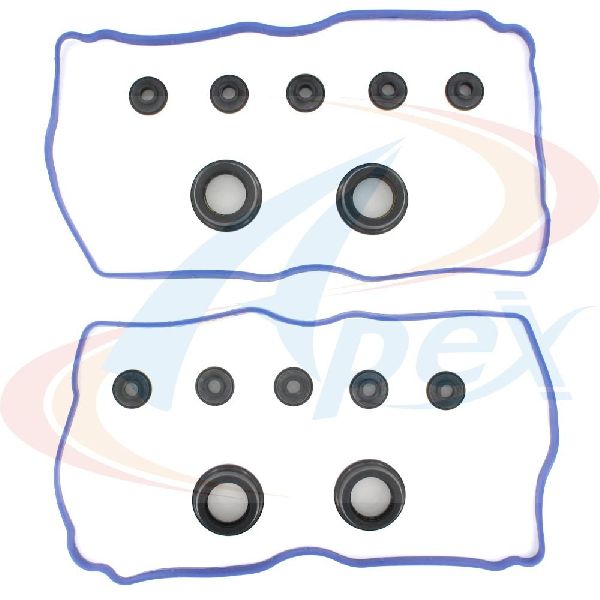

Kit should include two valve cover gaskets, four spark plug tube seals, and bolt grommets. Material is typically a high-temperature molded rubber compound.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
