A Forester Owner's Guide to Fuel Injectors for 1998-2003 Models
Fix your Forester's rough idle, poor performance, and bad gas mileage by choosing the right fuel injectors.
- Your Forester requires side-feed injectors; top-feed injectors will not fit.
- A strong fuel smell is a critical safety issue; check fuel hoses as well as injectors.
- Replacing all four injectors at once is highly recommended for balanced engine performance.
- Aftermarket brands like Standard Ignition are a common choice, while economy remanufactured brands carry more risk.
Is Your Forester Showing Signs of a Bad Fuel Injector?
When a fuel injector starts to fail, your car will usually let you know. The signs can start small but will get worse over time. Because your 1998-2003 Forester is getting older, injector problems are becoming more common. Look for these classic symptoms:
🎬 Watch: 11 telltale signs your fuel injectors are going bad- Rough Idle: The engine shakes or sputters when you're stopped at a light.
- Engine Misfires: You might feel a hesitation or stumble while driving, often accompanied by a flashing Check Engine Light.
- Poor Fuel Economy: You're filling up the gas tank more often than you used to.
- Trouble Starting: The engine cranks but struggles to start, especially when it's already warm.
- Fuel Smell: A strong smell of gasoline inside or outside the car is a major red flag.
Warning: Fuel Smell is a Serious Safety Hazard

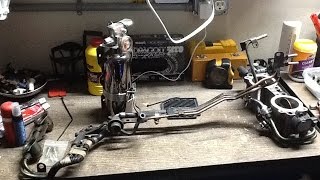

If you smell raw gasoline, stop driving the vehicle. While it could be a leaking injector, a common issue on this generation of Subaru is the rubber fuel hoses connected to the fuel rail becoming old, brittle, and leaking. A fuel leak of any kind creates a serious fire risk. 🎬 See how old rubber hoses cause common Subaru fuel leaks Have the vehicle inspected by a mechanic immediately.
Known Issues, Recalls, and TSBs
No specific recalls or Technical Service Bulletins (TSBs) from Subaru directly address fuel injector failure for the 1998-2003 Forester. However, there was a safety recall for some early 2000s Subaru models for fuel lines that could leak in very cold temperatures. This highlights the importance of checking all fuel line components, not just the injectors, if you smell gas.
Choosing the Right Aftermarket Injector
For a vehicle of this age, buying brand new OEM injectors from a Subaru dealer is often too expensive to be practical. The aftermarket offers several options, but quality can vary. It's important to understand what you're buying.
Critical Ordering Information: Top-Feed vs. Side-Feed
Your 1998-2003 Subaru Forester uses side-feed style fuel injectors. This is a less common design where fuel enters through the side of the injector body. Most modern cars and many aftermarket performance brands use a top-feed design. You MUST purchase side-feed injectors for a direct replacement. Top-feed injectors will not fit without expensive modifications to your fuel rail and wiring.
Brand Quality Tiers
Standard Aftermarket (e.g., Standard Ignition - SMP): These are widely available and are a common choice for repairs. They are designed to be a direct replacement for the original part. Reviews show that they are a functional replacement, though like many aftermarket electrical parts, there is a chance of receiving a faulty part out of the box. They represent a balance between cost and reliability.

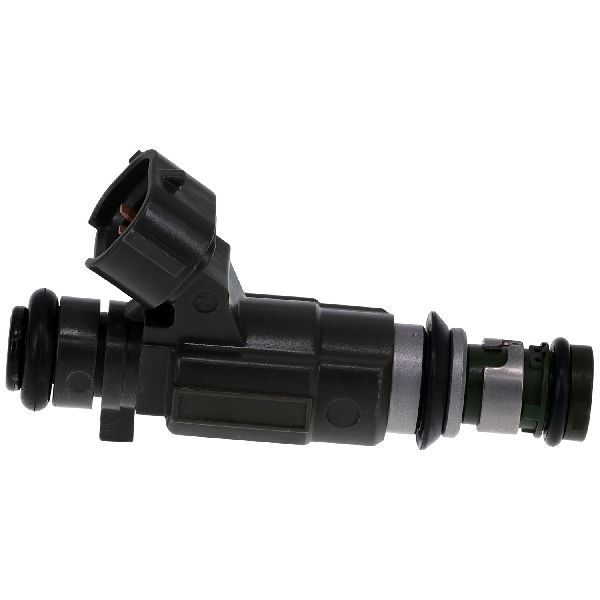

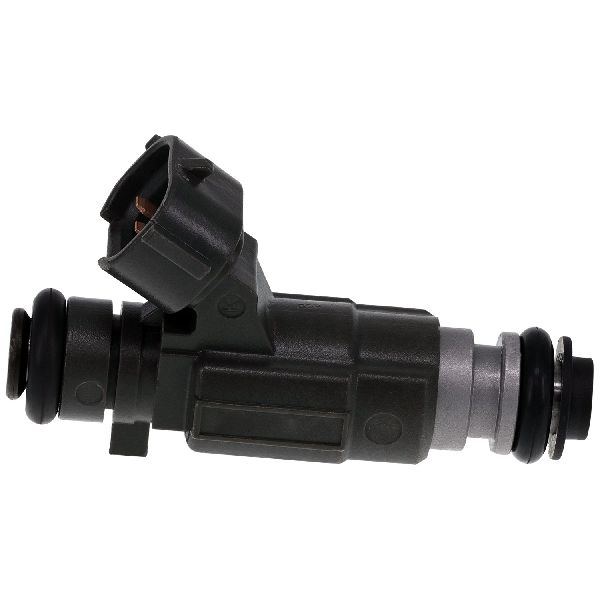

Economy / Remanufactured (e.g., GBR Fuel Injection): These are often the cheapest option. GBR specializes in remanufacturing original injectors. While this can be a budget-friendly choice, the quality can be inconsistent. Customer reviews sometimes report injectors failing shortly after installation or even being faulty upon arrival. This is a higher-risk option that may save money upfront but could lead to more repair work later.
Pro Tip: Replace Injectors as a Set
Even if you've only diagnosed one bad injector, it's highly recommended to replace all four at the same time on an older vehicle. This ensures that all cylinders receive the same amount of fuel, a term called 'flow matching'. Mixing one new injector with three old, partially clogged ones can lead to an unbalanced engine that still doesn't run smoothly.
How Much Does a Fuel Injector Replacement Cost?
The cost can be broken down into parts and labor. You can save on labor by doing the job yourself, but it requires mechanical skill.
| Item | Estimated Cost |
|---|---|
| New OEM Injector (1) | $200 - $300+ |
| New Aftermarket Injector (1) | $56 - $270 |
| Remanufactured Injector (1) | $40 - $100 |
| Shop Labor | $250 - $450 |
Frequently Asked Questions
Can I replace just one fuel injector?
You can, but it is not recommended for this vehicle's age. To ensure the engine runs smoothly and efficiently, it's best practice to replace all four injectors as a matched set. This guarantees they all deliver the same amount of fuel.
Do I need to program new fuel injectors?
No. For the 1998-2003 Subaru Forester, fuel injectors are a direct replacement part. They do not require any special programming with a scan tool like on much newer, direct-injection vehicles.
Are remanufactured injectors a good deal?
They can be, but it's a gamble. While some remanufactured injectors work fine, there is a higher risk of failure compared to new aftermarket parts. If you are on a very tight budget they are an option, but be prepared for the possibility of issues.
What tools do I need to replace my fuel injectors?
You will need a good socket and ratchet set, pliers, and screwdrivers. The job involves relieving fuel system pressure, disconnecting the battery, and removing the fuel rail that holds the injectors. It is a moderately difficult job for a DIY mechanic.
Helpful Videos
Technical Specifications

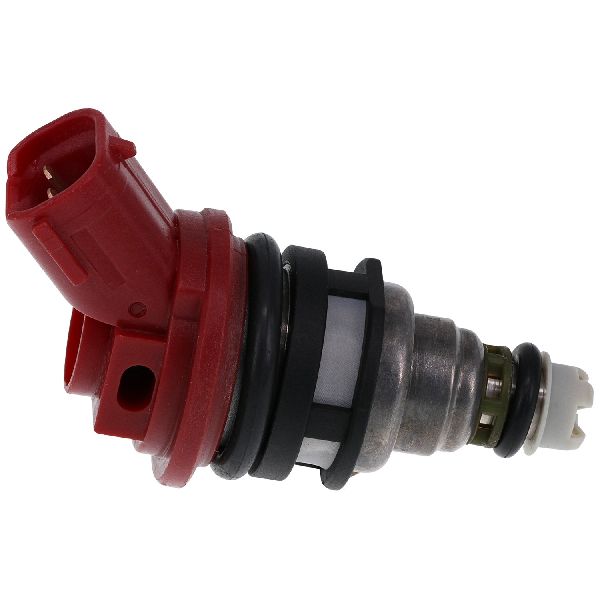

OEM Part Numbers: 16611-AA210 16611-AA140 842-18110
Injector Type: Side-Feed. Connector: Sumitomo.
