1998-2004 Buick Regal Fuel Injection Pressure Regulator Replacement Guide
Address hard starting, poor performance, and fuel smell issues by understanding and choosing the right fuel pressure regulator for your Regal.
- A major symptom of failure is raw fuel found inside the vacuum hose attached to the regulator.
- A recall was issued for 1998-2000 models due to faulty regulators that could create a fire risk.
- Delphi is an OEM-equivalent brand and is a highly recommended choice for this replacement.
- This is a simple, low-cost repair that most owners can perform themselves in under 30 minutes.
Is Your Buick Regal's Fuel Pressure Regulator Failing?
A bad fuel pressure regulator can cause problems that seem serious but are often straightforward to fix. The most common failure on these cars is when the internal diaphragm ruptures. This allows raw fuel to get sucked into the engine through the vacuum hose, causing a rich fuel mixture. A simple check is to pull the small vacuum line off the top of the regulator; if you see or smell gasoline, the regulator is bad 🎬 Watch this video to learn how to test your regulator. and needs to be replaced.
Safety Recall Information
General Motors issued a safety recall (NHTSA Campaign ID: 03054B) for certain 1998-2000 Buick models, including the Regal, equipped with the 3.8L V6 engine. The original fuel pressure regulators had a high failure rate, where a leaking diaphragm could allow fuel into the intake manifold. In rare cases, this could lead to an engine backfire strong enough to rupture the plastic intake manifold and potentially cause an engine fire. While most vehicles should have had this service performed years ago, it highlights the importance of this part. If you experience symptoms, it's crucial to address them promptly.
Choosing the Right Aftermarket Regulator
When replacing the fuel pressure regulator on your Regal, you have several aftermarket options. Quality can vary, so it's important to understand the differences.

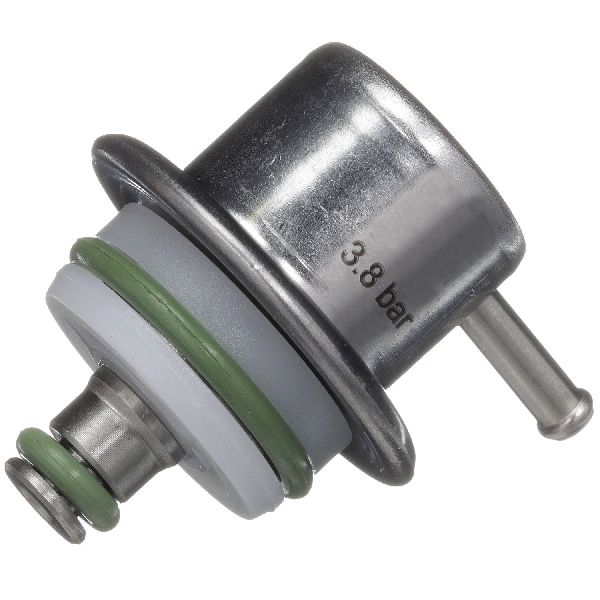

- Premium (OEM-Equivalent): Delphi is widely considered an original equipment manufacturer (OEM) for General Motors. Choosing a Delphi regulator is often the same as buying the part from a GM dealer, just in a different box. They are known for their reliability and are a top choice for a direct, trouble-free replacement.
- Quality Aftermarket: Standard Motor Products (SMP), also sold as Standard Ignition or BWD, is a reputable brand that manufactures many of its own parts. They are a solid choice and often considered a premium aftermarket option, providing good performance and reliability.

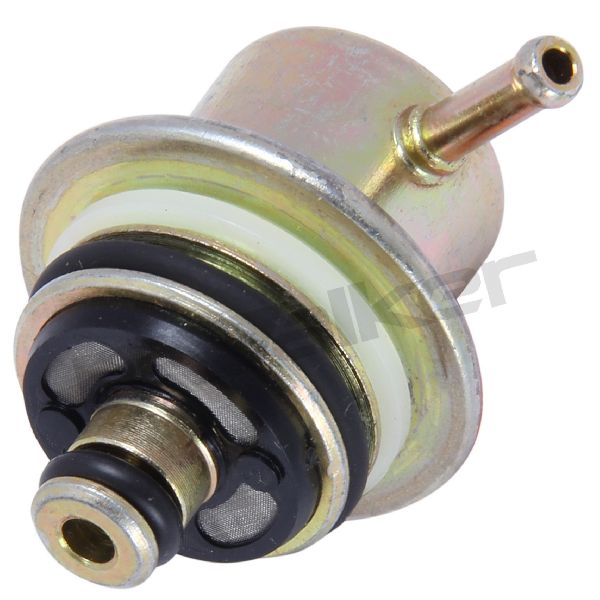

- Standard/Budget: Brands like Walker Products and True Tech are typically more budget-friendly. While they are designed to meet OEM specifications, some users have reported inconsistencies with lower-cost parts in general. For a critical component like a fuel pressure regulator, sticking with a premium or well-known quality brand 🎬 See reviews of the best fuel pressure regulator brands. is often recommended for long-term peace of mind.
Cost of Replacing a Fuel Pressure Regulator
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $72.63 - $110.25 |
| Shop Labor | $50 - $100 |
| Total Professional Replacement | $122.63 - $210.25 |
Pro Tip: Replacing the fuel pressure regulator is a simple job for a DIY mechanic. It's held in by a snap ring and is easily accessible on top of the engine's fuel rail. The repair can often be done in under 30 minutes with basic tools and a pair of snap-ring pliers, saving you money on labor.
Frequently Asked Questions
How do I know if my fuel pressure regulator is bad?
The most definitive sign is finding fuel in the vacuum line connected to the regulator. Other common symptoms include long crank times to start the engine, black smoke from the exhaust, a strong smell of gasoline, poor acceleration, and engine misfires (which may trigger a P0300 code).
Where is the fuel pressure regulator located on a 1998-2004 Buick Regal?

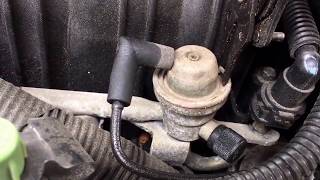

The fuel pressure regulator is a small, round, metal canister located on the engine's fuel rail. The fuel rail is the metal pipe that supplies fuel to the injectors. A small vacuum hose connects to the top of the regulator.
Can I replace the fuel pressure regulator myself?
Yes, this is a very DIY-friendly job. After relieving fuel system pressure, you simply remove the vacuum line, use snap-ring pliers to remove the retaining clip, and pull the old regulator out. Lubricate the O-rings on the new part with a little engine oil before pressing it firmly into place and reinstalling the clip and vacuum line.
🎬 Follow this step-by-step guide to replace your Buick's regulator.What happens if I don't replace a bad fuel pressure regulator?
Continuing to drive with a leaking regulator can cause multiple problems. It will lead to very poor fuel economy, fouled spark plugs, and potential damage to your catalytic converter from the excessively rich fuel mixture. In line with the original GM recall, it also presents a potential fire risk.
Helpful Videos
Technical Specifications
OEM Part Numbers: 217-3073 FP10021
Vacuum-assisted, fuel rail mounted regulator. Fuel pressure for 2001-2004 models should be 53-59 PSI (key on, engine off). For 1998-2000 models, it is 48-55 PSI.
