Chevrolet S10 Universal Joint Guide for 1998-2004 Models
Address driveshaft vibrations and clunks by choosing the correct replacement U-joint for your truck.
- Listen for rhythmic squeaks at low speed or clunks when shifting into gear, as these are early warnings.
- Vibrations that increase with speed are a serious symptom that requires immediate attention.
- Confirm your truck's driveshaft setup (one-piece or two-piece) to know if you need two or three U-joints.
- Original factory U-joints are held in by injected plastic that must be melted out for removal.
- For maximum durability, Dana/Spicer is a top-tier choice; for a balance of quality and value, consider Moog or ACDelco.
Is Your S10's U-Joint Failing?
A failing U-joint gives clear warning signs. Ignoring them can lead to a disconnected driveshaft, causing major damage and leaving you stranded. Listen and feel for these symptoms:
🎬 Watch: How to diagnose and replace a worn S10 U-joint.- Squeaking or Chirping: A rhythmic squeak that matches your speed, especially when first starting to move, is a classic sign of a dry U-joint. This sound is often drowned out by other noises above 10 mph.
- Clunking Noise: A distinct "clunk" or ringing sound when you shift between Drive and Reverse means there is too much play in the joint.
- Vibration: A vibration you can feel through the floor or seat that gets worse as you accelerate is a serious symptom. This indicates the U-joint is worn enough to throw the driveshaft out of balance.
- Transmission Fluid Leak: In advanced cases, the vibration from a bad U-joint can damage the transmission's rear seal, causing a fluid leak.
A Note on Original Factory U-Joints
The original U-joints on 1998-2004 S10s were often installed at the factory using injected nylon plastic to hold the caps in place, not clips. To remove them, this plastic must be melted out with a torch. All aftermarket replacements, 🎬 See this walkthrough on removing factory nylon U-joints. including the ones listed here, will use a standard internal C-clip design.
Choosing the Right Aftermarket U-Joint
Aftermarket U-joints offer a wide range of quality and price. For the S10, brands can be grouped into tiers based on reputation and intended use.
Tier 1: Premium & Heavy-Duty
These brands are known for meeting or exceeding OEM quality and are ideal for owners who want maximum durability or use their truck for heavy work.
- Dana Spicer: Widely considered the benchmark for quality and durability. Spicer was an original equipment supplier for many vehicles, and their non-greasable "Life Series" joints are known for being strong and long-lasting.
- Yukon Gear & Axle: A top choice in the off-road and performance world. While their extreme-duty "Super Joints" are overkill for a daily-driven S10, their standard U-joints are built for high-stress environments and are an excellent, robust choice.
Tier 2: Quality Aftermarket
These brands offer a great balance of performance and price, making them a popular choice for daily drivers and DIY repairs.
- Moog: A well-known aftermarket brand offering several lines, including their durable "Super Strength" U-joints. They are a reliable choice for a stock replacement.
- ACDelco: As GM's own parts brand, their Professional line offers OEM-level quality and fitment. You can be confident you are getting a part designed to meet the original specifications.
- SKF: A global leader in bearing manufacturing, SKF offers quality U-joints, including the heavy-duty "Brute Force" line. They are a solid alternative to other mid-tier brands.
Tier 3: Economy
These brands provide a functional replacement at a lower cost, suitable for budget-conscious repairs on a light-duty truck.
- GMB: A Japanese manufacturer that produces a wide range of automotive parts. GMB U-joints are a cost-effective option that will get the job done for standard driving conditions.
Greasable vs. Non-Greasable
You'll see both types available. Non-greasable (sealed) joints, like the ones from the factory, are generally stronger because the cross isn't hollowed out for grease channels. They are preferred by many for a fit-and-forget installation. Greasable joints can last a very long time but require regular maintenance with a grease gun. If you frequently drive in mud or water, greasable joints allow you to flush out contaminants.
Cost of Replacing an S10 U-Joint
| Part/Service | Estimated Cost |
|---|---|
| Single Aftermarket U-Joint | $19 - $108 |
| Shop Labor (per joint) | $130 - $220 |
| Total Professional Replacement (1 Joint) | $318 - $381 |
Frequently Asked Questions
How many U-joints does my 1998-2004 S10 have?
It depends on the configuration. A standard cab 2WD truck typically has a one-piece driveshaft with two U-joints. Extended cab, 4WD, or models with a longer wheelbase may have a two-piece driveshaft with three U-joints and a center support bearing. Always inspect your vehicle to confirm before ordering parts.
🎬 Watch: Replacing a U-joint on a 4x4 S10 model.Can I just replace the one bad U-joint?
Yes, but it's often recommended to replace them all at the same time, especially if they are all original. If one has failed due to age and mileage, the others are likely not far behind. If you have a two-piece driveshaft, it's a good time to inspect the center support bearing as well.
What happens if a U-joint fails completely?
Complete failure is dangerous and destructive. The U-joint breaks, and the driveshaft can detach from the axle or transmission while you are driving. This results in an immediate loss of power. The free-spinning shaft can then damage the exhaust, fuel tank, brake lines, and the underside of your truck's body before digging into the pavement.
Is replacing a U-joint a good DIY job?
It can be, but it requires the right tools. You will need to safely lift the vehicle, remove the heavy driveshaft, and use a powerful bench vise or a dedicated U-joint press to remove the old joint and install the new one. It is very easy to damage the fragile needle bearings in the new U-joint caps during installation, so care must be taken. If you are not comfortable with this process, it is best left to a professional.
Helpful Videos
Technical Specifications

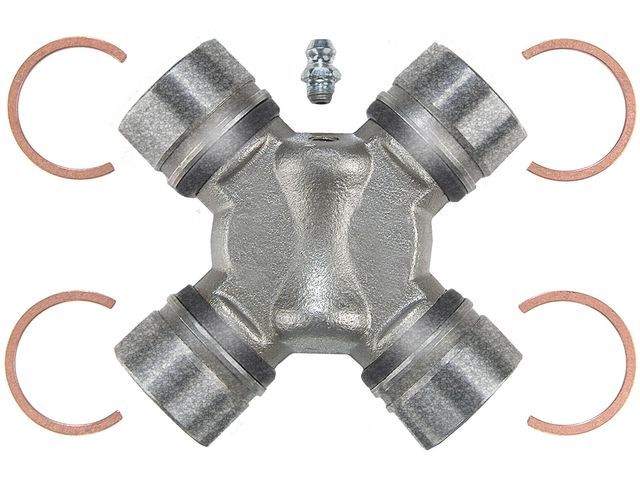

Most 1998-2004 Chevrolet S10 models use an inside C-clip style U-joint, often referred to as the GM 3R or S44 series. However, sizes can vary based on 2WD vs 4WD, engine, and specific driveshaft. It is critical to measure your original U-joint caps or look up the part by your vehicle's specific configuration to ensure a correct fit.
