Dodge Durango Ignition Coil Guide (1998-2004): Choosing the Right Part
Engine misfiring or running rough? This guide will help you find the correct ignition coil for your first-generation Durango.
- First, identify your engine. The 3.9L/5.2L/5.9L Magnum engines use one single coil, while the 4.7L V8 uses eight individual Coil-on-Plug (COP) coils.
- If you have the 4.7L V8, it is highly recommended to replace all eight coils and spark plugs at the same time to ensure reliability.
- Check for oil leaks from the valve cover gaskets on 4.7L engines. An oil leak can destroy new ignition coils quickly.
- For most owners, quality aftermarket brands like NGK, Delphi, or Standard offer the best combination of price and performance.
Two Types of Ignition Systems for 1998-2004 Durangos
It is critical to know which engine your Durango has, as this determines the type and number of ignition coils you need. This is the most common mistake owners make when ordering.
- 3.9L V6, 5.2L V8, & 5.9L V8 (Magnum Engines): These engines use a single ignition coil that works with a distributor and spark plug wires. It's a single, canister-style part that sends power to all cylinders. 🎬 Watch: How to replace the single coil on Magnum engines

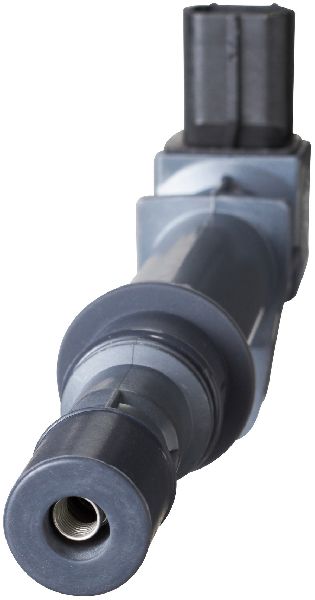

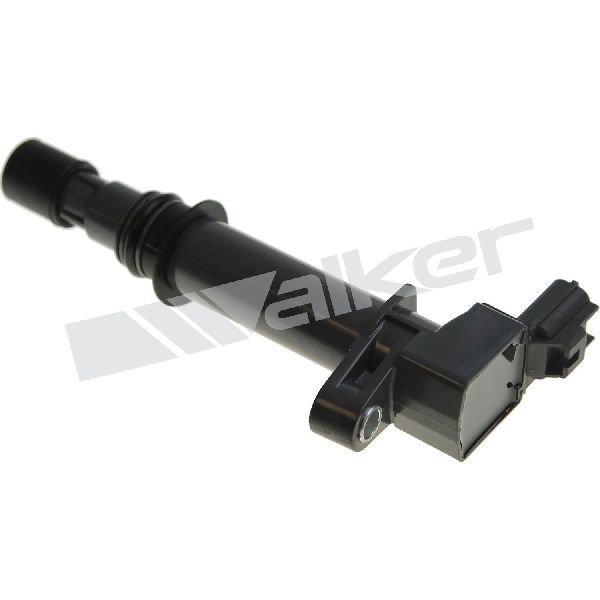

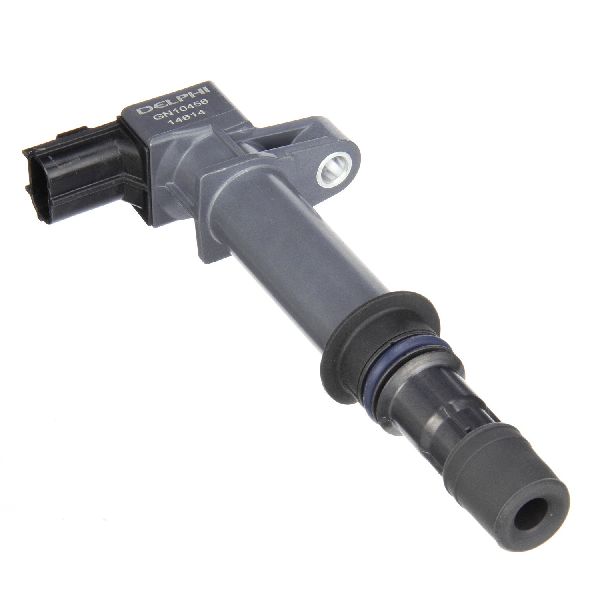

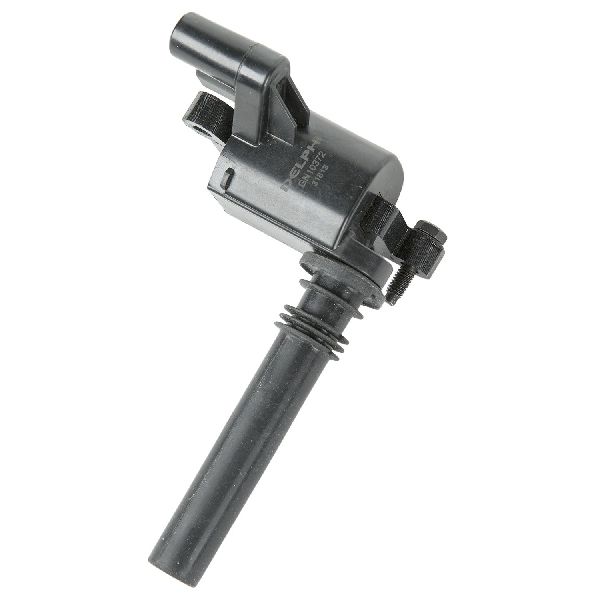

- 4.7L V8 (PowerTech Engine, starting in 2000): This more modern engine uses a Coil-on-Plug (COP) system. This means there is one individual ignition coil for each of the eight cylinders, mounted directly on top of each spark plug. There is no distributor or spark plug wires.
Symptoms of a Failing Ignition Coil
A bad ignition coil will make itself known through poor engine performance. If you have a 4.7L V8, a single failing coil will cause a misfire on one cylinder. If you have a Magnum engine, a failing coil will affect the entire engine.
- Check Engine Light: This is often the first sign. The computer will detect a misfire and store a trouble code. Common codes include P0300 (random misfire) or P0301-P0308 (for specific cylinders on 4.7L engines). 🎬 See this walkthrough for fixing a P0301 misfire code Codes like P0351 can point directly to a coil circuit malfunction.
- Engine Misfires & Rough Idle: The engine will shake, sputter, or feel uneven, especially when stopped or at low speeds.
- Loss of Power: Your Durango will feel sluggish and have trouble accelerating.
- Poor Fuel Economy: When a cylinder isn't firing correctly, fuel is wasted, and you'll notice more frequent trips to the gas station.
- Difficulty Starting: A weak or dead coil may not provide enough spark to start the engine, especially when cold.
Oil Leaks Can Kill Coils
On the 4.7L V8, a common cause of coil failure is a leaking valve cover gasket. Oil seeps down into the spark plug tube and soaks the ignition coil boot, causing it to swell, degrade, and eventually fail. If you find oil on a coil when you remove it, you must replace the valve cover gaskets to prevent the new coil from failing, too.

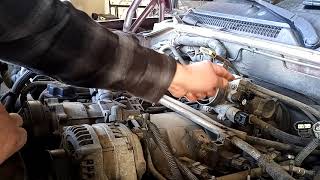

🎬 Watch: Step-by-step guide to replacing leaking valve cover gasketsChoosing an Aftermarket Ignition Coil
For a vehicle of this age, aftermarket parts offer a great balance of quality and value. The original Mopar parts are excellent but can be expensive. Many aftermarket brands are made by the same companies that supply the original parts.
Brand Quality Tiers
| Tier | Brands | Description |
|---|---|---|
| Premium Aftermarket | Delphi, NGK, Hitachi, Standard Ignition (Blue Streak line) | Often OEM suppliers. These brands are known for excellent quality, durability, and performance that meets or exceeds the original part. A top choice for reliability. |
| Standard Replacement | Standard Ignition (standard line), Walker Products, Spectra, WAI Global, Holstein | Good quality parts that provide reliable performance and are a cost-effective alternative to premium brands. A solid choice for daily driving and general repairs. |
| Value / Economy | DriveWire, Global Parts, Encore Automotive, and many unbranded online kits. | These are the most affordable options. While they can function correctly, their long-term durability and performance may not match that of higher-tiered brands. Often sold in complete sets for the 4.7L V8 at a low price. |
A Note on "Performance" Coils
For a stock or lightly modified Durango, high-performance coils from brands like MSD are generally not necessary and won't provide a noticeable power increase on their own. Sticking with a quality OEM-style replacement from a reputable brand like Mopar, NGK, or Delphi is the most reliable choice.
Frequently Asked Questions
Should I replace all coils at once on my 4.7L V8?
It is highly recommended. Ignition coils are wear items that tend to fail around the same time, typically after 100,000 miles. If one has failed, others are likely to follow soon. Replacing them all at once saves you from repeated repairs and is more cost-effective, especially since you can buy them in sets of 8.
Do I need to replace the spark plugs with the ignition coils?
Yes, it is best practice to replace the spark plugs at the same time. A worn spark plug can put extra strain on the ignition coil, causing it to fail prematurely. Since you already have everything taken apart, installing new plugs is a simple and smart step. For the 4.7L engine, owners and mechanics often recommend standard copper core plugs (like NGK V-Power) over platinum or iridium, as the ignition system was designed for them.
Is this a difficult job to do myself?

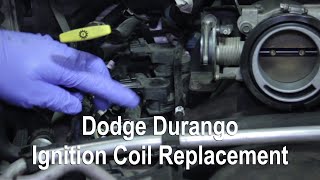

For most owners, this is a very DIY-friendly job. On Magnum engines, the single coil is easy to access after removing the air filter box. On the 4.7L V8, each coil is held by a single 10mm bolt. The entire job can usually be done with basic hand tools in under an hour or two.
Are there any recalls for the ignition coils on these Durangos?
There are no specific recalls for the ignition coils themselves. However, the 2004 model year had several electrical-related recalls, including for the battery cable and instrument cluster, which could cause related issues. It's always good to check your VIN for any open recalls.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56028138AB 56028138AD 56028138AF 56027997
Varies by engine. Magnum engines use a single, remote-mounted canister coil with a 2-pin connector. 4.7L V8 engines use eight individual Coil-on-Plug (COP) pencil-style coils, each secured by one bolt.
