A Comprehensive Guide to Universal Joints for the 1998-2004 Dodge Durango
Hearing a clunk or feeling a vibration when you drive? Your Durango's U-joints could be the problem.
- Address symptoms like clunking or vibrations immediately to prevent a dangerous and expensive catastrophic failure.
- For OEM quality and maximum durability, choose a non-greasable U-joint from Dana Spicer, the original manufacturer.
- If one U-joint has failed, it is cost-effective to replace all of them on that driveshaft at the same time.
- Before starting the repair, mark the driveshaft's position relative to the axle yoke to ensure it is reinstalled in the same orientation to prevent balance issues.
Is Your Durango's U-Joint Failing?
A U-joint is a wear-and-tear item. Over many miles, especially with towing or off-road use, the small needle bearings inside the joint's caps wear out. Ignoring the symptoms of a bad U-joint is dangerous. A complete failure can cause the driveshaft to fall out while you are driving, leading to a loss of control and major damage to other parts of your vehicle.
Common Symptoms of a Bad U-Joint:
- Clunking Noise: A loud 'clunk' or 'bang' when you shift from Park into Drive or Reverse is a classic sign of a worn U-joint with too much play.
- Vibrations at Speed: A vibration that you can feel through the floor of the truck that gets worse as you increase speed is a very common symptom. This is often confused with unbalanced tires, but U-joint vibration may change as you accelerate or decelerate.
- Squeaking or Chirping: A repeating, bird-like chirp that gets faster as you drive often means the U-joint has lost its grease and the metal bearings are running dry.
- Visible Signs: If you look under the truck, you might see rust-colored dust around the U-joint caps, which indicates the seals have failed and the bearings are turning to dust. 🎬 Watch: A mechanic shows you how to identify bad U-joints.
A Note on a Similar Issue: Ball Joint Recall
Dodge issued a safety recall for the front suspension upper ball joints on many 2000-2003 4x4 Durango models. A symptom of this was also a "clunking" noise. Before replacing your U-joints, if you have a 4x4 model in this year range, it is wise to check if your vehicle was part of this recall, as the sound can be similar. This recall does NOT apply to the driveshaft universal joints.
Choosing the Right Aftermarket U-Joint
When replacing U-joints, you have a choice between OEM-equivalent parts and other aftermarket brands. For a critical part like this, quality matters more than a small price difference.
Brand Quality Tiers
- Premium (OEM-Equivalent): Dana Spicer
Dana Spicer is widely considered the original equipment manufacturer (OEM) for Dodge driveline parts. Choosing a Spicer U-joint is like getting the same part from the dealer without the Mopar box. Forum members and mechanics consistently recommend Spicer for its strength and durability. Their non-greasable joints are often considered the strongest because the internal cross is solid metal. - Premium (Aftermarket): Moog, SKF
Moog is a very popular aftermarket brand known for its "Problem Solver" parts. Their U-joints are often greasable, which allows for maintenance but can be a weak point if not serviced. Recent opinions on Moog quality are mixed, with some users reporting a decline in durability. SKF is another reputable brand that offers quality replacements. - Standard / Economy: GMB, Crown Automotive
These brands provide a functional replacement at a lower cost. They can be a good choice for a vehicle with high miles that is used for light-duty driving. However, for heavy use, towing, or maximum longevity, a premium brand is recommended.
Greasable vs. Non-Greasable U-Joints
Many OEM and premium aftermarket joints (like Spicer) are non-greasable, or sealed. They are filled with a high-quality synthetic grease at the factory and are designed to last the life of the part without maintenance. They are also structurally stronger. Greasable joints have a small fitting (a zerk) that allows you to add new grease periodically. This can flush out contaminants and extend the joint's life, but it MUST be done regularly. Forgetting to grease them will lead to quick failure.
How Much Does a U-Joint Replacement Cost?
The cost to replace a U-joint depends on whether you do it yourself or take it to a shop. A shop will charge for about 1-2 hours of labor per driveshaft. The parts themselves are not very expensive.
| Item | Estimated Cost |
|---|---|
| New Aftermarket U-Joint (Single) | $18 - $75 |
| Shop Labor (per driveshaft) | $125 - $180 |
| Total Professional Replacement (One Joint) | $143 - $255 |
Frequently Asked Questions
How many U-joints does my 1998-2004 Durango have?
A rear-wheel drive (RWD) model has two U-joints on the rear driveshaft. A four-wheel drive (4WD) model has four U-joints in total: two on the rear driveshaft and two on the front driveshaft.
Should I replace all the U-joints at once?
It's a good practice. If one U-joint has failed due to age and mileage, the others are likely not far behind. Since the driveshaft has to be removed anyway, replacing them all at the same time saves on future labor costs.
Is replacing a U-joint a DIY job?
It can be, but it is a moderately difficult job. You need to safely raise the vehicle, remove the driveshaft, and then use a special tool, a hydraulic press, or a large bench vise with sockets to press the old joints out and the new ones in. If you are not comfortable with this, it is best left to a professional.
🎬 See this step-by-step walkthrough for a DIY U-joint replacement.What happens if a U-joint breaks completely?
If a U-joint fails, the driveshaft can detach from the vehicle. This can cause it to dig into the pavement, potentially flipping the vehicle, or whip around under the truck, destroying the exhaust, fuel tank, and transmission housing. 🎬 Watch: See what happens when a Durango loses its driveshaft. This is why it is critical to address the warning signs early.
Helpful Videos

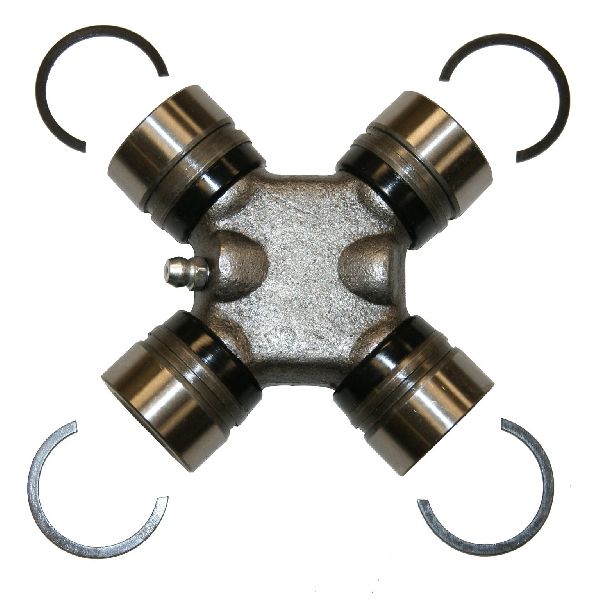

Technical Specifications
OEM Part Numbers: 52123633AA
A 1998-2004 4WD Durango typically uses two different U-joint sizes. For example, a 1998 model may use Moog Part #369 and Moog Part #380 for its four positions. Always verify the correct part numbers for your specific year, engine, and drivetrain (RWD or 4WD) before ordering.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
