1998-2004 Dodge Durango Windshield Washer Pump: A Complete Guide
If your washer fluid isn't spraying, the pump is a likely culprit. Here’s how to choose the right replacement for your first-generation Durango.
- Diagnose first: listen for the pump's hum to see if it's getting power before you buy a new one.
- Access is typically through the front passenger-side wheel well.
- Aftermarket pumps from brands like ACDelco, Crown, or Trico are a cost-effective and reliable solution.
- Always replace the rubber grommet that seals the pump to the reservoir to prevent leaks.
Is Your Durango's Washer Pump Failing?
A non-working washer system is a common issue on the first-generation Dodge Durango. Before you assume the pump is bad, check the simple things first. Make sure your washer fluid reservoir is full. Check for cracked or disconnected hoses, especially where they connect to the nozzles under the hood. Sometimes the nozzles themselves get clogged with wax or debris; you can often clear them with a small pin.
🎬 Watch this guide on fixing clogged washer fluid nozzles.If those check out, the pump is the next logical suspect. The most common symptoms of a failing pump are below.
Choosing the Right Aftermarket Washer Pump
For the 1998-2004 Durango, you don't need to buy an expensive OEM (Original Equipment Manufacturer) part from the dealer. Aftermarket pumps are affordable and readily available. The quality difference for a simple part like this is minimal, and a good aftermarket unit will perform reliably. Your main choices are between established brands.
- ACDelco: A well-known brand that produces reliable, OEM-quality parts for a wide range of vehicles. They are a solid choice for durability and fit.
- Crown Automotive: This brand specializes in parts for Dodge, Jeep, and Chrysler vehicles. They are a good option if you want a part specifically focused on your Durango's original design.
- Trico: Known primarily for wiper blades, Trico also makes universal and direct-fit washer pumps. They are often designed for easy DIY installation. 🎬 See a review of the best replacement washer pumps.
Pro Tip: When you remove the old pump, a rubber seal called a grommet will be in the reservoir opening. Most new pumps come with a new grommet. Always use the new one to prevent leaks.
Known Issues, Recalls, and Bulletins
There are no major recalls or Technical Service Bulletins (TSBs) specifically for the windshield washer pump on the 1998-2004 Dodge Durango. However, forum discussions show that if only the front or rear washer is working, the problem might be more complex. Some later model Durangos use a single, reversing pump controlled by a computer module (like the CTM or TIPM). If you hear the pump running but no fluid comes out for just one direction (front or back), the issue could be the pump itself or the control module sending the signal. For most simple failures where the pump makes no noise at all, a direct replacement is the correct fix.
Cost of Replacing a Dodge Durango Washer Pump
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Pump | $33 - $56 |
| New OEM (Mopar) Pump | $45 - $70 |
| Shop Labor | $50 - $100 |
| Total DIY Cost | $33 - $56 |
| Total Professional Cost | $83 - $156 |
Note: Prices are estimates and can vary based on your location, the specific retailer, and brand. The provided aftermarket range is based on current inventory.
Frequently Asked Questions
Where is the washer pump located on a 1998-2004 Durango?
The washer pump is pressed into the bottom of the windshield washer fluid reservoir. You can usually access it by removing the front passenger-side wheel and pulling back the plastic fender liner.
Is it the pump or just a fuse?
It could be a fuse. Before replacing the pump, check the fuse box. A simple test is to have a friend activate the washer switch while you listen near the reservoir. If you hear a humming or whining sound, the pump is getting power and is likely working; the problem is probably a clog or broken line. If you hear nothing, it's likely the pump has failed or a fuse has blown.
Are the front and rear washer pumps the same?

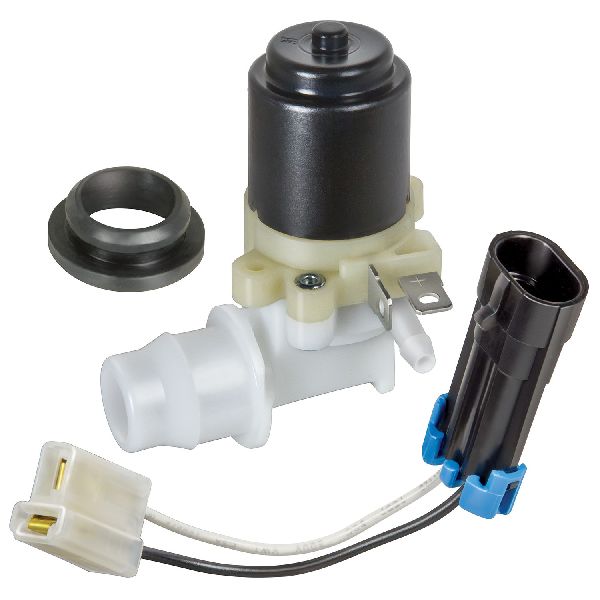

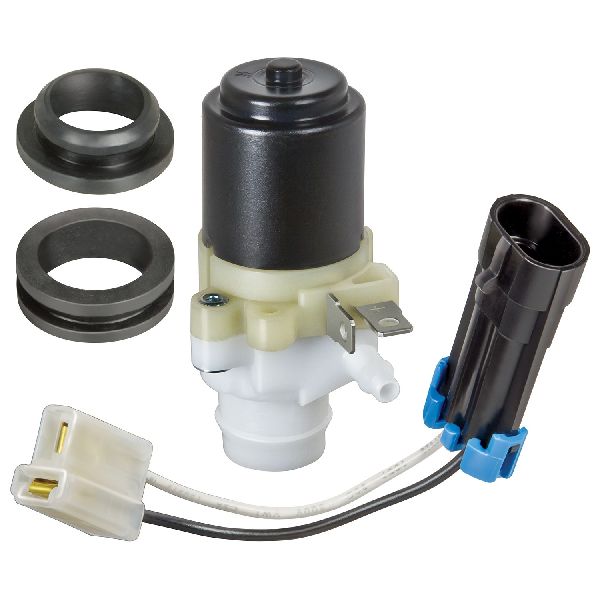

Most first-generation Durangos use a single pump with two outlets that reverses its motor direction to send fluid to the front or the rear. When ordering, make sure you get the correct pump with two nozzles if your vehicle has a rear washer.
Can I replace the washer pump myself?
Yes, this is a very DIY-friendly job. It typically requires basic hand tools to remove the fender liner for access. The pump itself just pulls out of the reservoir and the new one pushes in. The entire job can usually be done in under an hour.
🎬 Follow this step-by-step video to replace your washer pump.Helpful Videos
Technical Specifications
OEM Part Numbers: 5103453AA 55077241AA 5015938AA 55077241AB 5012602AA

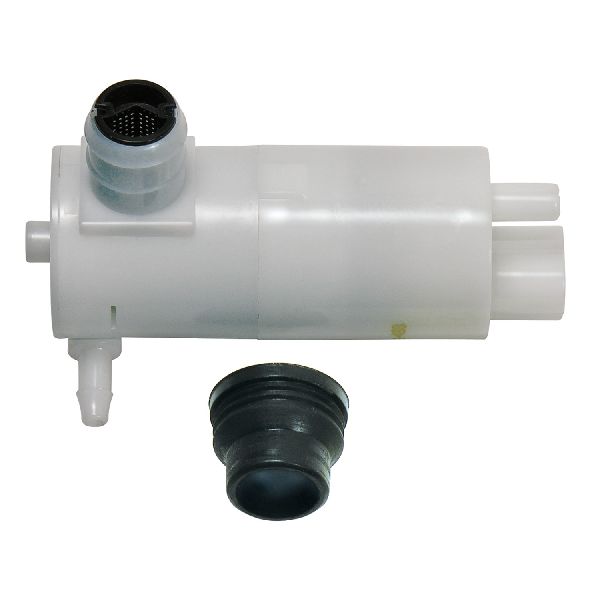

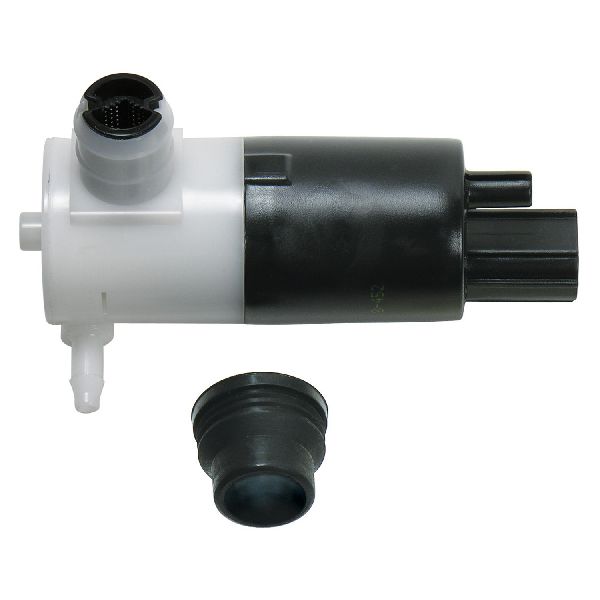

Typically a 12V dual-outlet electric pump that press-fits into the washer fluid reservoir.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
