Choosing the Right Spark Plug Wire Set for Your 1998-2004 Ford F-150
Restore your F-150's performance and fuel economy by understanding and choosing the correct spark plug wires.
- Verify you have the 4.2L V6 engine; V8 models do not use spark plug wire sets.
- Symptoms include rough idle, misfiring under load, and a Check Engine Light with P030X codes.
- Replace wires as a complete set, and it's best practice to replace spark plugs at the same time.
- For reliability, choose OEM-equivalent brands like Motorcraft or NGK; they are proven performers for this engine.
Is Your F-150's Engine a V6 or V8? It Matters.
Important: Verify Your Engine Before Buying
The 1998-2004 Ford F-150 was available with different engines, and their ignition systems are not the same. This is the most common mistake when ordering parts.

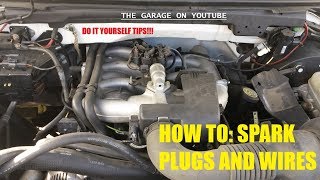

- 4.2L V6 Engine: Uses a traditional ignition coil pack and a set of six spark plug wires. This guide is for you. 🎬 Watch this step-by-step guide to replacing your plugs and wires.
- 4.6L & 5.4L V8 Engines (Triton): Use a Coil-On-Plug (COP) system. These engines do NOT have spark plug wires. Instead, each spark plug has its own individual ignition coil and boot. If you have a V8, you need ignition coil boots, not a spark plug wire set.
Always check the emissions label under your hood to confirm you have the 4.2L V6 engine before purchasing a spark plug wire set.
Symptoms of Failing Spark Plug Wires on the 4.2L V6
When spark plug wires start to fail, the symptoms are often subtle at first but will get worse. A weak or inconsistent spark leads to incomplete combustion in the cylinders. You might notice:
- Rough Idle: The engine may shake or vibrate more than usual when stopped.
- Engine Misfires: You may feel a hesitation, stumble, or jerking sensation during acceleration. This is often more noticeable under load, like when going up a hill or towing.
- Check Engine Light: A misfire will often trigger the Check Engine Light. Common codes include a general random misfire (P0300) or cylinder-specific misfires (P0301 through P0306).
- Poor Fuel Economy: An inefficient engine burns more fuel to do the same amount of work.
- Difficulty Starting: While less common, very bad wires can contribute to hard starting conditions.

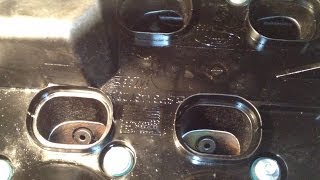

In some cases, symptoms may only appear when the engine is fully warmed up or during wet weather. 🎬 See how to diagnose tricky misfires on the 4.2L engine. This is because heat and moisture can make it easier for weak insulation to leak voltage.
Choosing the Right Aftermarket Spark Plug Wires
For the 4.2L V6, you have several good options. While many owners stick with the original Motorcraft parts, quality aftermarket brands can offer excellent performance and value. Ford engines can be particular about ignition components, so it's wise to invest in a quality set rather than the cheapest option available.
Brand Quality Tiers
Based on owner feedback and general reputation, here's how the brands stack up for your F-150:
- Premium OEM-Equivalent: Brands like Motorcraft, NGK, and Denso are top choices. They are engineered to meet or exceed Ford's original specifications for fit, insulation, and durability. Many owners report that Motorcraft wires are the gold standard for a trouble-free fit and long life.
- Performance Focused: Brands like Taylor Cable and Granatelli often feature thicker 8mm+ silicone jackets and lower resistance conductors. These can be a good choice for modified trucks or for owners seeking maximum spark energy, but are often considered overkill for a stock daily driver.

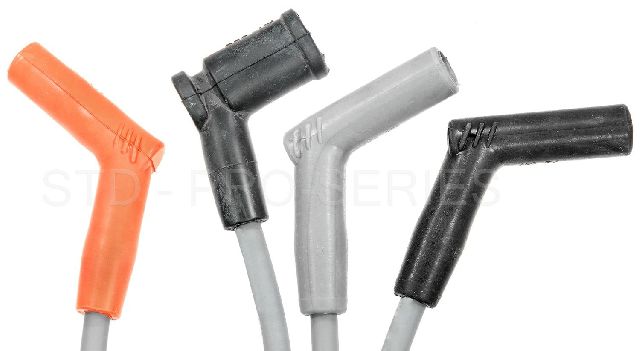

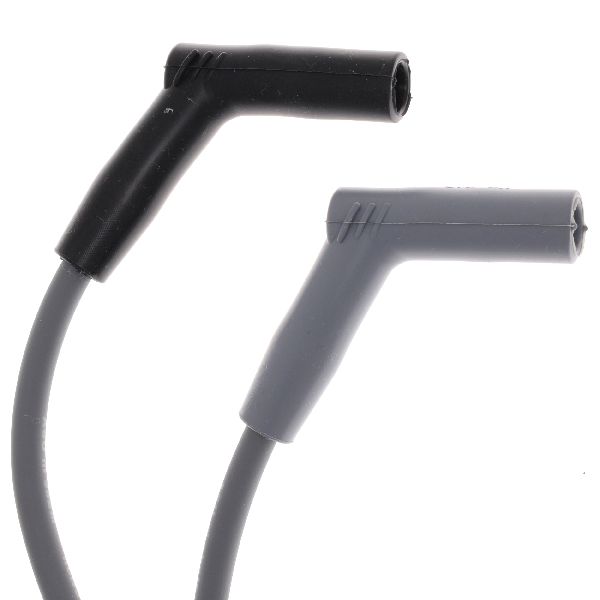

- Standard Aftermarket: Brands like Standard Wires (SMP), Walker Products, and Karlyn STI offer a good balance of price and quality. They are reliable replacements for a daily-driven truck and will restore original performance.
Aftermarket Spark Plug Wire Set Cost
| Quality Tier | Estimated Price Range |
|---|---|
| Standard Aftermarket | $43.10 - $65.00 |
| Premium OEM-Equivalent (NGK, Denso) | $65.00 - $90.00 |
| Performance (Taylor, Granatelli) | $90.00 - $117.44 |
Known Issues, Recalls, and TSBs
There are no major recalls or Technical Service Bulletins (TSBs) specifically for spark plug wire failure on the 1998-2004 F-150 4.2L V6. However, a common issue arises from improper installation. The wires are very long and must be routed correctly in their factory clips and holders. If a wire is left loose, it can get pinched between the engine and transmission during other repairs or make contact with hot exhaust components, causing it to fail prematurely.
Pro Tip: Replace Plugs and Wires Together
It is highly recommended to replace your spark plugs at the same time as your spark plug wires. Old spark plugs have a wider gap, which requires more voltage to jump. This puts extra strain on your new wires and the ignition coil. 🎬 Watch a technician troubleshoot a coil pack that isn't firing. For the 4.2L V6, Motorcraft or NGK spark plugs are highly recommended.
Frequently Asked Questions (FAQ)
Do I have to replace all the spark plug wires at once?
Yes. Spark plug wires degrade at a similar rate. If one has failed, the others are likely not far behind. Replacing them as a set ensures a balanced, reliable ignition system and prevents you from having to do the same job again in a few months.
What's the difference between 7mm and 8mm wires?
The measurement refers to the diameter of the wire's outer jacket. A thicker wire, like 8mm, generally has thicker insulation, offering better protection against heat and voltage leaks. For a stock 4.2L V6, a quality 7mm or 8mm wire set from a reputable brand is perfectly adequate.
Are expensive performance wires worth it for my stock truck?
For a mostly stock engine, probably not. While performance wires from brands like Taylor or Granatelli have very low resistance, the benefit is minimal on an otherwise standard truck. A high-quality OEM-style set from Motorcraft or NGK will provide a strong, reliable spark for tens of thousands of miles.
How can I check if my spark plug wires are bad?
A visual inspection can sometimes reveal cracks, burns, or swelling in the wire insulation. You can also test the wire's resistance with a multimeter; a general rule is under 10,000 ohms per foot of wire, but check the manufacturer's spec. The easiest test is often to start the engine in a very dark garage and look for any blue sparks arcing from the wires to metal parts of the engine, which indicates a voltage leak.

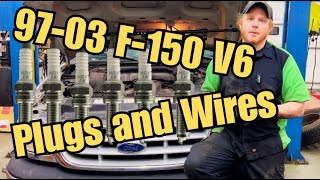

Helpful Videos
Technical Specifications
OEM Part Numbers: WR-5978 WR-4112 WR-5996
Set of 6 spark plug wires with coil and spark plug boots. Designed for a distributorless ignition system with a single coil pack. Wire lengths are specific to the 4.2L V6 engine bay layout.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
