Oldsmobile Bravada A/C Actuator Guide for 1998-2004 Models
Fix the annoying clicking from your dashboard and get your heat and A/C working again.
- A clicking noise from the dash is the most common sign of a failed A/C actuator.
- This is a very common problem for the 1998-2004 Bravada and its GM siblings.
- DIY replacement is possible for the main blend door actuator by removing the glove box, which avoids a costly full dashboard removal.
- Aftermarket 'Replacement' brand parts are a cost-effective solution for this repair.
Is Your Bravada's Climate Control Acting Up?
If you're hearing a repetitive clicking noise from behind the glove box or can't get your heat or air conditioning to the right temperature, a failing A/C actuator is a very likely culprit. This is an extremely common issue on the 1998-2004 Oldsmobile Bravada and its siblings, the Chevrolet Blazer and GMC Jimmy. The actuator contains small plastic gears that can strip or break over time, leading to the tell-tale symptoms.
Common Failure Symptoms
- Clicking or Ticking Noise: The most frequent complaint is a clicking or knocking sound from the passenger side of the dashboard. 🎬 Watch: How to identify that dashboard popping noise This noise is most noticeable for about 30 seconds after starting the vehicle or when changing the temperature setting. It's the sound of broken plastic gears inside the actuator trying, and failing, to move the door.
- Temperature Stuck on Hot or Cold: You may find that your vents only blow hot air, even with the A/C on, or only cold air when you need heat. This happens when the actuator fails completely, leaving the blend door stuck in one position.
- Inconsistent Temperature: The air temperature might fluctuate between hot and cold on its own, without you touching the controls.

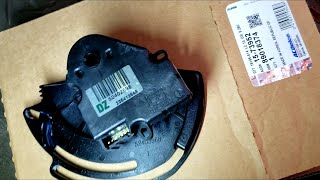

- Wrong Airflow Direction: If the mode door actuator fails, you might be stuck with air only coming from the defroster or floor vents, no matter what setting you choose.
Which Actuator is Bad?
Your Bravada has multiple actuators. Before ordering, it's important to identify which one has failed. If your problem is with temperature control, you need the blend door actuator. If the problem is where the air comes out (vents, floor, defrost), you need a mode door actuator. The clicking sound's location can often help pinpoint the failed part.
Choosing Your Aftermarket Replacement Part
For a vehicle of this age, an aftermarket A/C actuator is a practical and affordable choice. The primary brand available for this part is often listed as "Replacement."
- Replacement Brand: This typically refers to a part made to meet original equipment (OE) specifications without the OEM (Original Equipment Manufacturer) brand name and associated cost. These parts offer a functional, budget-friendly solution to get your climate control working properly again. While quality can sometimes be inconsistent with generic parts, they are a popular choice for this common repair.
Pro Tip: Before you fully install a new aftermarket actuator, plug it into the wiring harness. Turn the ignition on (without starting the engine) and operate the temperature and mode controls. Ensure the new actuator moves correctly and quietly. This simple test can save you from having to do the job all over again if you receive a defective part.
Cost of Replacing Your A/C Actuator
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $26.18 |
| Shop Labor | $100 - $250 |
Note: Labor costs can vary significantly. Some shops follow a procedure that requires removing the entire dashboard, which can cost over $800. However, many mechanics have a shortcut that avoids this, drastically reducing labor time. Always ask your shop about their method.
Frequently Asked Questions
Is it difficult to replace the A/C actuator myself?

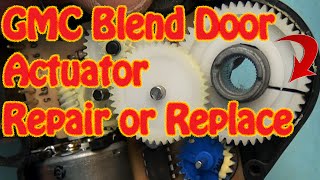

For many owners, this is a manageable DIY job. The main temperature blend door actuator is usually behind the glove box. Access is tight, but it can often be done with basic tools like a 5.5mm socket and some patience, avoiding the need to remove the whole dashboard. 🎬 See this walkthrough for replacing the blend door actuator There are numerous video tutorials online for the Bravada's sister vehicles (Blazer, Jimmy) that show the process.
Are there any recalls for the A/C actuator on my Bravada?
No, there are no specific NHTSA safety recalls for the A/C actuators on the 1998-2004 Oldsmobile Bravada. While other recalls exist for the vehicle, none address this specific part.
I replaced the actuator and it's still not working right. What now?
After replacing an actuator or disconnecting the battery, the HVAC control module may need to be recalibrated. To do this, you can try a reset procedure. A common method involves pulling specific HVAC-related fuses for a couple of minutes, then reinstalling them and turning the key to the 'on' position (without starting) for 1-2 minutes while the system recalibrates. Do not touch any climate controls during this time.
🎬 Watch: How to calibrate your new actuator after installationWhat's the difference between an A/C actuator and the A/C control module?
The A/C control module is the unit in your dash with the knobs and buttons that you use to set the temperature and fan speed. It is the 'brain' of the system. The A/C actuator is the small motor that receives commands from the module and physically moves the doors to direct airflow and control temperature.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89018676 604-119
Controls temperature by mixing hot and cold air (Blend Door) or directs airflow path (Mode Door).
