Audi A3 Engine Camshaft Position Sensor Guide (1998-2005)
Experiencing starting issues or a check engine light on your 8L Audi A3? Your camshaft position sensor might be the culprit.
- Symptoms often include a check engine light (P0340/P0341), difficulty starting, stalling, and poor performance.
- This is a DIY-friendly repair, typically requiring only basic tools and about 30 minutes.
- The sensor is usually located on the cylinder head and held by one or two bolts.
- Since the 1998-2005 A3 wasn't sold in the US, no NHTSA recalls apply.
A Note for North American Owners
The 1998-2005 Audi A3, known as the 8L generation, was not officially sold in the United States. This guide is intended for owners of Canadian or privately imported models. As a result, no recalls for this specific part and model will be found in the US-based NHTSA database.
Common Symptoms of a Failing Camshaft Sensor
When the camshaft position sensor in your A3 starts to fail, it can't send a reliable signal to the engine's computer. This can cause several noticeable problems:
- Check Engine Light: This is often the first sign. A scanner will typically show fault codes like P0340, P0341, P0343, or P0011. 🎬 See how to quickly diagnose and fix P0340 codes.
- Difficulty Starting: The engine may crank for a long time before it starts, or it might not start at all. This is because the computer doesn't know the correct timing for fuel and spark.
- Engine Stalling: The car might stall unexpectedly, especially at low RPMs or while idling. This can be dangerous if it happens while driving.
- Poor Engine Performance: You might notice a lack of power, rough idling, engine misfires, and poor acceleration.
- Reduced Fuel Economy: When the engine isn't running efficiently, it will use more fuel than normal. 🎬 Watch: A visual guide to common bad sensor symptoms.

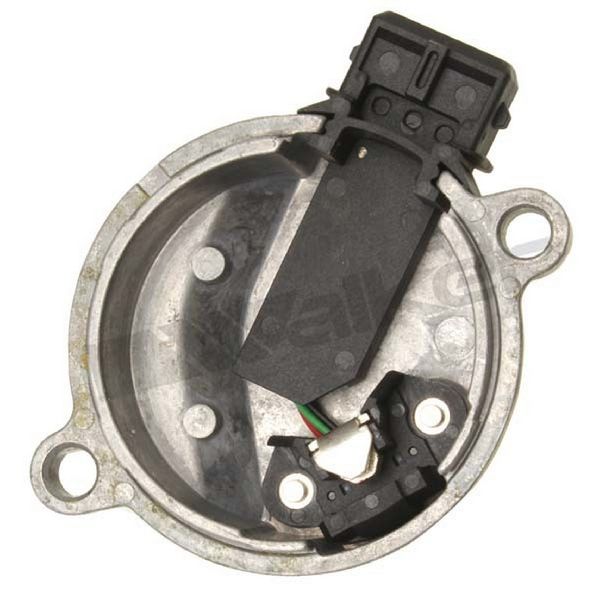

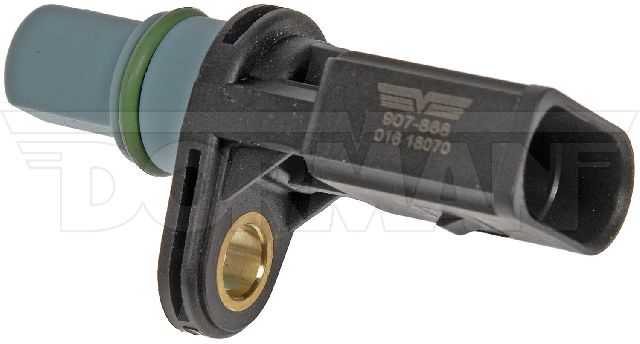

Choosing the Right Aftermarket Sensor
When replacing the camshaft position sensor, you have a choice between Original Equipment Manufacturer (OEM) parts and aftermarket parts. For a vehicle of this age, a quality aftermarket sensor can be a cost-effective solution.
Forum discussions and mechanic recommendations often suggest that while some budget-friendly sensors can fail prematurely, reputable aftermarket brands like Standard Ignition and Walker Products are generally considered reliable alternatives to more expensive OEM parts. The key is to avoid the absolute cheapest options, as sensor quality can vary. A mid-tier aftermarket part often provides the best balance of price and reliability for this specific repair.
Pro Tip: A faulty camshaft position sensor is often caused by an oil leak in the area. When you replace the sensor, inspect the area for any oil residue. Also, it's a good practice to replace the sensor's O-ring to ensure a proper seal.
Installation Overview
For many 1.8T engines used in the 1998-2005 A3, the camshaft position sensor is located on the cylinder head, near the front of the engine, often behind the timing belt cover. The replacement is a straightforward job for a DIY mechanic with basic tools.
- Disconnect the battery.
- Locate the sensor on the cylinder head. You may need to remove the engine cover or other components for access.
- Disconnect the electrical connector.
- Remove the single T30 Torx bolt or two 10mm bolts holding the sensor in place.
- Gently twist and pull the old sensor out. Clean the mounting surface.
- Install the new sensor with a new O-ring, secure it with the bolt(s), and reconnect the electrical connector. 🎬 Follow this step-by-step 1.8T sensor replacement walkthrough.
- Reconnect the battery and clear any fault codes with a scan tool.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $24 - $69 |
| New OEM | $70 - $220 |
| Shop Labor | $45 - $100 |
Frequently Asked Questions
Can I still drive my Audi A3 with a bad camshaft sensor?
It is not recommended. While the car may still run, you risk the engine stalling at any time, which is a serious safety hazard. Continuing to drive can also lead to further engine problems and failed emissions tests.
What is the difference between a camshaft and a crankshaft sensor?
They work together. The camshaft sensor tracks the position of the camshafts to control valve timing, while the crankshaft sensor tracks the position and speed of the crankshaft. The computer uses both signals to manage the engine. A fault in one can sometimes trigger codes related to the other.
Why did my new aftermarket sensor not fix the problem?
If a new sensor doesn't resolve the issue, the problem could be with the wiring or connector leading to the sensor. Check for corrosion, loose pins, or damaged wires. In some cases, the issue could be related to the engine's timing belt or chain, or the crankshaft sensor itself.
Are there any recalls or TSBs for this part?
Because the 1998-2005 Audi A3 was not sold in the US, there are no NHTSA recalls for this model. A Technical Service Bulletin (TSB) 2041097 exists for later models regarding camshaft position codes (P0011/P0021), which points to issues with the camshaft adjuster control valve, but this may not apply to all 8L engines.
Helpful Videos
Technical Specifications
OEM Part Numbers: 058905161B
Typically a 3-pin Hall Effect sensor.
