Engine Water Pump Guide for the 1998-2005 Audi A3
Understand the common failure points of your A3's water pump and how to choose the best aftermarket replacement.
- Always replace the water pump as part of a complete timing belt kit, including the belt, tensioner, and idlers.
- Choose an aftermarket water pump with a metal impeller to avoid the common failure of the original plastic design.
- Do not drive your vehicle if it is overheating, as this can cause permanent engine damage.
- This is a complex job not recommended for beginners; professional installation is strongly advised.
Signs of a Failing Water Pump in Your A3
A bad water pump will give you clear warning signs. Ignoring them can lead to your engine overheating and major damage. Be aware of these symptoms:
- Engine Overheating: This is the most serious symptom. If your temperature gauge climbs into the red, the water pump may have stopped circulating coolant. This could be due to a broken internal impeller.
- Coolant Leaks: You may notice puddles of sweet-smelling green or pink fluid under the front-center of your car. Leaks often start slowly from a 'weep hole' on the pump, a feature designed to indicate a failing internal seal.
- Whining or Grinding Noises: A high-pitched whine or a grinding sound coming from the timing belt area of the engine can signal a failing water pump bearing. This is urgent, as a seized bearing can destroy the timing belt.
Choosing the Right Aftermarket Water Pump
When shopping for a new water pump for your A3, the biggest difference you will find is the material of the impeller—the small fan that moves the coolant.
Impeller Material: Plastic vs. Metal
| Impeller Type | Pros | Cons |
|---|---|---|
| Plastic/Composite | Original equipment design. Some argue it is better balanced and less stressful on the bearing. | Known weak point on 1998-2005 models. The plastic can become brittle and crack or break apart over time, causing a sudden loss of coolant circulation. |
| Metal | Much more durable and not prone to cracking like the original plastic impellers. Widely considered an upgrade by the owner community. | Some mechanics argue a poorly made metal impeller could be unbalanced or that a seal failure is more likely than an impeller failure. |
For the 1998-2005 A3, most owners and experienced mechanics recommend choosing an aftermarket pump with a metal impeller. The risk of the original plastic impeller failing is a well-documented issue, and a metal impeller provides significant peace of mind.
Pro Tip: Replace Everything at Once
The water pump is located behind the timing belt. The labor required to access it is the same as a full timing belt service. Because of this, you should always replace the timing belt, belt tensioner, and idler pulleys when you replace the water pump. Most brands offer complete kits for this purpose. It is also wise to replace the thermostat at the same time.
Available Aftermarket Brands
You have several choices for aftermarket pumps. Quality can vary, so it's important to understand the options.

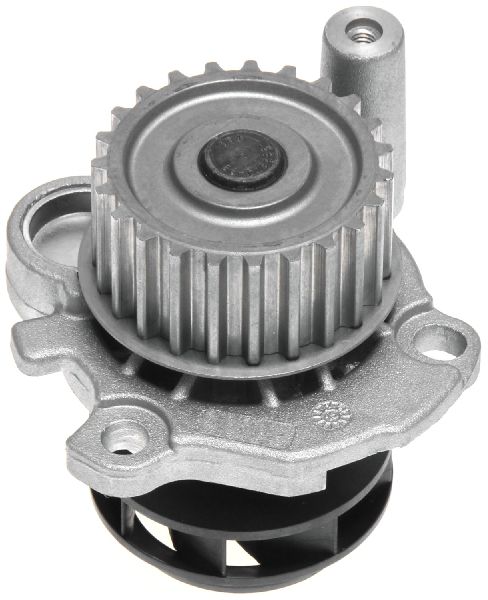

- Gates: A highly reputable brand known for its complete timing belt and water pump kits (often labeled TCKWP). These kits provide all the necessary components for the job, ensuring compatibility. Be sure to check the product details, as some Gates kits may still use a plastic impeller.

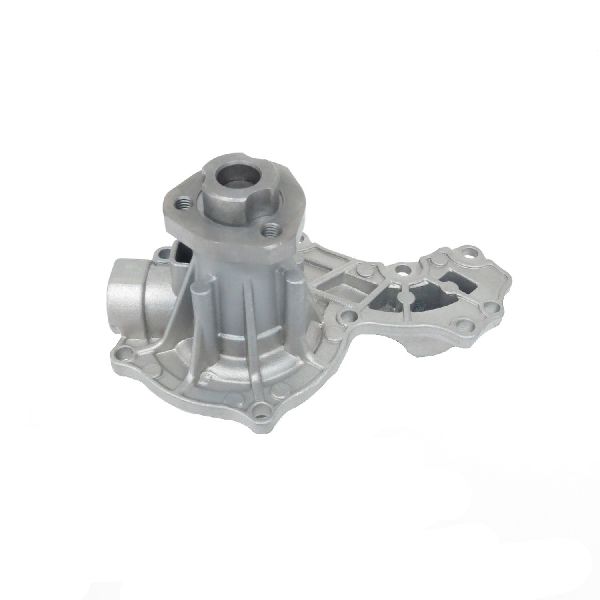

- US Motor Works: This brand typically offers a more budget-friendly option for water pumps and timing kits. They serve as a cost-effective alternative for repairs.
Known Issues, Recalls, and Service Bulletins
There are no active recalls or technical service bulletins (TSBs) from the NHTSA specifically for engine water pump failure on the 1998-2005 Audi A3. The widely reported recalls for Audi water pumps apply to much newer models (2012 and later) with different engine designs and electric coolant pumps. The primary known issue for the 8L A3 is the failure of the original plastic impeller.
Frequently Asked Questions (FAQ)
Do I have to replace my timing belt with the water pump?
Yes, absolutely. The water pump is driven by the timing belt, and the labor to get to either part is nearly identical. Not replacing the belt, tensioner, and idlers at the same time is a huge risk and could lead to doing the entire expensive job over again.
Should I buy a water pump with a plastic or metal impeller?
For this specific vehicle, a metal impeller is highly recommended. The original plastic impellers are a known failure point, and a metal one is a durable upgrade that prevents the impeller from cracking or breaking apart.
Can I perform this replacement myself?
This is an advanced, high-difficulty job. Because it involves the engine's timing belt, a mistake can cause catastrophic engine damage. This repair is not recommended for DIY beginners and should be left to an experienced mechanic.
What coolant should I use for my 1998-2005 Audi A3?
Always use a phosphate-free, silicate-free coolant designed for European vehicles, typically G12 (pink/purple) or a compatible modern equivalent like G13. Using the wrong type of coolant can cause corrosion and damage to cooling system components.
Technical Specifications
OEM Part Numbers: 06B121011A 06B121011B 06B121011C 06B121011E 06B121011H 06B121011L 06B121011Q 06B121011LX
Timing belt driven, cast aluminum housing, available with plastic or metal impeller.
