A Practical Guide to the 1998-2005 Audi A6 Quattro Fuel Pump Assembly
Everything you need to know before replacing your A6 Quattro's fuel pump module.
- A failing fuel pump gives warning signs like whining from the rear seat, hesitation, or long crank times before it fails completely.
- The pump is located under the rear passenger seat, so the fuel tank does not need to be dropped for replacement.
- For best results and longevity, choose an OE-quality brand like Continental/VDO or Delphi.
- Always inspect the fuel pump flange for cracks to prevent fuel leaks, and replace the separate in-line fuel filter at the same time.
Is Your Audi A6 Stalling or Sputtering? It Could Be the Fuel Pump.
If your 1998-2005 Audi A6 Quattro is experiencing issues like engine hesitation, stalling, or difficulty starting, a failing fuel pump module is a likely culprit. This component works constantly while the engine is running, and after many years and miles, wear is inevitable. When it starts to fail, it can leave you stranded without warning. Understanding the symptoms and your replacement options is key to getting your Audi back on the road reliably.
Symptoms of a Failing Fuel Pump
- Engine Hesitation or Sputtering: The car may jerk or sputter during acceleration because the engine isn't getting a consistent supply of fuel.
- Loss of Power: You might notice the car feels sluggish, especially under load, like going up a hill.
- Loud Whining Noise: A noticeable humming or whining sound from the rear seat area is a classic sign of a struggling fuel pump motor.
- Long Crank Time: The engine takes longer than usual to start because the pump is slow to build adequate fuel pressure.
- Engine Stalling: The engine may stall unexpectedly, especially when warm, and may be difficult to restart.
- No Start Condition: The most severe symptom is a complete failure, where the engine cranks but will not start because no fuel is reaching it. 🎬 Watch: How to properly test and diagnose a bad fuel pump
Known Issue: Cracked Fuel Pump Flange
While there are no specific recalls for the 1998-2005 A6, other Audi models from a similar era were recalled for cracks developing on the fuel pump's top plastic flange, which can cause a dangerous fuel leak and strong fuel smell in the cabin. When replacing your pump, carefully inspect the top of the old unit and the tank opening for any signs of cracking, fuel stains, or a yellow discoloration. This is a critical safety check.
Choosing the Right Aftermarket Fuel Pump
When it comes to aftermarket parts, quality can vary. For a critical component like the fuel pump, choosing a reputable brand can save you from doing the job twice. Here’s a 🎬 See this step-by-step 2002 Audi A6 Quattro fuel pump replacement breakdown of the available brands:
Tier 1: OEM and OE-Quality Brands
These brands are often the original equipment suppliers for Audi and offer the highest likelihood of a perfect fit, long life, and quiet operation. They are the most expensive aftermarket options but provide peace of mind.
- Continental (VDO): Continental is a well-known OEM for many German vehicles, including Audi. A VDO/Continental pump is often considered equivalent to the part you'd get from a dealer.
- Delphi: A major global OEM supplier, Delphi has a strong reputation for producing high-quality fuel system components that meet or exceed factory standards.
Tier 2: Reputable Aftermarket Brands
These brands offer a good balance of quality and value. They are a solid choice for a reliable repair without the OEM price tag.
- Carter: A long-standing name in fuel systems, Carter produces reliable aftermarket pumps.
- GMB: GMB is a recognized manufacturer of various automotive parts, including fuel pumps, offering dependable performance.
- Airtex: Airtex is a major aftermarket manufacturer, but owner reviews can be mixed. While many have no issues, some have reported premature failures. They are a budget-friendly option from a large, established company.
Tier 3: Budget-Friendly Brands
These brands focus on providing the lowest-cost solution. They can be a viable option if the budget is the primary concern, but their long-term durability may not match that of higher-tiered brands.
- US Motor Works
- AutoBest
Pro Tip: Regardless of the brand you choose, it is highly recommended to replace the in-line fuel filter at the same time you replace the fuel pump. A clogged filter can strain a new pump and cause it to fail prematurely.
Replacement Cost
The total cost will depend on whether you do the work yourself or hire a professional. The part itself has a wide price range based on the brand's quality tier.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Fuel Pump Module | $85 - $395 |
| New OEM Fuel Pump Module (Dealer) | $450 - $700+ |
| Shop Labor | $225 - $350 |
| Total Professional Replacement (Aftermarket) | $310 - $745 |
Frequently Asked Questions (FAQ)
Is replacing the A6 Quattro fuel pump a DIY job?
Yes, it is a feasible DIY project for someone with moderate mechanical skill. The pump is accessed by removing the rear seat cushion, not by dropping the fuel tank. The main challenges are dealing with fuel safely and removing the large plastic lock ring that secures the pump. The job typically takes 2-3 hours.
Do I need a special tool to remove the fuel pump?
Audi has a special tool to remove the lock ring. However, many DIYers successfully use a pair of large flathead screwdrivers or wrenches crossed over each other to engage the tabs and twist the ring off. You can also use a brass punch and hammer to carefully tap the ring counter-clockwise to loosen it. Never use a steel hammer and screwdriver, as this can create sparks around fuel vapors.
🎬 Watch: A helpful walkthrough for replacing the C5 fuel pumpCan I replace just the pump motor instead of the whole assembly?
While some may attempt to replace only the small pump motor inside the plastic housing, it is not recommended. The module is sold as a complete, sealed unit for a reason. The internal hoses, wiring, and the fuel level sender can also be worn. Replacing the entire module assembly ensures all components are new and prevents potential issues and leaks.
What is the fuel pump access panel?
The access panel is a small, round metal plate held down by three Phillips screws. It is located on the floor pan of the car, under the rear passenger-side seat cushion. Removing this plate gives you direct access to the top of the fuel pump module assembly.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4B0906087P 8E0906087D 4B0906087N

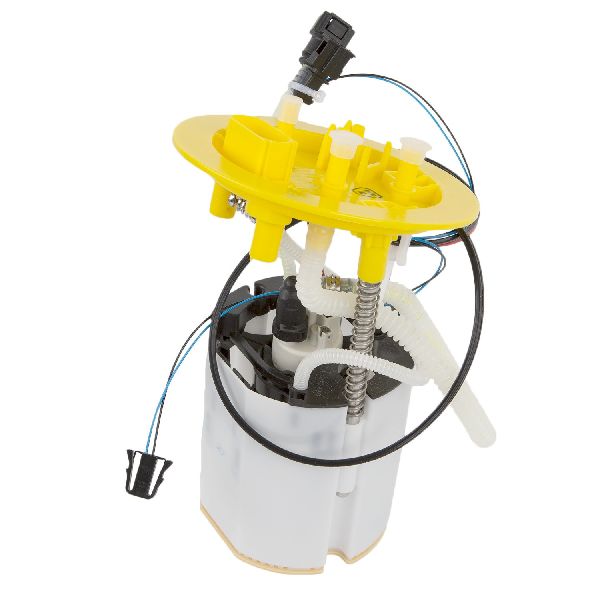

This is a complete in-tank fuel pump module assembly. It includes the electric pump, fuel level sending unit, strainer, and housing. It is designed for the saddle-style tank of the Quattro all-wheel-drive system.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
