A Guide to Replacing the Engine Oil Pan on a 1998-2005 Buick Regal
Leaking oil is the most common reason to replace the oil pan on your Buick Regal.
- Oil leaks are the primary reason for replacement; the original steel pans are known to rust and warp.
- Confirm the leak isn't from the valve cover or oil pressure sensor before starting this difficult repair.
- Due to the high labor involved, it is strongly recommended to replace the pan and gasket together.
- This is a difficult job requiring the engine to be lifted, and is not recommended for a novice DIYer.
Is Your Buick Regal Leaking Oil?
The most common reason to replace the engine oil pan on a 1998-2005 Buick Regal is due to an oil leak. These leaks often come from a worn-out oil pan gasket, but the pan itself can also be the problem. Over time, the stamped steel oil pans used on many GM vehicles of this era, including the Regal with the 3.8L V6, can rust or develop ripples on the sealing surface, leading to persistent leaks even with a new gasket. Sometimes, road debris can hit and crack the pan, or the drain plug threads can get stripped from being tightened too much during oil changes.
Check for Other Leaks First

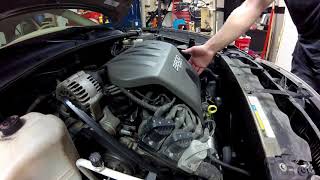

The 3.8L V6 engine (both naturally aspirated and supercharged) is known for oil leaks from other areas that can drip down and look like an oil pan leak. Before replacing the pan, check the valve cover gaskets and the oil pressure sending unit, as these are common leak points that are often misdiagnosed as a bad oil pan gasket. Using a UV dye in your oil 🎬 Watch this guide on diagnosing common 3800 V6 oil leaks. can help you find the exact source of the leak.
Known Issues: Recalls and Service Bulletins
While there are no direct recalls for the oil pan itself, GM did issue a major safety recall (NHTSA Campaign ID: 09V116000, GM Recall No. 09047) for 1997-2003 Regals with the 3.8L V6 engine. This recall was for oil leaking from the front valve cover gasket onto the hot exhaust manifold, which could cause an engine fire. 🎬 See how to properly replace the front valve cover gasket. This highlights the common issue of gasket failure on these engines and the importance of correctly identifying the source of any oil leak.
Additionally, GM released a Technical Service Bulletin (TSB #01-06-01-008A) addressing repeat oil pan gasket leaks. The TSB notes that the stamped steel oil pan's sealing surface can be uneven. The official fix involves applying RTV sealant to both the top and bottom of a new gasket to ensure a proper seal. This is a strong indicator that simply replacing the gasket might not be enough if the original pan is being reused.
Choosing the Right Aftermarket Oil Pan
When replacing your oil pan, you have several aftermarket brands to choose from. Since OEM pans can be expensive or hard to find, a quality aftermarket part is often the best choice.
Tier 1: Dorman & ATP
- Dorman: A very common aftermarket brand. Reviews are generally positive regarding fit and quality, with many saying the pans are equal to or better than OEM. Some users have noted that Dorman pans may have a painted interior, which is a point of concern for some mechanics.

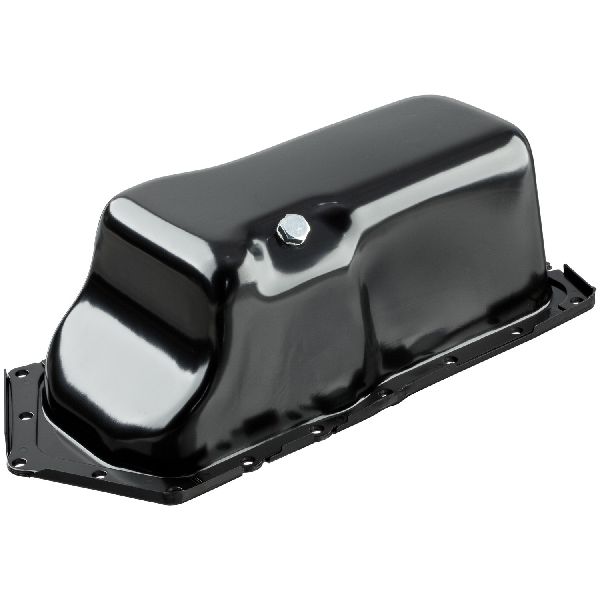

- ATP: Often praised for using thicker steel than the original factory pans, making them more durable. Some reviews mention that ATP pans can be more corrosion-resistant, which is a big plus since the original pans are known to rust out.
Tier 2: Spectra & Pioneer Cable

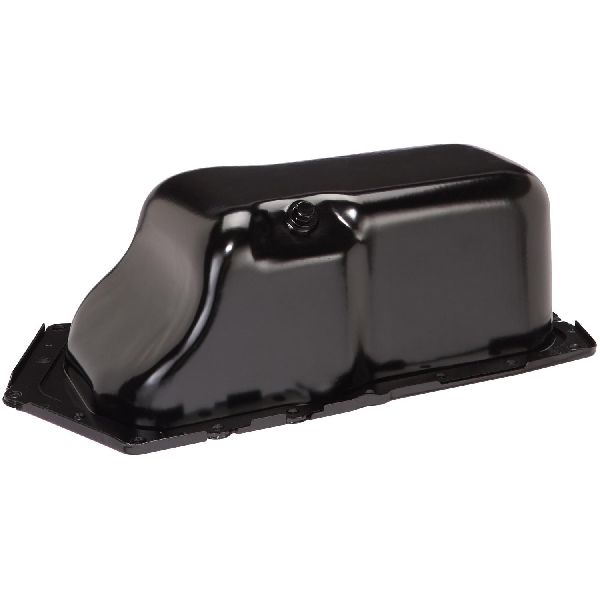

- Spectra: A budget-friendly option. Quality can be inconsistent; some users report a perfect fit, while others have had issues with leaky drain plugs. In some cases, Spectra and Dorman pans have been observed to be identical parts sold under different names.
- Pioneer Cable: This brand is more known for cables and other components, and there is less specific feedback available for their oil pans. General brand reputation is average. Given the critical nature of the oil pan, it may be safer to stick with a brand more known for this specific part.
Pro Tip: Always Use a New Gasket
Never reuse an old oil pan gasket. When you install your new pan, use a high-quality new gasket. Consider following the GM TSB procedure by applying a thin, even bead of RTV sealant to the gasket to prevent future leaks, especially since aftermarket pans can also have slight imperfections.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $103.49 - $214.02 |
| New OEM Oil Pan | $250 - $400+ (if available) |
| Shop Labor | $350 - $600 |
| Total Professional Replacement (Aftermarket) | $450 - $815 |
Frequently Asked Questions
Is replacing the oil pan on a 1998-2005 Regal a DIY job?
This is a difficult DIY job. To get the oil pan off, you often need to lift the engine and remove the passenger-side motor mount. On some models, you may even need to drop the subframe slightly. It requires an engine hoist or a secure way to support the engine, along with a good set of tools. If you are not an experienced mechanic, this job is best left to a professional.

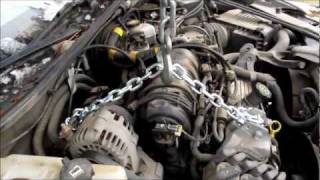

🎬 Watch this walkthrough to see the oil pan replacement process.Do I need to replace the oil pan or just the gasket?
If your pan is rusted, damaged, or has stripped drain plug threads, you must replace it. Given the known issues with the original pans having uneven sealing surfaces, and the difficulty of the replacement job, it is highly recommended to replace the pan and gasket at the same time. This prevents you from having to do this labor-intensive job twice if a new gasket on the old pan still leaks.
What engine oil should I use after replacing the pan?
For the 3.8L V6 engine in the 1998-2005 Buick Regal, the recommended oil is typically 5W-30 or 10W-30, depending on your climate. Always check your owner's manual for the exact specification and fill capacity after the new pan is installed.
Will a new oil pan fix my low oil pressure light?
If the low oil pressure light was on because of a very low oil level from a major leak, then yes, replacing the pan and refilling the oil will solve the problem. However, if the oil level was correct and the light was still on, you may have a different problem, such as a failing oil pump or a bad oil pressure sensor.
Helpful Videos
Technical Specifications
OEM Part Numbers: 24502397
Fits 1998-2005 Buick Regal models, primarily with the 3.8L V6 engine (VIN K or VIN 1). The pan is typically made of stamped steel. The gasket is a one-piece design that often incorporates a windage tray.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
