Engine Timing Cover Gasket Set Guide for 1998-2005 Buick Regal
Stopping oil and coolant leaks on your Regal's 3.8L V6 starts right here.
- The timing cover gasket on the 3.8L V6 is a common failure item that can leak both oil and coolant.
- This is a labor-intensive repair; the high cost comes from shop time, not the part itself.
- While the timing cover is off, it is smart to also replace the water pump, thermostat, and front crank seal.
- Check for oil leaks from the valve cover gaskets, which were part of a major fire-risk safety recall.
Is Your Regal Leaking from the Front?
A puddle under the front of your 1998-2005 Buick Regal is a common sight as these cars age. The 3.8L V6 engine is known for reliability, but its gaskets are not. 🎬 Watch: Identifying common oil leaks on the 3.8L engine The timing cover gasket, in particular, is a frequent source of oil or coolant leaks. The original factory gasket was often a simple paper or felt design that breaks down over time. When it fails, you'll see leaks that can lead to bigger problems if ignored.
Symptoms of a Bad Timing Cover Gasket
The signs of a failing gasket are usually easy to spot. Look for the following:
- Visible Leaks: You may see engine oil or orange/green coolant dripping from the front of the engine, often from behind the main crankshaft pulley (the harmonic balancer).
- Low Fluid Levels: You might find yourself constantly topping off your oil or coolant.
- Engine Overheating: A significant coolant leak can cause the engine to run hotter than normal or overheat completely.
- Burning Smell: Oil leaking onto hot engine parts, like the exhaust manifold, will create a distinct burning oil smell.
Related Safety Recall: Check Your Valve Covers
While not for the timing cover gasket, GM issued major safety recalls for the 1998-2005 Regal because the valve cover gaskets could leak oil onto the hot exhaust manifold, creating a serious fire risk. When you are inspecting for timing cover leaks, it is critical to also check the valve covers, which are higher up on the engine. Any oil leak on this engine should be fixed immediately.
🎬 See how to replace leaking valve cover gasketsChoosing the Right Aftermarket Gasket Set
You don't need to go to a dealer for a quality part. Aftermarket gaskets often use better materials than the original factory part. Here’s a look at the brands available, from good to best.
| Brand Tier | Brands | Honest Assessment |
|---|---|---|
| Standard Aftermarket | Apex | Apex provides a reliable, budget-friendly option that meets standard replacement needs. Feedback on this brand is generally positive for everyday repairs. It's a good choice if you're looking for a cost-effective fix. |
| OEM-Quality | Victor Gaskets (Victor Reinz) | Victor Reinz is a well-respected brand that is an original equipment manufacturer for many European cars. Their gaskets are known for excellent material quality and fit, often considered a step up from standard aftermarket parts. |
| High-Performance | Cometic Gasket | Cometic is a top-tier brand known for its Multi-Layer Steel (MLS) gaskets, favored by engine builders and performance enthusiasts. While it may be overkill for a stock daily driver, a Cometic gasket offers the highest level of durability and sealing, especially if the engine surfaces are not perfectly flat. |
While You're In There...
Replacing the timing cover gasket is a labor-intensive job. Since you'll have the front of the engine apart, it is highly recommended to replace a few other inexpensive parts at the same time to save on future labor costs. Consider replacing the water pump, thermostat, front crankshaft seal, and the plastic coolant elbows if they haven't been upgraded to metal ones yet.
🎬 Watch: How to replace the plastic coolant bypass elbowsFrequently Asked Questions (FAQ)
Is this a difficult repair to do myself?
For a beginner, this is a challenging job. It requires draining fluids, removing many parts to access the cover, and using a special tool called a harmonic balancer puller. For an experienced DIY mechanic, it is very doable but time-consuming. If you are not comfortable, it is best to leave this repair to a professional shop.
What is RTV, and do I need it?
RTV stands for Room Temperature Vulcanizing silicone. It's a gasket maker used to seal corners and uneven surfaces. You will need to apply a small dab of RTV in the corners where the timing cover meets the oil pan to prevent leaks. Some mechanics also apply a thin layer around the coolant ports of the gasket for extra security.
Can a bad timing cover gasket cause my oil and coolant to mix?
Yes. Because the timing cover has passages for both oil and coolant, a severe gasket failure between these passages can allow the fluids to mix. This will result in a milky, milkshake-like appearance in your oil or coolant. If you see this, stop driving the vehicle immediately as it can cause catastrophic engine damage.
Why is the shop quote so high if the part is cheap?
The cost is almost entirely due to labor. The repair can take a professional mechanic between 5 and 8 hours. The process involves removing the serpentine belt, tensioner, alternator, power steering pump, harmonic balancer, and draining fluids just to get to the cover.
Helpful Videos
Technical Specifications

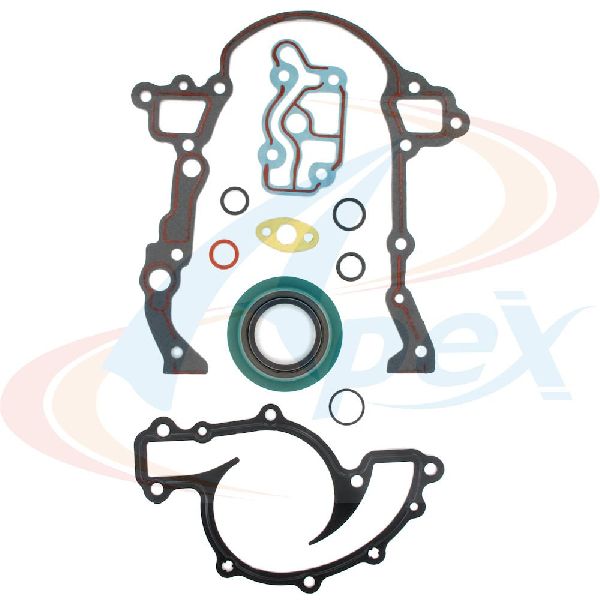

The timing cover on the GM 3.8L V6 (RPO L36 and L67) is a large aluminum casting on the front of the engine. The gasket set seals this cover, which contains the oil pump passages and coolant crossovers.
