A Practical Guide to the 1998-2005 GMC Jimmy A/C Compressor Clutch
If your Jimmy's air conditioning is blowing warm, the A/C clutch might be the culprit, and you may not need a whole new compressor.
- A warm A/C is often caused by a failed clutch, but first check for low refrigerant, which prevents engagement.
- You can usually replace just the clutch without replacing the entire compressor, saving significant money.
- New aftermarket clutches from brands like Four Seasons are a cost-effective option for this vehicle, but avoid remanufactured units if possible.
- Replacing the clutch requires special tools and setting the correct 'air gap' is critical for the new part to work properly.
Is Your GMC Jimmy's A/C Clutch Failing?
On the 1998-2005 GMC Jimmy, the A/C system is generally reliable, but after years of service, the compressor clutch is a common failure point. The clutch works hard, engaging and disengaging thousands of times. Symptoms of a failing clutch should not be ignored, as they can sometimes lead to the bearing seizing, which can damage the serpentine belt.
Symptoms of a Bad A/C Clutch
- A/C Blows Warm or Intermittently Cold: This is the most common sign. The clutch may fail to engage, or it might slip, causing inconsistent cooling.
- Visible Inactivity: With the engine running and A/C on, you can see the clutch at the front of the compressor. The outer plate should be spinning with the pulley. If only the pulley is spinning and the outer plate is still, the clutch is not engaging.
- Grinding or Squealing Noises: A loud grinding or squealing noise when the A/C is turned on can point to a worn-out clutch bearing. If the noise is present even when the A/C is off, the pulley bearing is likely bad.
- Blown Fuse: If the A/C fuse in your Jimmy blows when you turn it on, it could be caused by a short in the clutch's electromagnetic coil.
Pro Tip: Is it the Clutch or Low Refrigerant?
Your Jimmy's A/C system has a low-pressure switch that prevents the clutch from engaging if the refrigerant (R134a) is too low. This is a safety feature to protect the compressor. Before you condemn the clutch, it's wise to have the system pressure checked. A simple recharge might be all you need.
Choosing a New Aftermarket A/C Clutch
For a vehicle like the 1998-2005 Jimmy, buying a new aftermarket clutch is a smart, cost-effective repair. The original GM parts are often expensive or hard to find new. Aftermarket brands provide a practical alternative.
It is almost always better to buy a complete new clutch kit (plate, pulley, and coil) rather than just one piece. You will also need specific tools, including snap ring pliers and a clutch puller/installer kit, which can often be rented from auto parts stores.
Available Aftermarket Brands

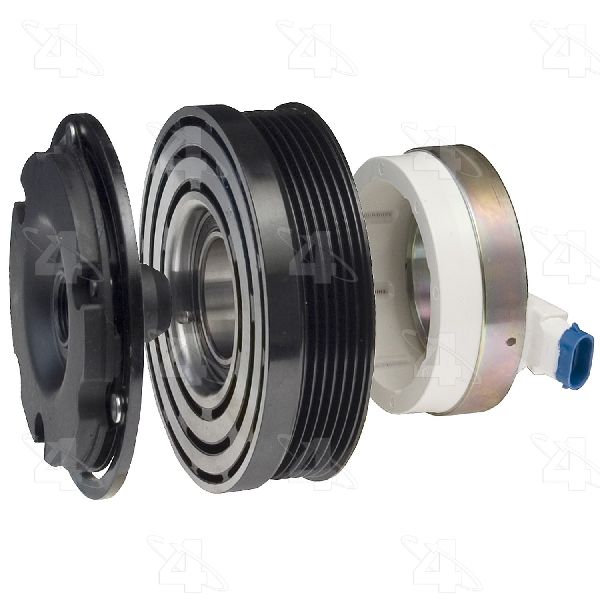

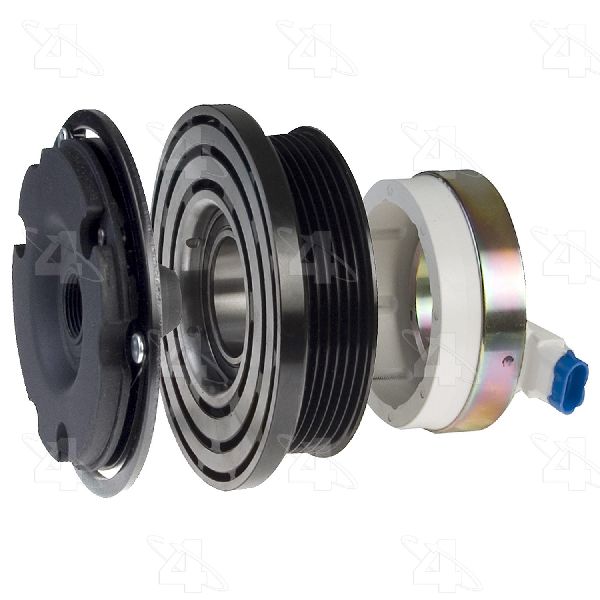

- Four Seasons: This is a very common aftermarket brand. Reviews are often mixed; some users report they work great for years, while others have experienced early failures, particularly with remanufactured units. For the best results, choosing a *new* Four Seasons part over a remanufactured one is recommended.

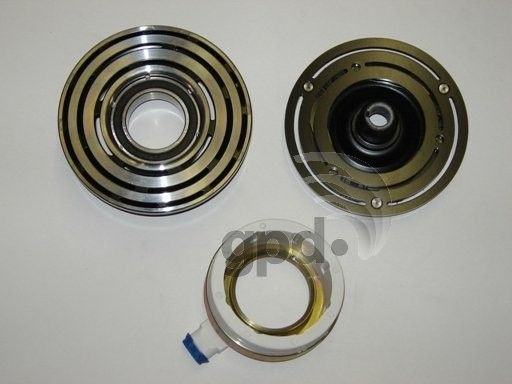

- Global Parts Distributors (GPD): This is another aftermarket option. There is less specific feedback available for GPD clutches on this vehicle, but some forum users have reported failures within a year.
Given the options, a new clutch from a reputable brand like Four Seasons is a reasonable choice for keeping an older Jimmy's A/C running without breaking the bank.
No Recalls or TSBs Found
A search of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls or Technical Service Bulletins (TSBs) specifically related to the A/C compressor clutch for the 1998-2005 GMC Jimmy.
Cost to Replace A/C Compressor Clutch on a 1998-2005 GMC Jimmy
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket A/C Clutch Kit | $115 - $175 |
| Shop Labor for Clutch-Only Replacement | $250 - $450 |
| Total Professional Clutch Replacement | $365 - $625 |
| Total Professional Full Compressor Replacement | $727 - $1,111 |
Costs are estimates and will vary by location and shop. Replacing only the clutch avoids the cost of refrigerant recovery and recharge, saving money.
Frequently Asked Questions
Do I have to replace the whole A/C compressor?
Not usually. If the compressor itself isn't leaking or making noise internally, you can often just replace the clutch assembly. This is a much cheaper repair because it doesn't require opening the sealed refrigerant system.
How can I test my Jimmy's A/C clutch?
A simple test is to supply 12-volt power directly from the battery to the clutch's electrical connector. With the engine off, you should hear a distinct 'click' as the clutch plate engages. If it clicks, the coil is likely good, and the problem may be in the wiring, relay, or pressure switches. If it doesn't click, the coil is likely bad.
What is an A/C clutch air gap?
The air gap is the tiny space between the clutch plate and the pulley. This gap must be within a specific tolerance (usually around 0.020-0.035 inches). If it's too wide, the electromagnet won't be strong enough to pull the plate in, especially when hot. New clutch kits come with small washers called shims to set this gap correctly during installation.
Is replacing the A/C clutch a DIY job?
For an experienced DIY mechanic, yes. However, it requires special tools like a clutch puller and snap-ring pliers. Access can be tight, but it's often possible to do the job by unbolting the compressor and shifting it for better access without disconnecting the refrigerant lines. If you are not comfortable with this, a professional repair is the best choice.
Technical Specifications
OEM Part Numbers: 10306089 1136517 1520331
Fits vehicles with the GM HT6 Compressor. Verify the compressor model on your vehicle before ordering.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
