Transmission Pan Guide for the 1998-2005 GMC Jimmy
Stop transmission fluid leaks and protect your 4L60-E transmission with the right replacement pan.
- The 1998-2005 GMC Jimmy uses the 4L60-E transmission, which typically has a "deep" style pan.
- An aftermarket pan is a cost-effective choice and often includes a drain plug for easier future service, an upgrade over many stock pans.
- Always replace the pan gasket and transmission filter when replacing the pan.
- Do not overtighten the pan bolts; torque them to 8-9 ft-lbs to avoid warping the pan and causing leaks.
Signs of a Failing Transmission Pan
The most common reason to replace the transmission pan on your GMC Jimmy is damage or leaks. A leak is not just messy; it can lead to low fluid levels, causing poor shifting, transmission overheating, and eventually, catastrophic failure. Keep an eye out for these symptoms:
- Red or Brown Puddles: Finding spots of reddish-brown fluid on your driveway is the most obvious sign of a leak. The transmission pan gasket is a common source, but the pan itself can also be the culprit.
- Visible Damage or Rust: During an oil change, inspect the pan. Dents from road debris, deep scrapes, or heavy rust are all reasons to consider a replacement. A warped pan from overtightening bolts can also cause persistent leaks that a new gasket alone won't fix.
- Stripped Drain Plug: Many aftermarket pans feature a drain plug for easier fluid changes. If this plug is stripped or damaged, replacing the entire pan is often the easiest solution.
Don't Mistake Other Leaks
Fluid dripping from the edge of the pan isn't always a bad pan or gasket. Leaks from higher up, such as the cooler lines, dipstick tube seal, or electrical connector O-ring, can run down and mimic a pan leak. Always clean the area thoroughly and pinpoint the exact source before replacing parts.
Choosing an Aftermarket Transmission Pan
For a vehicle like the 1998-2005 GMC Jimmy, a new aftermarket transmission pan is a smart and affordable choice. The original factory pans were simple stamped steel, and aftermarket versions from brands like Replacement or Dorman meet or exceed those original specifications.
A key advantage of many aftermarket pans is the inclusion of a drain plug, which the original GM pan often lacked. This makes future fluid changes much cleaner and easier. Since the Jimmy uses the common 4L60-E transmission, there are plenty of high-quality, direct-fit options available. These pans are designed to work with the stock "deep" pan filter that is standard on most trucks and SUVs like the Jimmy.
Deep Pan vs. Shallow Pan
The 4L60-E transmission was available with a shallow or deep pan. Trucks and SUVs like the GMC Jimmy almost always came from the factory with the deep pan, which has a noticeable "step" in the bottom. Aftermarket replacements are typically modeled after this deep pan. Always confirm you are using the correct corresponding filter for your pan depth.
🎬 See how to identify a shallow versus a deep pan.Estimated Replacement Costs
The cost to replace a transmission pan is relatively low, especially if you do the work yourself. The main expenses are the pan, a new gasket, and fresh transmission fluid.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Transmission Pan | $110 - $180 |
| New Aftermarket Transmission Pan | $60 - $90 |
| Used OEM Transmission Pan | $25 - $50 |
| Shop Labor | $100 - $185 |
Frequently Asked Questions (FAQ)
Do I need to buy a new gasket and filter?
Yes. Never reuse an old transmission pan gasket. A new gasket is essential for a leak-free seal. Since you have to remove the pan to access the filter, it is highly recommended to replace the filter at the same time. This is a critical maintenance item.
🎬 Watch this step-by-step fluid and filter change on a Blazer.Is an aftermarket pan as good as the original?
For this application, yes. An aftermarket stamped steel pan is functionally identical to the original. Brands like Replacement and Dorman produce reliable parts that fit correctly and often include the benefit of a drain plug. For a simple component like a pan, there is no significant quality difference compared to OEM for a daily-driven vehicle.
What kind of transmission fluid should I use?
Your 1998-2005 GMC Jimmy originally used DEXRON-III fluid. Modern DEXRON-VI fluid is fully synthetic, backward-compatible, and an excellent upgrade that offers better performance and longevity. You will need approximately 5-6 quarts for a pan drop and filter change.
How tight should the pan bolts be?
Overtightening is a common mistake that can warp the pan and crush the gasket, causing leaks. The correct torque specification for the 4L60-E pan bolts is low, around 8-9 ft-lbs (or 97-108 inch-pounds). Tighten the bolts in a crisscross pattern to ensure even pressure.

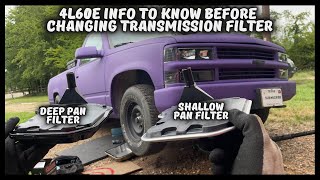

🎬 Check out these essential tips before starting your 4L60E service.Helpful Videos
Technical Specifications
OEM Part Numbers: 24209295 24215535 24229658 24240207
Fits the GM 4L60-E 4-speed automatic transmission. Typically a 'deep' pan design with 16 bolt holes. Aftermarket versions are usually stamped steel and often include a drain plug.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
