A Guide to Replacing Ignition Coils on a 1998-2005 Lincoln Navigator
Fix your Navigator's engine misfires and rough idle by understanding how to choose the right aftermarket ignition coils.
- Water leaking into the spark plug wells is a very common cause of ignition coil failure on 1998-2005 Navigators; inspect and fix any leaks before replacing coils.
- For best results, replace all eight ignition coils and spark plugs at the same time, especially if they are original to the vehicle.
- Premium aftermarket brands like Denso and MSD are considered reliable alternatives to more expensive OEM Motorcraft coils.
- The replacement is a manageable DIY job for most owners, with the main difficulty being access to the rear cylinders.
Is Your Navigator Running Rough? It Could Be the Ignition Coils
If your 1998-2005 Lincoln Navigator is experiencing a rough idle, poor acceleration, or the check engine light is flashing, faulty ignition coils are a very common cause. These vehicles are known for ignition coil failures, which can lead to noticeable engine misfires. The problem is often straightforward to diagnose and is a repair many owners can perform themselves.
A Known Issue: Water Intrusion
A primary cause of ignition coil failure on the 5.4L V8 engine in this generation of Navigator is water getting into the spark plug wells. Leaks from the cowl area or heater hoses can drip onto the engine, allowing moisture to pool around the coils. This water can short out the coil and the spark plug, leading to repeated failures. Before replacing coils, it's critical to inspect for and repair any potential sources of water leaks to prevent the new parts from failing prematurely.
Symptoms of a Failing Ignition Coil
When an ignition coil starts to go bad, the signs are usually hard to ignore. Because each cylinder has its own coil, a single failure can make the entire V8 engine feel unbalanced and weak. Look out for these common symptoms:
- Engine Misfires: The engine may shake, hesitate, or stumble, especially during acceleration.
- Rough Idle: The vehicle may vibrate or run unevenly when stopped.
- Check Engine Light: A flashing or solid check engine light is common. Codes P0300 through P0308 often indicate a cylinder-specific misfire (e.g., P0301 for cylinder 1). 🎬 Watch this diagnostic walkthrough for a cylinder 4 misfire code.
- Reduced Power and Fuel Economy: The engine isn't burning fuel efficiently, leading to sluggish performance and more trips to the gas station.
- Stalling: In more severe cases, the engine may stall completely.
Choosing the Right Aftermarket Ignition Coils
While OEM Motorcraft coils are a reliable benchmark, the aftermarket offers a wide range of options. Not all aftermarket coils are created equal, so it's important to choose a reputable brand to avoid replacing them again in a few thousand miles. Based on owner feedback and brand reputation, aftermarket coils can be grouped into tiers.
Premium Aftermarket Brands: ($50 - $75+ per coil)

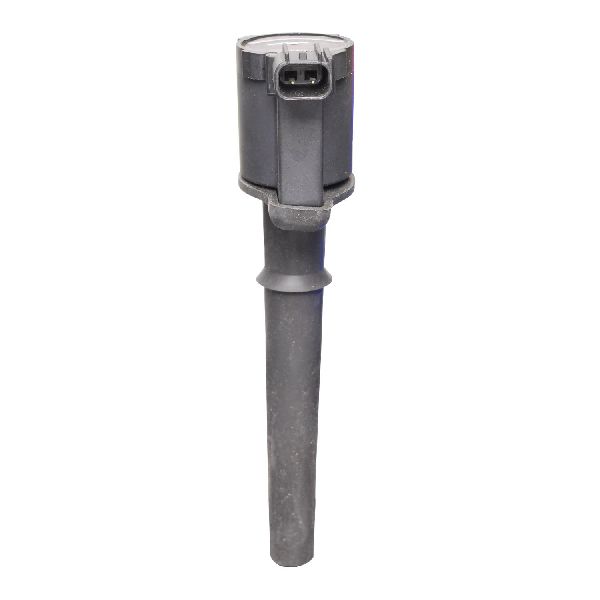

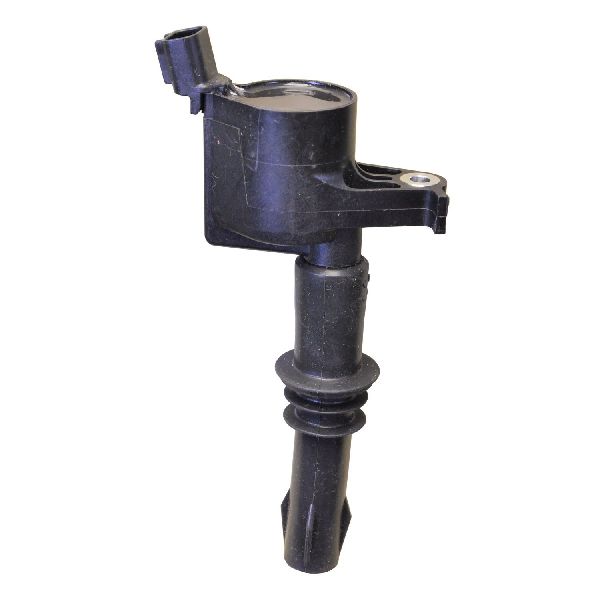

- Denso & MSD: These brands are well-regarded in forums and are known for producing high-quality ignition components that often meet or exceed OEM specifications. They are an excellent choice for owners seeking long-term reliability and performance.
- Accel: Often considered a performance upgrade, Accel coils are another popular choice for those looking for a robust replacement.
Standard Aftermarket Brands: ($30 - $50 per coil)

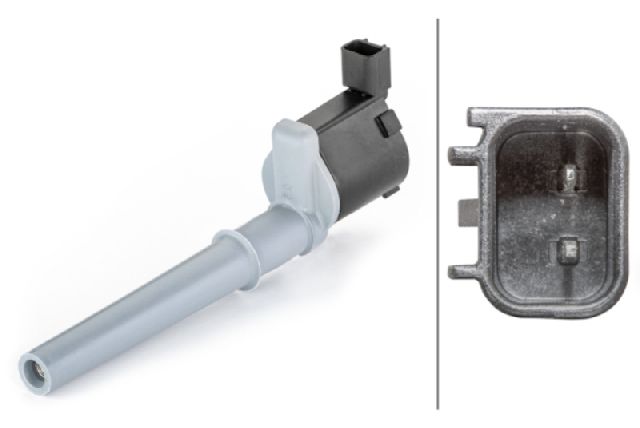

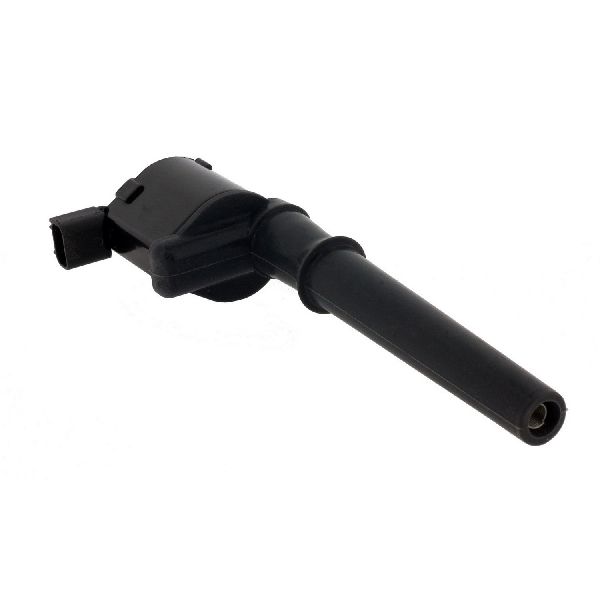

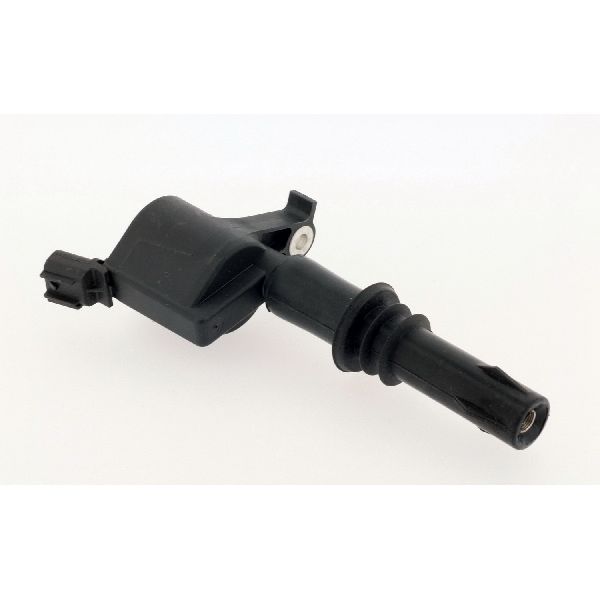

- Hella & Prenco: These brands provide a good balance of quality and value. They are a solid option for daily driving and are generally more reliable than the cheapest options available. 🎬 See a comparison of the best coil brands for this engine.
Economy & Performance-Focused Brands: ($20 - $40 per coil)
- Granatelli: This brand often markets itself as a high-performance option. However, owner reviews are mixed, with some reporting fragility and troubleshooting issues after installation.
- Unbranded/Store Brands: While very affordable, the cheapest coil packs found online or in some auto parts stores have a reputation for high failure rates. It may be tempting to save money, but doing the job twice will cost more in the long run.
Pro Tip: Replace Coils and Plugs in Sets
If one ignition coil has failed and the others are original, it is highly recommended to replace all eight coils at once. The others are likely near the end of their service life. Since you already have everything apart, replacing the spark plugs at the same time is a cost-effective way to ensure a complete tune-up and prevent future misfires. Always replace the rubber coil boot and spring with the coil.
Cost to Replace Lincoln Navigator Ignition Coils
| Part Type | Estimated Cost (Set of 8) |
|---|---|
| New OEM (Motorcraft) | $400 - $600 |
| New Aftermarket | $170 - $585 |
| Shop Labor | $150 - $300 |
Frequently Asked Questions
Should I replace all 8 ignition coils at the same time?
Yes. If the coils are the same age, the failure of one is a strong indicator that others will fail soon. Replacing all eight at once saves you from having to do the same repair multiple times and is the most reliable approach. It's also the best time to change your spark plugs.
What is a coil boot and why is it important?
The coil boot is the rubber sleeve that connects the ignition coil to the spark plug. It insulates the high-voltage connection and keeps moisture and debris out of the spark plug well. It's critical to replace the boot and its internal spring every time you replace a coil to ensure a good connection and prevent misfires. Applying a small amount of dielectric grease to the inside of the boot can make installation easier and help seal out moisture.
Is replacing the ignition coils a difficult job?
For most owners with basic mechanical skills, this is a very doable DIY project. The coils are located on top of the engine and held by a single 7mm bolt. The main challenge is accessing the rearmost coils, which may require removing the air intake tube or moving the power steering reservoir to create more room. The entire job can typically be completed in 1 to 2.5 hours.

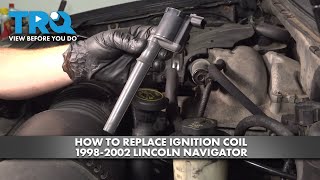

🎬 Follow this step-by-step guide to replace your Navigator's ignition coils.Why did my new aftermarket coil fail so quickly?
Premature failure of a new coil is often caused by an underlying issue. The most common cause is continued water intrusion into the spark plug well. Other causes include a worn-out or incorrectly gapped spark plug, a damaged wiring connector, or simply a poor-quality part from an economy brand.

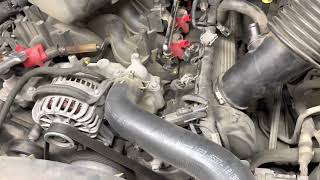

Helpful Videos
Technical Specifications
OEM Part Numbers: 3L3Z-12029-BA 4L7Z-12029-AA F7LZ-12029-AC 1L2U-12029-AA
The 1998-2005 Lincoln Navigator with the 5.4L V8 engine uses a Coil-on-Plug (COP) system with 8 individual ignition coils. Each coil is secured by a single 7mm or 8mm bolt. The electrical connector is a simple push-tab design.
