Lincoln Navigator Cylinder Head Temperature (CHT) Sensor Guide for 1998-2005 Models
Don't let a bad sensor cause engine damage—understand the critical temperature sensor in your Navigator's 5.4L V8.
- Your 1998-2005 Navigator uses a Cylinder Head Temperature (CHT) sensor, not a standard coolant sensor.
- Replacement is a difficult, labor-intensive job because the sensor is located under the intake manifold.
- Common failure symptoms include an erratic temperature gauge, overheating, and Check Engine Light codes like P0117 or P1299.
- For best results, use an OEM Motorcraft or a premium aftermarket sensor from a brand like NTK or Delphi and inspect the wiring connector for damage.
Understanding Your Navigator's Temperature Sensor
If you're searching for an "Engine Coolant Temperature Sensor" for your 1998-2005 Lincoln Navigator, you might be confused. These trucks use a Cylinder Head Temperature (CHT) sensor. It does the same job—telling the computer how hot the engine is—but it measures the temperature of the metal cylinder head instead of the liquid coolant. This is a critical distinction when ordering a new part.
Symptoms of a Failing CHT Sensor
A bad CHT sensor can leave you stranded or cause long-term engine problems. Because the computer gets bad information, the engine doesn't know how to run properly. Look for these common signs:
- Check Engine Light: The most common sign is a check engine light with codes like P0117 (low input), P0118 (high input), or P1299 (cylinder head over-temperature protection active). 🎬 Learn more about causes and fixes for the P1299 code.
- Erratic Temperature Gauge: The gauge on your dashboard might shoot straight to HOT moments after starting, or it may not move at all.
- Engine Overheating: A faulty sensor may not signal the cooling fans to turn on, leading to actual overheating, especially in traffic.
- Poor Performance: You may experience reduced power, terrible fuel economy, rough idling, stalling, and even black smoke from the exhaust.

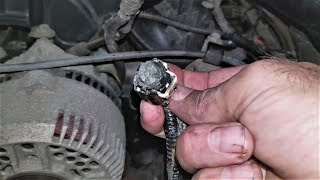

- Hard Starting: The engine may crank for a long time before it starts, or it may not start at all. 🎬 Watch a diagnosis of hard starting issues on the 5.4L engine.
A Note on Recalls
While there are no specific recalls for the CHT sensor, this generation of Navigator was part of a major Ford recall (NHTSA ID 05V-388) for a faulty cruise control deactivation switch that could cause a fire. It is worth checking if this repair was performed on your vehicle.
Choosing the Right Aftermarket CHT Sensor
Because this sensor is so critical to engine management, part quality matters. While OEM Motorcraft is always a safe bet, several aftermarket brands offer reliable alternatives.
- Premium Aftermarket (OEM-Equivalent): Brands like NGK (NTK) and Delphi have a strong reputation for producing sensors that meet or exceed original equipment specifications. They are engineered to communicate flawlessly with your Navigator's computer, just like the original part.
- Standard Replacement: Brands such as Standard Ignition (SMP), Walker Products, and Holstein offer a good balance of quality and value. They are a dependable choice for a daily driver and are often easier to find.
- Budget-Friendly: Options from Facet and Global Parts can get your truck back on the road for less. While they meet the basic fit and function requirements, their long-term durability and electronic precision may not match premium brands.
Pro Tip: Check the Wiring
The CHT sensor is buried in a high-heat area of the engine. The wiring connector often becomes brittle and can be damaged during replacement. Always inspect the wiring pigtail and replace it if it shows any signs of cracking or damage to avoid future problems.
| Item | Estimated Cost |
|---|---|
| New Aftermarket CHT Sensor | $15 - $82 |
| New OEM (Motorcraft) CHT Sensor | $25 - $40 |
| Shop Labor | $400 - $800+ |
| Total Estimated Cost (Shop Repair) | $425 - $882+ |
Note: Labor costs are high because replacing the CHT sensor on the 5.4L V8 typically requires removing the entire intake manifold.
Frequently Asked Questions
Where is the CHT sensor located?
The CHT sensor is located on the driver's side cylinder head, underneath the intake manifold, between the intake runners. Its location makes it very difficult to access without removing other components.
Can I replace the CHT sensor myself?
This is a difficult job for a DIY mechanic. Most professional methods require removing the entire intake manifold, which is a 3-5 hour job. While some have managed to do it by only removing the alternator and using special tools, it is not recommended for beginners.
🎬 See this walkthrough of the full intake manifold removal process.Is there a difference between the sensor for the gauge and the computer?
No, on the 1998-2005 Navigator, the single CHT sensor provides the temperature reading for both the engine computer (PCM) and the dashboard temperature gauge.
Why is the labor cost so high for a cheap part?
The cost is almost entirely due to the sensor's inaccessible location. A mechanic must spend several hours removing the intake manifold and other parts just to reach the sensor, and then put it all back together.
Helpful Videos
Technical Specifications
OEM Part Numbers: F65Z-6G004-AB 3L7Z-6G004-BA DY1144
This is a 2-pin thermistor sensor that screws into the cylinder head. It is not submerged in coolant.
