Ignition Lock Cylinder Guide for 1998-2005 Lincoln Navigator
Everything owners need to know about fixing ignition lock problems on the first-generation Lincoln Navigator.
- The biggest challenge is the PATS anti-theft system. Using a kit that lets you re-key the cylinder to your original key can save money and time.
- Common symptoms include the key being hard to turn, the engine not cranking, or the engine starting and immediately stalling.
- This is a DIY-friendly repair if you are comfortable removing steering column trim and understand the key-swapping process.
- Brands like Standard Ignition and Dorman offer reliable aftermarket alternatives to the more expensive Motorcraft OEM part.
Is Your Ignition Lock Cylinder Failing?
A worn-out ignition lock cylinder in a 1998-2005 Lincoln Navigator can cause frustrating and immobilizing problems. Because this part is both mechanical and electronic, symptoms can vary. 🎬 Watch a guide on common failing ignition cylinder symptoms. The most common issue is the key becoming difficult to turn or getting stuck in the cylinder. This happens as the internal tumblers wear down over time. You might also find that the key goes in, but the engine refuses to crank, or it starts for a second and then immediately stalls, which often points to a problem with the anti-theft system.
Common Failure Symptoms
- Key Won't Turn: The key feels jammed and won't rotate to the 'ON' or 'START' position. This can be caused by worn tumblers inside the cylinder or a binding steering lock.
- Engine Doesn't Start: You can turn the key, but nothing happens. The electrical contacts inside the connected ignition switch may not be engaging properly.
- Starts and Stalls: The engine fires up but shuts off after a couple of seconds. This is a classic sign that the PATS anti-theft system isn't recognizing your key's transponder chip.
- Flashing Theft Light: A rapidly blinking theft light on the dashboard when you try to start the vehicle indicates a PATS security system error.
- Key is Stuck: You can't remove the key from the ignition, even when in the 'OFF' position.
The PATS Anti-Theft System is Key
Your 1998-2005 Navigator uses a transponder key (PATS). The new lock cylinder must be able to work with your vehicle's computer. Some aftermarket kits come with new keys that are not programmed, while others are designed to be re-keyed to match your original, chipped key. Re-keying the new cylinder to your old key is often the most straightforward way to avoid expensive key reprogramming.
Choosing the Right Aftermarket Ignition Lock Cylinder
When replacing the ignition lock cylinder, you have several options. The choice often comes down to budget and how you plan to handle the key situation.
Brand Quality Tiers
- Motorcraft (OEM): As the original Ford part, Motorcraft offers a guaranteed fit and function. It's the benchmark for quality but is also the most expensive option.
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand, Standard Motor Products provides parts that meet or exceed original specifications. They are a trusted choice for reliability and precision.
- Dorman: Dorman is a popular aftermarket brand known for providing cost-effective solutions. Some of their kits include new tumblers and springs, allowing you to re-code the new cylinder to your existing key, which can save you from reprogramming hassles.
- Replacement / Store Brands: These are budget-friendly options that get the job done. They may not have the same longevity or include the same re-keying features as premium brands, but they offer a functional repair at a lower cost.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $33 - $131 |
| New OEM (Motorcraft) Part | $70 - $157 |
| Shop Labor | $97 - $161 |
| Total Professional Replacement | $195 - $300+ |
DIY Installation Tip
To remove the old cylinder, you typically need to insert the key and turn it to the 'ON' or 'RUN' position. Then, insert a small punch or Allen key into a release hole on the underside of the steering column shroud to depress a pin, allowing the cylinder to slide out. 🎬 Quick tip for releasing the ignition lock cylinder pin. If your key won't turn, you may need to drill out the old cylinder.
Frequently Asked Questions
Do I need to reprogram my key after replacing the cylinder?
If you use a kit that allows you to re-key the new cylinder to match your original PATS key, no reprogramming is needed. If you use the new, unprogrammed keys that come with some kits, you will need to have the keys programmed to the vehicle's computer by a locksmith or a dealer with the proper tools.
Can I do this replacement myself?
Yes, this is a feasible DIY job for many people. The main steps involve removing the plastic shrouds around the steering column and using a small tool to release the cylinder. The most significant challenge is dealing with the PATS key system. Watching a tutorial video for a similar Ford truck or SUV 🎬 See how to replace the ignition cylinder on a Navigator. is highly recommended.
What tools are required for the job?
You will typically need a set of screwdrivers (Phillips and flathead), possibly Torx bits for the steering column cover, and a small punch, pick, or Allen wrench to press the release pin for the cylinder.
Are there any recalls for this issue on my Navigator?
A search of the NHTSA database did not show any specific recalls for the ignition lock cylinder on the 1998-2005 Lincoln Navigator. Recalls found were for different model years or different components.

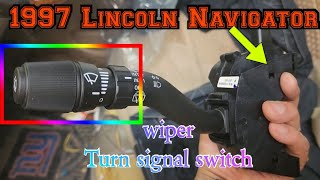

Helpful Videos
Technical Specifications
OEM Part Numbers: 1L3Z11582A 707624
Coded or uncoded cylinder with transponder key compatibility (Ford PATS).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
