Engine Camshaft Position Sensor Guide for the 1998-2005 Volkswagen Passat
Solve stalling, hard starts, and Check Engine Lights on your B5 Passat by understanding this critical engine sensor.
- For maximum reliability, choose the OEM brand, Bosch, for this critical sensor.
- Engine stalling is a common and dangerous symptom; do not delay this repair.
- Verify your engine type: the 1.8T uses one sensor, while the 2.8L V6 uses two.
- This is a DIY-friendly repair that can be done with basic tools in about an hour.
Understanding the Camshaft Position Sensor in Your Passat
If you own a 1998-2005 Volkswagen Passat, you have one of two common engines: the 1.8L Turbo (1.8T) four-cylinder or the 2.8L V6. The camshaft position sensor is critical for both, but it's important to know which engine you have before buying a replacement. The 1.8T engine uses one sensor, 🎬 See this step-by-step sensor replacement for the 1.8T engine. while the V6 engine requires two. This sensor reads a spinning wheel on the camshaft to know exactly when each cylinder is ready for fuel and spark. When it starts to fail, the signal it sends to the engine's computer becomes weak or incorrect, causing a range of noticeable problems.
Common Symptoms of a Failing Sensor
A bad camshaft position sensor doesn't usually fail silently. Your Passat will give you clear warning signs that something is wrong. The most common symptom is the Check Engine Light illuminating on your dashboard. You may also experience your engine suddenly stalling while driving or idling, which can be a serious safety risk. Other major signs include the engine being very hard to start, requiring long cranking times, or not starting at all. 🎬 Watch: Diagnosing a P0341 code and hard starting issues. Less severe, but still common, symptoms are a rough idle, poor acceleration, sputtering, and a noticeable drop in fuel economy.
🎬 Watch: 12 common signs of a failing camshaft sensor.Important Note on Engine Differences
The 1998-2005 Passat B5/B5.5 platform used different engines. The 1.8T 4-cylinder engine has one camshaft position sensor. The 2.8L V6 engine has two camshaft position sensors. Always verify your engine type to ensure you purchase the correct number of parts.
Choosing the Right Aftermarket Sensor
When it comes to critical electronic sensors for a Volkswagen, not all aftermarket brands are created equal. Using a low-quality part can lead to it failing quickly, causing the same problems all over again. It's best to choose a brand known for quality and reliability.

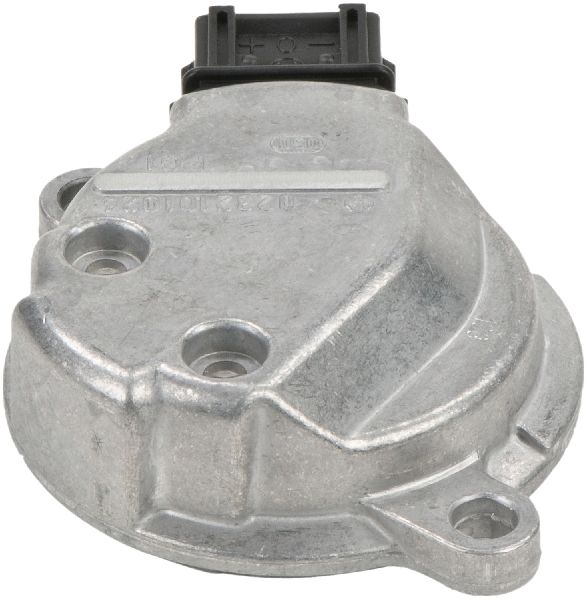

- Top Tier (OEM): Bosch is the Original Equipment Manufacturer (OEM) for this sensor. This means they made the original part for Volkswagen. Choosing a Bosch sensor is the safest bet for a perfect fit, correct performance, and long-term reliability.

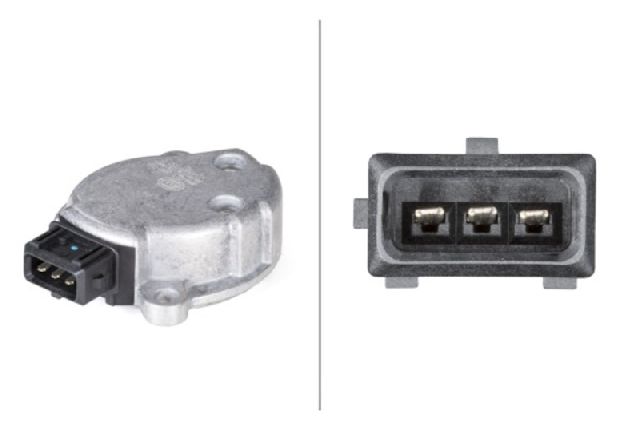

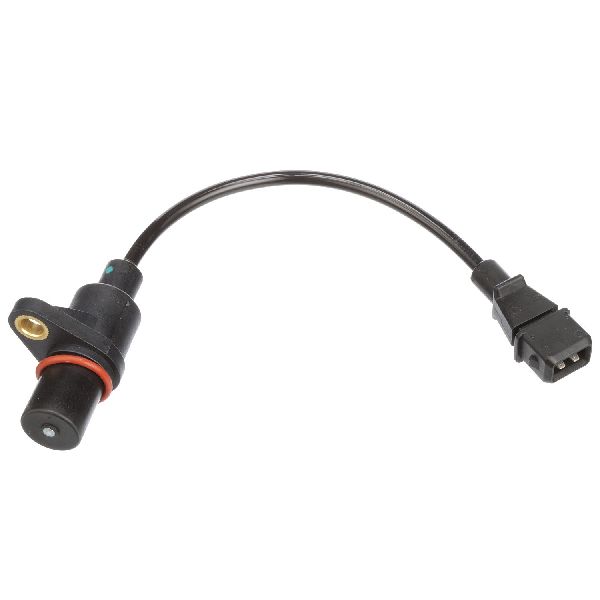

- Reputable Aftermarket: Brands like Hella and Delphi are well-known for producing quality electronic components that meet or exceed OEM standards. They are excellent alternatives to the OEM part and are often trusted by professional mechanics.
- Standard/Economy Tier: Brands like Standard Motor Products (SMP), Walker Products, and Beck Arnley offer a balance of affordability and acceptable quality. They can be a good choice for a daily driver on a budget, but for critical sensors, sticking to the top-tier brands is often recommended by VW owners.
- Budget Brands: Cheaper, lesser-known brands or unbranded parts carry a higher risk of failure. While the low price is tempting, these sensors can fail prematurely or provide an incorrect signal, leading to more diagnostic work and frustration.
Pro Tip: Check for Oil Leaks
When you remove the old sensor, check its electrical connector for engine oil. Oil inside the connector is a common issue that can cause the sensor to short out and fail. If you find oil, the sensor must be replaced. Also, be sure to replace the small O-ring seal to prevent future oil leaks.
Known Issues, Recalls, and Service Bulletins
Searches of the National Highway Traffic Safety Administration (NHTSA) database and technical service bulletin (TSB) libraries did not show any specific recalls or TSBs for the engine camshaft position sensor on the 1998-2005 Volkswagen Passat model years. While some diagnostic trouble codes like P0341 can sometimes be caused by a stretched timing chain or belt issue, the sensor itself is a common failure point.
Cost of Replacing the Camshaft Position Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $21 - $142 |
| New OEM (Bosch) Sensor | $75 - $150 |
| Shop Labor | $85 - $200 |
Note: Costs are estimates and can vary based on your location, the specific brand you choose, and your mechanic's labor rates. The V6 engine requires two sensors, which will increase the total part cost.
Frequently Asked Questions
Where is the camshaft position sensor located on my Passat?
On the 1.8T and V6 engines, the sensor(s) are located on the front of the engine near the top, on the cylinder head, close to the timing belt cover. You will likely need to remove the plastic engine cover and possibly the upper timing belt cover to access it. It is held in place by one or two small bolts.
Is this a difficult part to replace myself?
For a person with basic mechanical skills and tools, this is a very manageable DIY job. The difficulty is low, typically requiring only simple hand tools like a socket set. The entire job should take about an hour.
What happens if I don't replace a bad sensor?
Ignoring a failing camshaft position sensor is not recommended. The engine may stall at any time, which is a significant safety hazard, especially in traffic. Continuing to drive can also lead to a no-start condition, leaving you stranded, and may cause further stress on other engine components.
Could the P0341 code be something other than the sensor?
Yes. While the sensor itself is the most common cause, a P0341 code (Camshaft Position Sensor Circuit Range/Performance) can also be triggered by issues with the wiring harness, a bad connector, or incorrect engine timing from a slipped or worn timing belt/chain. However, if you are experiencing symptoms like stalling and hard starts, the sensor is the most likely culprit.
Helpful Videos
Technical Specifications
OEM Part Numbers: 058905161B
Typically a 3-pin Hall effect sensor. The V6 engine requires two.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
