Volvo C70 Disc Brake Hardware Guide (1998-2005): Stop Squeals and Rattles
Everything a first-generation C70 owner needs to know about replacing brake hardware for a quiet, solid stop.
- Always replace your disc brake hardware when you replace brake pads to prevent noise and ensure even wear.
- There are no major recalls or TSBs for the brake hardware on the 1998-2005 C70; problems are almost always due to wear or installation.
- High-quality aftermarket brands like Dynamic Friction (stainless steel) or Centric offer excellent performance, often better than the original parts.
- Thoroughly cleaning the caliper bracket and lubricating all metal-to-metal contact points is critical for a quiet brake job.
Why You Shouldn't Reuse Old Brake Hardware
When performing a brake job on your C70, it's tempting to save a few dollars by reusing the old hardware. This is a common mistake. The original clips and springs are constantly exposed to extreme heat, moisture, and road salt. Over tens of thousands of miles, they lose their spring tension, corrode, and get caked with brake dust. Reusing them can lead to annoying brake squeal, rattling noises, and uneven pad wear, forcing you to do the job all over again. For the low cost of a new kit, it is always best practice to replace the hardware every time you replace your brake pads.
Pro Tip: Clean and Lubricate
Proper installation is just as important as the parts themselves. Before installing the new hardware, thoroughly clean the caliper bracket contact points with a wire brush to remove all rust and debris. Apply a thin layer of high-temperature brake grease to the points where the new clips sit and where the brake pads touch the hardware. This prevents binding and ensures a quiet, long-lasting brake job.
Choosing the Right Aftermarket Hardware for Your C70
For the first-generation Volvo C70, the quality of aftermarket brake hardware is generally excellent, and often meets or exceeds the original factory parts. You don't need to pay a premium for a "Genuine Volvo" part to get a quality result. The key is choosing a reputable brand over a generic, no-name option. Here’s a breakdown of the available brands:

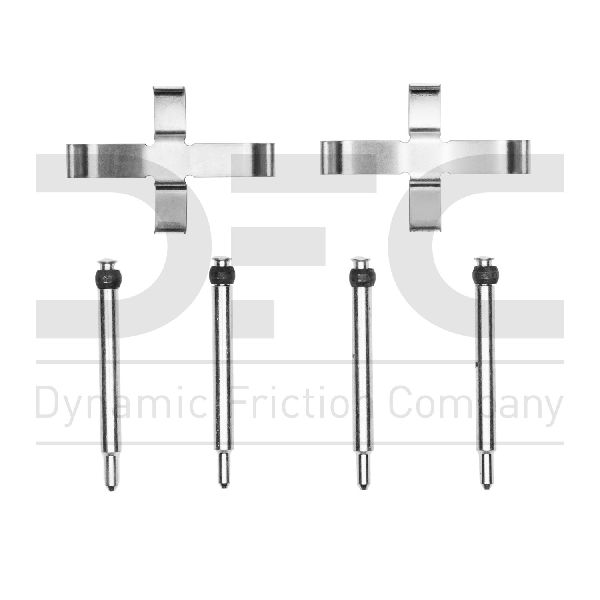

- Premium (Best): Dynamic Friction (DFC) is often considered a top-tier choice. Their hardware kits frequently use stainless steel components, which offer superior corrosion resistance compared to the zinc-plated steel found in many other kits. This is a great choice if you live in an area with heavy road salt use.

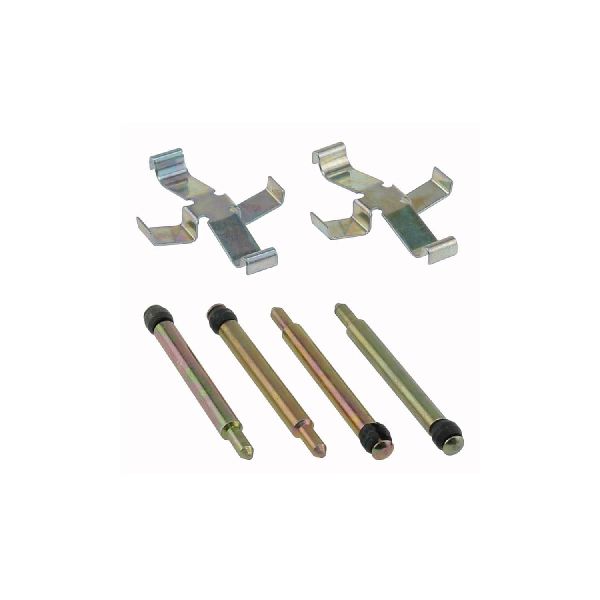

- Standard (Good): Centric and Carlson are well-respected brands that offer quality, reliable hardware that fits correctly. They are considered an industry standard and are a solid choice for any brake job. Forum discussions suggest that Centric, Raybestos, and Carlson are related companies, all producing dependable parts.
- Economy (Acceptable): Dorman is known for providing a wide range of aftermarket parts. While their hardware kits are functional, they are sometimes considered a more budget-oriented option. They are a perfectly acceptable choice for a daily driver under normal conditions.
A Note on Known Issues
The 1998-2005 Volvo C70 does not have any specific recalls or technical service bulletins (TSBs) from the NHTSA related to disc brake hardware. Most reported issues, like brake noise, are a result of worn parts, improper installation (like not cleaning or lubricating contact points), or using very low-quality components.
Cost of Replacing Disc Brake Hardware
The hardware kit itself is inexpensive. The cost is almost always bundled with a full brake pad and rotor replacement job.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Hardware Kit | $12 - $32 |
| Shop Labor (as part of a brake job) | $120 - $200 |
Frequently Asked Questions
Do I need different hardware for the front and rear brakes?
Yes. The front and rear brake calipers on your C70 are different sizes and designs, so they require specific hardware kits. Always make sure you are purchasing the correct kit for the axle you are working on.
Can bad brake hardware cause my brakes to drag?
Yes. If the hardware is corroded or installed incorrectly, it can prevent the brake pads from sliding back freely after you release the brake pedal. This can cause the pads to drag on the rotor, leading to premature wear, reduced fuel economy, and excess heat.
My new brakes are squealing. Could it be the hardware?
It's possible. Squealing is often caused by high-frequency vibrations. New, properly tensioned hardware is designed to prevent this. If you reused old hardware or if the new hardware was installed on a dirty caliper bracket without lubrication, it could be the source of the noise.
What tools are needed to replace the hardware?
Replacing the hardware is part of a standard brake job. For a 1998-2005 C70, you will typically need a wheel lug wrench (19mm socket), a jack and jack stands, a ratchet, a HEX/Allen socket (usually H7) for the caliper guide pins, and a wire brush for cleaning. A torque wrench is highly recommended for reassembly.
Technical Specifications

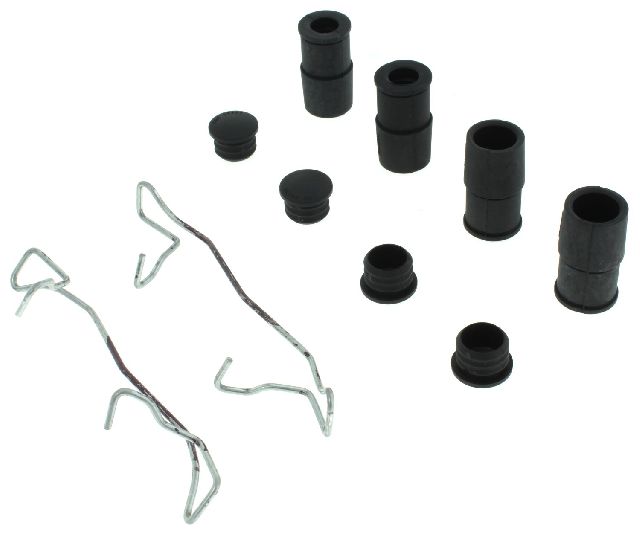

Kits typically include abutment clips and anti-rattle springs for a single axle (front or rear). Materials vary from zinc-plated steel to stainless steel. Ensure the kit matches your vehicle's specific brake system (front or rear).
