Lincoln Navigator Neutral Safety Switch Guide (1998-2006)
Experiencing no-start issues or strange gear behavior? Your neutral safety switch might be the culprit.
- A no-start where dashboard lights work but the engine won't crank is a primary symptom.
- If the Navigator starts in Neutral but not Park, the switch is the most likely cause.
- The part is located on the driver's side of the transmission and is accessible for a skilled DIYer.
- This part is also called a Transmission Range Sensor (TRS); a P0705 code points directly to it.
Is Your Navigator's Neutral Safety Switch Failing?
A faulty neutral safety switch can cause a range of frustrating and potentially dangerous problems. Because it plays a key role in both starting the engine and communicating gear position, symptoms can be confusing. You might think you have a bad starter or a dead battery when the switch is the real issue. Ignoring a failing switch is not recommended, as it can leave you stranded or create a serious safety hazard.
Common Symptoms of a Bad Switch
If your Navigator is experiencing any of these issues, it's time to inspect the neutral safety switch:
- No Start in Park or Neutral: The most common symptom is a no-crank, no-start condition. You turn the key, the dashboard lights come on, but the engine doesn't even try to turn over.
- Starts in Neutral but Not Park (or Vice Versa): If the vehicle only starts in one of the two correct gears, it's a classic sign that the switch is failing or out of alignment.
- Starts in Any Gear: This is a critical safety failure. If the engine can start while in Drive or Reverse, the switch is shorted internally and must be replaced immediately to prevent accidental movement.
- Check Engine Light: A failing switch can trigger the Check Engine Light. A common trouble code associated with this part is P0705, indicating a malfunction in the transmission range sensor circuit.
- Reverse Lights Don't Work: Since the switch also controls the backup lights, a failure can cause them to stop working, which is a safety issue on its own.
Choosing Your Aftermarket Replacement Part
For the 1998-2006 Lincoln Navigator, the neutral safety switch is mounted on the driver's side of the transmission. When choosing a replacement, you have a few options outside of the expensive dealership part.
Aftermarket Brand Comparison
| Brand | Our Assessment | Notes |
|---|---|---|
| Standard Ignition (Standard Motor Products) | Professional's Choice | Standard Motor Products (SMP) is a well-regarded brand in the aftermarket, known for producing quality components that meet or exceed OEM specifications. Mechanics often trust SMP for electrical parts due to their reliability and rigorous testing. This is a solid choice for a dependable, long-lasting repair. |
| Replacement | Value Option | The "Replacement" brand offers a cost-effective alternative. These parts are designed to be a direct-fit replacement for the original switch and provide a functional solution to get your Navigator back on the road without the high cost of an OEM part. While they may not have the same brand recognition as Standard, they are a viable option for budget-conscious repairs. |
Known Issues, Recalls, and TSBs
Searches for official recalls on the NHTSA website and Technical Service Bulletins (TSBs) for the 1998-2006 Lincoln Navigator's neutral safety switch did not yield any specific, widespread issues for this component. One forum user mentioned a recall for a 1998 model related to the gear position indicator, but this may have been related to shift cable adjustments rather than the switch itself. Always check for proper shift cable and linkage adjustment, as this can sometimes mimic the symptoms of a bad switch.
Common Ordering Mistake
The terms Neutral Safety Switch (NSS) and Transmission Range Sensor (TRS) are used interchangeably for this part. Don't be confused if you see it listed under either name; they refer to the same component on your Navigator.
Frequently Asked Questions
Can I replace the Navigator's neutral safety switch myself?

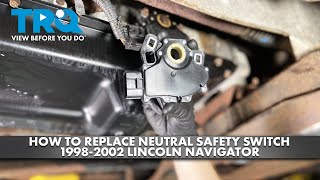

Yes, this is a DIY-feasible job for someone with moderate mechanical skill. The switch is located on the driver's side of the transmission. The process involves safely raising the vehicle, disconnecting the wiring and shift linkage, removing two bolts, and swapping the part. 🎬 Watch: Step-by-step neutral safety switch replacement for your Navigator Proper alignment of the new switch is critical. If you are not comfortable working under your vehicle, it's best to leave this job to a professional.
What does a P0705 code mean on my Lincoln Navigator?
DTC P0705 stands for "Transmission Range Sensor Circuit Malfunction." This means the vehicle's computer is receiving an incorrect or no signal from the neutral safety switch about which gear you have selected. This code is a strong indicator that the switch itself, or its wiring, is faulty.

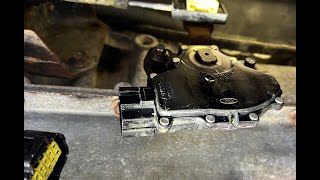

🎬 See how to fix a P0705 code and range sensorCould something else cause a no-start problem?
Yes. While the neutral safety switch is a common cause, a no-start condition can also be due to a dead battery, a bad starter, a faulty alternator, or issues with the ignition system. However, if the vehicle starts in Neutral but not Park, the neutral safety switch is the most likely culprit.
How do I know if the switch needs adjustment or replacement?
Sometimes, if the shifter cable is loose or the switch has shifted slightly, an adjustment can fix the problem. However, if symptoms like starting in any gear, a P0705 code, or a complete no-start in both Park and Neutral occur, the internal components of the switch have likely failed, and it needs to be replaced.

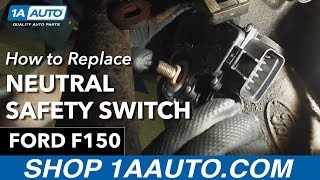

🎬 Watch: How to properly adjust your Ford transmission range sensorHelpful Videos
Technical Specifications
OEM Part Numbers: F7TZ-7A247-AA F7TZ7F293AA 88923339
Located on the exterior driver's side of the 4R100 or 4R70W/4R75W transmission. Secured by two bolts and connects to the manual shift lever.
