Guide to 1998-2007 Dodge Caravan Door Lock Kit Replacement
Experiencing issues with your Caravan's power door locks? This guide explains common failures and how to choose the right replacement parts.
- The most common failure is the door lock actuator, which causes power locks to stop working or make a buzzing noise.
- For 2005 models specifically, unresponsive locks could be a software issue requiring a dealer visit, not a new part.
- Replacing the actuator is a feasible DIY job that requires removing the interior door panel and working in a tight space.
- Ensure you buy the correct part for your specific door (e.g., driver's side sliding door vs. front passenger door) as they are not interchangeable.
Common Failure Symptoms
When a door lock actuator in your Caravan begins to fail, you'll notice some clear signs. Being aware of these symptoms can help you diagnose the problem before you're locked out or unable to secure your vehicle.
Most Common Symptoms:
- Power Locks Don't Work: The most obvious symptom is when one or more doors do not lock or unlock when using the power switch or key fob. You may have to use the key manually.
- Strange Noises: A grinding, buzzing, or clicking sound from inside the door when you operate the locks is a tell-tale sign of a failing actuator motor.
- Erratic Operation: The locks may work sometimes but not others. They might also lock and unlock by themselves, a phenomenon sometimes called "ghost locking." This can be caused by a faulty actuator or sometimes a problem with the driver's door switch or Body Control Module (BCM).
- Locks Repeatedly Cycle: In some cases, the locks will continuously try to lock every 20-40 seconds after the vehicle is parked, which can drain the battery. This can sometimes be traced to a faulty door jamb switch that isn't correctly sensing the door is closed.
Choosing the Right Aftermarket Door Lock Kit
For a vehicle in the 1998-2007 age range, finding original equipment manufacturer (OEM) parts can be difficult and expensive. Aftermarket parts are a practical and affordable solution. The term "Door Lock Kit" can mean different things, so it's important to know what you're buying.
- Door Lock Actuator: This is the most common point of failure. It's the motor that powers the lock. For the Caravan, this is often a small component attached to the main door latch assembly.
- Door Lock Cylinder Kit: This includes the mechanical lock cylinder that your key goes into, along with a new set of keys. You would need this if your key no longer turns in the lock or if the cylinder itself is damaged.
The parts discussed in this guide primarily refer to the door lock actuator, which is the common fix for power lock problems.
Brand Quality: Standard Ignition
Standard Ignition (also known as Standard Motor Products or SMP) is a well-established aftermarket brand. They are known for producing quality electronic components that often meet or exceed original specifications. For a part like a door lock actuator, which involves both small mechanical and electrical parts, choosing a reputable brand like Standard is a good way to avoid premature failure and ensure a proper fit. While some budget brands may be available, they often have higher failure rates, making the extra cost for a quality part worthwhile to avoid doing the job twice.
Known Issues, Recalls, and TSBs
While most major recalls and TSBs for door lock actuators target newer generation Caravans (2008 and later), the underlying issues are often similar. No specific recalls for door lock actuators were found for the 1998-2007 models. However, forums are filled with owner complaints about actuator failures on these vans, indicating it's a common problem.

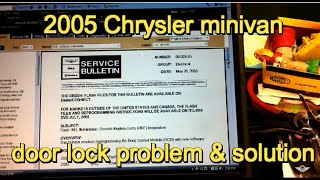

For 2005 Models: A specific Technical Service Bulletin (TSB 08-028-05) was issued for 2005 Caravans where power locks become completely unresponsive. This issue is caused by a software glitch in the Body Control Module (BCM) and requires a software update from a dealership 🎬 Watch this video to see how this TSB affects your locks., not a new actuator.
Cost of Replacing a Door Lock Kit (Actuator)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard Ignition) | $57 - $92 |
| Shop Labor | $120 - $250 |
| Total Estimated Cost (Parts + Labor) | $177 - $342 |
Note: Prices are estimates and can vary based on your location and the specific repair shop. The cost is for a single door lock actuator replacement.
Frequently Asked Questions (FAQ)
Do I need to replace the whole latch or just the actuator?
On the 1998-2007 Caravan, the actuator is often a separate component that bolts onto the main latch assembly. In most cases, you only need to replace the actuator itself, which is more cost-effective. However, some aftermarket kits may bundle the two parts together.
🎬 Follow these detailed instructions for a successful sliding door repair.Is this a different part for the sliding doors vs. the front doors?

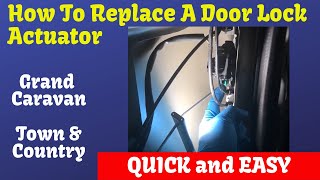

Yes, the actuators for the front doors and the sliding doors are typically different parts with unique part numbers. The replacement process is also different. 🎬 See a step-by-step guide for replacing the sliding door actuator. Make sure you order the correct part for the specific door you are repairing.
My locks are cycling on and off by themselves. Is this the actuator?
It could be, but this symptom can also be caused by a faulty master window/lock switch on the driver's door or a door jamb switch that isn't making proper contact. A common DIY fix is to check if the door jamb switch is fully depressed when the door is closed; sometimes adding a small rubber bumper can solve the problem.
Can I replace just one actuator, or should I do them all?
You only need to replace the actuator that has failed. However, since they are a common failure item, if one has failed due to age, others may not be far behind. It is not necessary to replace them all at once, but be prepared that another may fail in the future.
Helpful Videos
Technical Specifications
OEM Part Numbers: CXLHX981AA CXLHX982AA
The kit typically includes the electronic actuator motor. It connects to the vehicle's wiring harness and the mechanical door latch assembly. The part is specific to door location (e.g., Left Sliding, Right Sliding, Front Left, etc.).
