Ignition Lock Cylinder Guide for 1998-2007 Dodge Caravan
Key won't turn or gets stuck? This guide covers common ignition lock cylinder problems and solutions for your Caravan.
- The most common failure is a worn cylinder that prevents the key from turning.
- If your key is grey, it has an anti-theft chip; you must either re-key the new cylinder or program the new keys.
- Dorman offers popular aftermarket kits that may include a tool to re-key the cylinder yourself.
- Replacement is a simple DIY job if your old key can still turn to the 'ON' position.
- Distinguish between the lock cylinder (mechanical) and the ignition switch (electrical) to diagnose correctly.
Is Your Caravan's Ignition Lock Cylinder Failing?
A failing ignition lock cylinder in a 1998-2007 Dodge Caravan is a common problem that can leave you stranded. Usually, the issue is simple mechanical wear and tear from years of use. The small metal pins (tumblers) inside the cylinder wear down, and they no longer line up correctly with your key. This can make it difficult or impossible to turn the key.
Common Failure Symptoms
- Key Won't Turn: This is the most frequent complaint. The key goes in but you can't turn it to the 'ON' or 'START' position. Wiggling the steering wheel while turning the key sometimes helps, but it's a sign the cylinder is failing.
- Key is Hard to Insert or Remove: You might feel resistance or a gritty sensation when putting the key in or pulling it out. This is caused by worn or misaligned tumblers.
- Engine Doesn't Start: If the lock cylinder is broken, it can't properly engage the ignition switch behind it. You might turn the key and get no response at all—no crank, no start.
- Starts and Stalls: On Caravans with the Sentry Key Immobilizer System (SKIS), a faulty lock cylinder antenna ring can prevent the computer from reading the chip in your key. The engine will start and then shut off after two seconds. A flashing security light on the dash is a key indicator of this problem.
Ignition Lock Cylinder vs. Ignition Switch
It's easy to confuse these two parts. The Ignition Lock Cylinder is the mechanical part your key fits into. The Ignition Switch is the electrical component behind it that the cylinder turns. If your accessories work but the van won't crank, the problem could be the switch, not the cylinder.
Choosing the Right Aftermarket Part
When your original lock cylinder fails, you have several options. While a Mopar part from the dealer is an option, many high-quality aftermarket parts are available that offer good value and reliability.
Brand & Quality Tiers

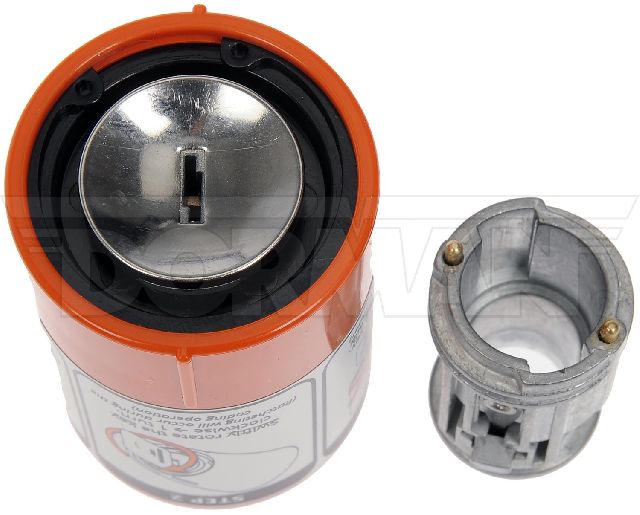

- Premium Aftermarket (e.g., Dorman, Standard Ignition): Brands like Dorman are well-known in the aftermarket and often provide a reliable, cost-effective solution. Some Dorman kits even come with a special tool that lets you re-code the new cylinder to your original key right at home, which saves a trip to a locksmith. Standard Motor Products (SMP) is another trusted brand known for making parts that meet or exceed original specifications.
- OEM (Mopar): This is the original part your van was built with. It guarantees a perfect fit but is usually the most expensive option. If you want the exact original feel and function, Mopar is the way to go.
- Budget-Friendly (e.g., Replacement, Skyward): These brands offer the lowest price point. They can be a good choice if your budget is tight, but quality can sometimes be inconsistent compared to premium brands. They are a functional replacement to get the vehicle running again.
A Note on Keys and Programming
If your Caravan has the grey Sentry Key, it has an anti-theft chip. When you replace the lock cylinder, you have two choices: 1) Have a locksmith re-key the new cylinder to match your old key. 2) Use the new keys that come with the cylinder, but you will need to have them programmed to your van's computer. Some Dorman kits allow you to re-key the cylinder yourself.
Cost to Replace a Dodge Caravan Ignition Lock Cylinder
| Part Type | Estimated Part Cost | Notes |
|---|---|---|
| New Aftermarket | $26 - $140 | Price varies by brand and features (e.g., self-coding kits). |
| New OEM (Mopar) | $160 - $225+ | Highest cost, but guaranteed OEM fit and quality. |
| Shop Labor | $75 - $110 | Typically about an hour of labor. Additional costs may apply for key programming. |
Frequently Asked Questions
Can I replace the ignition lock cylinder myself?
Yes, this is a DIY-friendly job for many people. The process involves removing the plastic covers around the steering column, turning the key to the 'ON' position, pressing a release pin, and pulling the cylinder out. The main challenge is if the key is stuck and won't turn; in that case, the release pin cannot be depressed, and you may need to drill out the old cylinder.
Do I need to program my new key?
If your Caravan uses a grey Sentry Key (with a chip), then yes. If you use the new keys that come with your aftermarket cylinder, they must be programmed to the vehicle's immobilizer system. If you have the new cylinder re-keyed to match your original key, no programming is needed. If you have two working original keys, you may be able to program a third key yourself.
Was there a recall for the ignition system on these vans?
Yes, but it was for the ignition switch on 2008-2010 models, which are newer than this generation. There was also a TSB for intermittent door lock cycling related to door lock cylinders, but not the ignition lock cylinder for the 1998-2007 models. There are no major recalls specifically for the ignition lock cylinder on the 1998-2007 Dodge Caravan.
What's the difference between the black key and the grey key?
For these Dodge Caravans, a plain black key is just a mechanical key. A grey-headed key is a Sentry Key, which contains a transponder chip for the vehicle's immobilizer system. If your van came with a grey key, you must use a chipped key for the engine to continue running. Using a non-chipped key will cause the engine to start and then stall after two seconds.
Technical Specifications
OEM Part Numbers: 4685719AI
Mechanical key-operated lock cylinder. May include an integrated antenna for the Sentry Key Immobilizer System (SKIS) on equipped models. Typically requires key to be in 'ON' position to depress a release tab for removal from the steering column.
