Subaru Forester 1998-2007: Choosing Your Automatic Transmission Filter
Keep your Forester's 4-speed automatic transmission healthy with the right parts and knowledge.
- Your Forester has an easy-to-change external spin-on filter; the internal filter does not need regular service.
- The OEM Subaru filter has a specific internal design; use OEM or a high-quality aftermarket equivalent like Wix for best results.
- Avoid buying large 'kits' with pan gaskets, as you only need the single spin-on filter for this job.
- Always replace this filter when you perform a transmission fluid drain and fill service.
Understanding Your Forester's Transmission Filters
If you own a 1998-2007 Subaru Forester with an automatic transmission, you have two transmission filters. However, only one is meant for regular replacement.
- External Spin-on Filter: This is the main filter you will be replacing. It looks like a small black or blue engine oil filter and is located on the driver's side of the transmission case. It is designed to be changed during regular fluid services.
- Internal Pan Filter: Inside the transmission oil pan, there is a flat screen or filter. This part is generally only serviced or replaced when the entire transmission is being rebuilt. You do not need to change this during a normal fluid service.
This guide focuses on the external, spin-on filter, which is the part you'll be shopping for.
OEM vs. Aftermarket: A Forester-Specific Issue
Normally, the difference between an OEM (Original Equipment Manufacturer) and aftermarket filter is small. For this specific Subaru transmission, the difference is important.
The original Subaru filter is designed differently inside. Instead of a typical spring-loaded bypass valve found in most oil filters, it uses a screen system. This is a safety feature to make sure the transmission cooler always gets fluid, even if the filter paper gets clogged with debris. Using a standard engine oil filter, or a cheap aftermarket filter that doesn't copy this design, could risk starving the transmission of fluid. For this reason, many Subaru specialists recommend using either the genuine Subaru filter or a high-quality aftermarket brand known to build to the correct specification.
Pro Tip: When changing your external filter, always do a transmission "drain and fill" at the same time. This removes about 4-5 quarts of old fluid. It's a simple service that makes a big difference in your transmission's health.

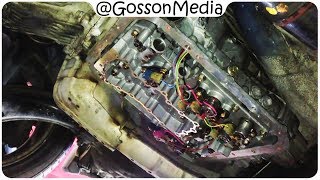

🎬 See a professional mechanic service the 4EAT transmission and filter.Choosing the Right Aftermarket Brand
When you can't get an OEM filter, some aftermarket brands are better than others. They can be grouped into tiers based on quality and design.
Tier 1: OEM-Equivalent Quality
- Wix: Wix is a well-respected filter manufacturer. Their filters are known for quality construction and are often considered a top-tier aftermarket choice. Forum users report that some Wix-made filters (including some NAPA-branded ones) are built to the correct Subaru OEM design.
Tier 2: Reputable Aftermarket Brands
- Premium Guard: Often seen as a good "value" brand, Premium Guard filters are generally well-built for the price. While maybe not an exact copy of the OEM internal design, they are a reliable choice for regular maintenance.

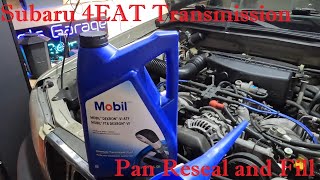

- ATP: ATP is a common brand for transmission components. Their kits often include pan gaskets for the *internal* filter, which you won't need for this job, 🎬 Watch a full transmission pan reseal and fluid flush walkthrough. so be sure you are just buying the spin-on filter.
- Vaico: Vaico is another available aftermarket option that meets standard manufacturing requirements.

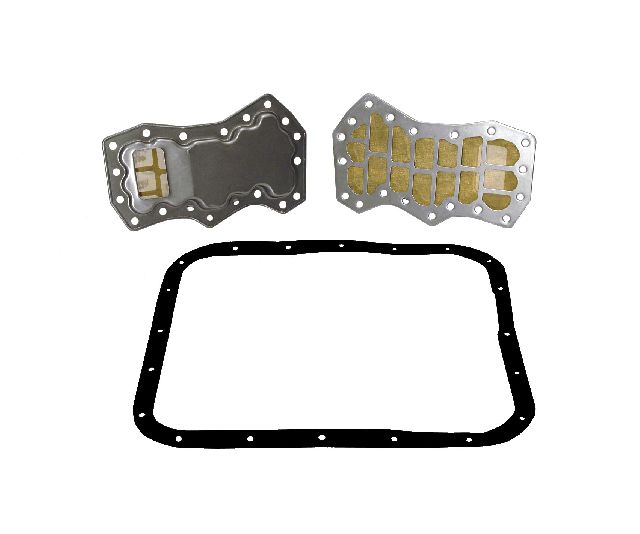

Common Ordering Mistake: Many aftermarket "Transmission Filter Kits" include a large pan gasket and an internal filter. You do not need this for a standard service on your 1998-2007 Forester. You only need the external spin-on filter, which is sold as a single part.
Known Issues, Recalls, and Bulletins
There are no major recalls or Technical Service Bulletins (TSBs) from Subaru or the NHTSA specifically for the transmission filter on the 1998-2007 Forester. A recall for this era (NHTSA ID 02V282) concerned an internal parking rod and was not related to the filter or fluid. Any other transmission recalls you may see are for much newer Subaru models with different (CVT) transmissions.
Frequently Asked Questions (FAQ)
How often should I change my transmission filter?
A good rule of thumb is to replace the external spin-on filter every time you perform a transmission fluid drain and fill. For the 4EAT transmission, this is often recommended every 30,000 to 60,000 miles, depending on your driving habits.
Can I use an engine oil filter instead of a transmission filter?
No. Even if the threads match, you should not use an engine oil filter. The internal construction and bypass valve settings are different and not designed for a transmission. Using the wrong filter can cause serious transmission damage.
What kind of fluid should I use?
Always check your owner's manual. Most Foresters from this era require a Dexron III (DEX/MERC) compatible Automatic Transmission Fluid (ATF). Using the correct fluid is just as important as using the correct filter.
Is replacing the filter a DIY job?

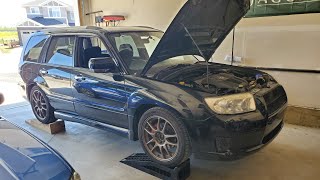

Yes, for most home mechanics. Replacing the external spin-on filter is very easy. It is located on the outside of the transmission and unscrews just like an oil filter. 🎬 Watch this step-by-step guide to changing your fluid and filter. You will need a filter wrench, a drain pan, and fresh fluid to top it off.
Helpful Videos
Technical Specifications
OEM Part Numbers: 38325AA032
External Spin-On Filter for 4EAT Automatic Transmission
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
