Chevrolet Corvette C5 & C6 Disc Brake Hardware Kit Replacement Guide (1998-2008)
Eliminate brake noise and restore proper caliper function on your 1998-2008 Corvette.
- Always replace the disc brake hardware kit when changing brake pads to prevent noise and ensure even wear.
- For street use, quality aftermarket brands like Carlson or Dynamic Friction offer the best value.
- Use high-temperature brake grease on all slide pins and pad contact points to ensure smooth operation.
- Brake noise on a C5/C6 is very often caused by old or missing hardware, especially the pad retaining clips.
Symptoms of Failing Brake Hardware on a C5 or C6 Corvette
Worn or missing brake hardware often gets overlooked during a brake job, but it can cause noticeable problems. On the 1998-2008 Corvette, these issues are common when hardware is old, corroded, or was not re-installed correctly, especially after caliper painting.
- Brake Noise: This is the most common symptom. You might hear squealing, high-pitched squeaking, or a persistent clicking or rattling sound, especially at low speeds. Forum members often trace rattling pads back to missing center spring clips.
- Uneven Brake Pad Wear: If a caliper guide pin is seized or not lubricated, the caliper can't slide properly. This causes the brake pads on one side of the rotor to wear down faster than the other.
- Vibration or Pulsation: While often blamed on warped rotors, a sticking caliper caused by bad hardware can lead to uneven pad material transfer on the rotor, creating a pulsating feeling in the brake pedal.
- Dragging Brakes: In severe cases, a seized caliper pin can cause the brake pad to remain in contact with the rotor, creating constant friction. This can lead to a burning smell and damage the rotor.
Choosing the Right Aftermarket Hardware Kit
For a street-driven C5 or C6 Corvette, you don't necessarily need to pay a premium for OEM hardware. Quality aftermarket kits from brands like Carlson and Dynamic Friction offer excellent performance and value. The key differences between budget and premium aftermarket kits are often material quality and completeness.
- Good (Economy): Basic kits will get the job done. They may use plated steel that can corrode over time. They might not include every single clip or boot, so compare the contents to what you're replacing.
- Better (Standard Aftermarket): Brands like Carlson and Dynamic Friction fall into this category. They typically use better materials, like stainless steel for anti-rattle clips, which resist corrosion much better than plain steel. These kits are usually complete, including all necessary pins, clips, and boots for a full replacement. For the vast majority of Corvette owners, this tier provides the best balance of cost and quality.
- Best (OEM): ACDelco is the GM original parts brand. They offer different lines, with "GM Original Equipment" being the same part that came on your car. While the quality is guaranteed, the cost is often significantly higher than aftermarket, and for simple mechanical parts like hardware, the performance benefit for daily driving is minimal.
Pro Tip: Always Replace, Never Reuse
Brake hardware is exposed to extreme heat cycles and road grime. The metal clips lose their spring tension over time, and rubber boots crack. Reusing old hardware is a common cause of brake noise and premature pad wear after a brake job. Given the low cost of a new kit, it should be considered a mandatory replacement item with every brake pad change.
Cost for a 1998-2008 Corvette Disc Brake Hardware Kit
| Part Type | Estimated Cost (Per Axle) |
|---|---|
| New Aftermarket (Carlson, Dynamic Friction, etc.) | $6.69 - $24.07 |
| New OEM (ACDelco) | $30 - $60 |
| Shop Labor (Hardware only) | $100 - $150 |
Note: Labor for hardware replacement is often included if you are already paying for a brake pad and rotor replacement. The labor cost shown is an estimate if the job is performed separately.
Frequently Asked Questions (FAQ)
Do I really need to replace the hardware with my brake pads?
Yes. The anti-rattle clips are heat-cycled thousands of times and lose their tension, leading to noisy brakes. The caliper guide pin boots can crack, allowing moisture and dirt to seize the pins. For a quiet and effective brake job that lasts, a new hardware kit is essential and inexpensive insurance.
Is the hardware different for Z51, Z06, or base models?
Yes, brake components can differ between the base model Corvette and the higher-performance Z51, Z06, or Grand Sport packages. The calipers and pads are often different, which means the hardware kit will be too. Always verify the exact fitment for your specific model year and sub-model before ordering.
My "ABS" and "Traction Control" lights are on. Is this related to the hardware?
No, this is not related to the mechanical brake hardware. This is a very common and well-documented issue on 1997-2004 (C5) Corvettes caused by a failure of the Electronic Brake Control Module (EBCM). This module controls the ABS and traction control systems. Unfortunately, new replacement parts from GM are often unavailable, and repair or finding a used unit is typically the only solution.
What kind of grease should I use on the hardware?
Use a high-temperature synthetic brake grease. Apply a thin layer to the caliper guide pins and to the contact points where the brake pads slide on the anti-rattle clips. Do not use standard anti-seize, as it is not designed for the high temperatures and movement of brake components. Some TSBs also mention applying copper paste to the back of the pad plates to reduce noise.
Technical Specifications

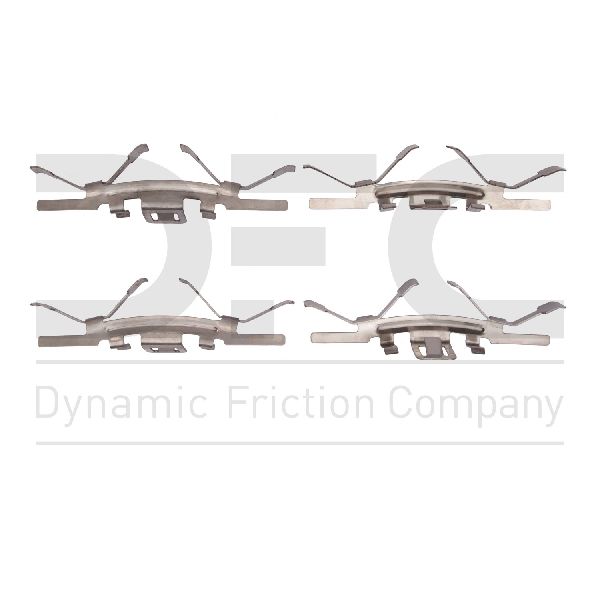

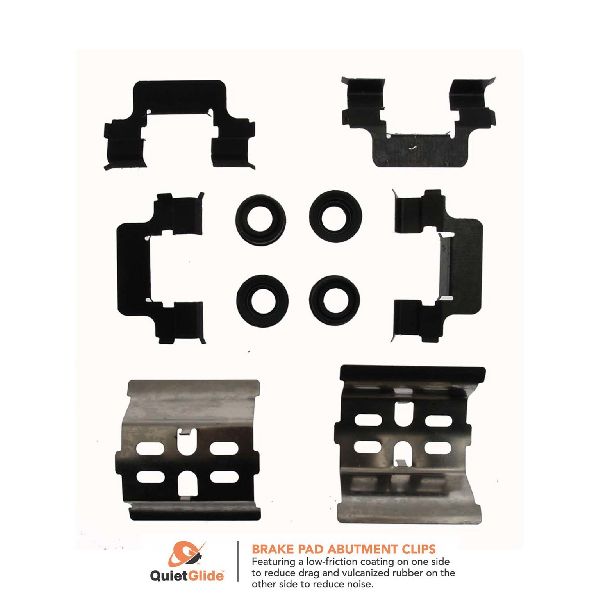

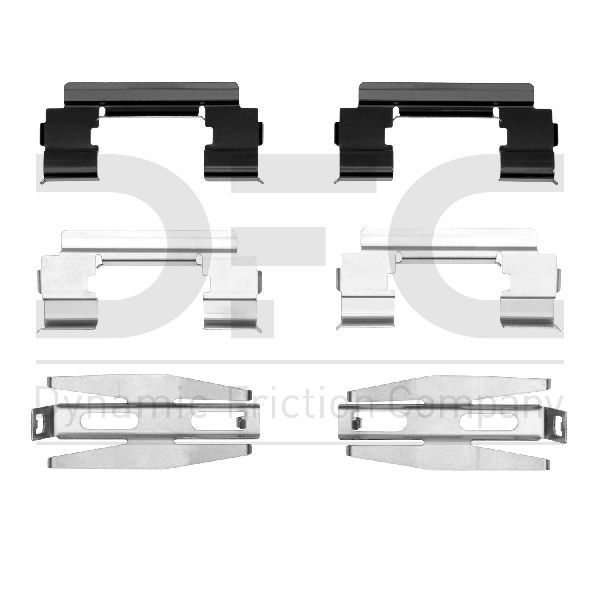

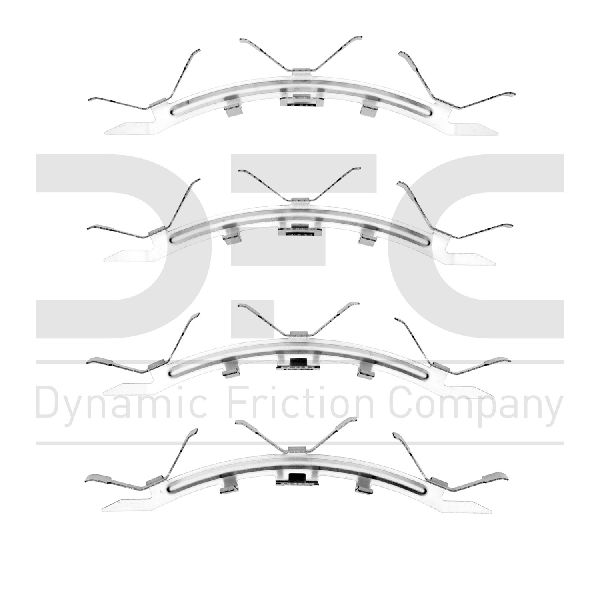

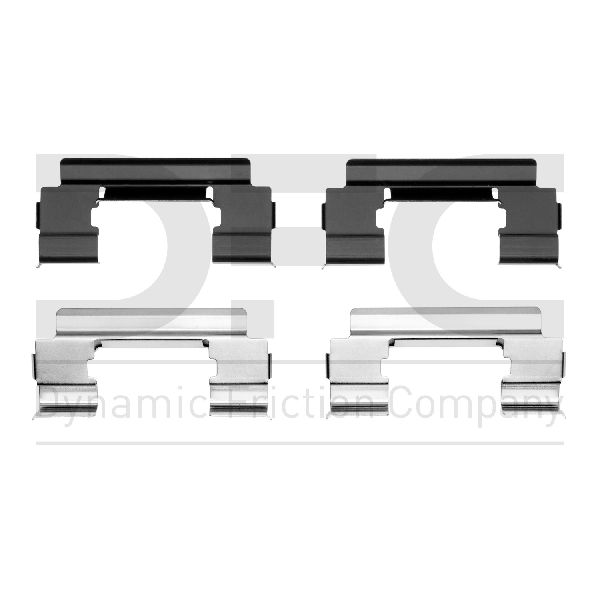

Kit typically includes anti-rattle clips, caliper guide pins, and guide pin boots. Materials may vary from plated steel to stainless steel.
