Ford Ranger (1998-2009) Rear Brake Drum: A Complete Guide
If your Ranger's rear brakes feel weak or are making noise, your brake drums could be the culprit.
- Always replace brake drums, shoes, and hardware in pairs to ensure safe, balanced braking.
- You must verify if your Ranger has 9-inch or 10-inch rear drums before ordering parts.
- When replacing drums, inspect for leaks from the axle seals or wheel cylinders, a common Ranger issue.
- Quality aftermarket brands like Raybestos, Centric, and Bendix are reliable and cost-effective for this truck.
Symptoms of a Worn Ford Ranger Brake Drum
When your brake drums wear out, they'll give you a few warning signs. Ignoring them is a bad idea, as your rear brakes account for a significant portion of your truck's stopping power, especially when hauling a load. Pay attention if you notice any of these issues.
- Scraping or Grinding Noises: This is a classic sign of worn-out brakes. If the brake shoes have worn down completely, you'll hear a metal-on-metal grinding sound as the shoe's metal backing plate scrapes against the inside of the drum.
- Pulsating Brake Pedal: If you feel a pulsing or vibrating in the brake pedal when you brake, your drums may be "out-of-round" or warped from heat. This means the surface is no longer perfectly circular, causing the brake shoes to make uneven contact.
- Weak or Spongy Brakes: Worn drums can increase the distance your brake shoes have to travel, leading to a brake pedal that feels soft, spongy, or travels further to the floor before engaging.
- Parking Brake Issues: The parking brake on your Ranger uses the rear drum brakes. If the parking brake doesn't hold the truck securely, or the handle pulls up much further than it used to, it could be a sign of worn or out-of-adjustment drums.
- One Wheel is Hotter Than the Other: After a drive, if you notice one rear wheel is significantly hotter than the other, it could indicate a problem with a dragging brake on that side. This could be caused by a misadjusted or failing component inside the drum.
Check for Leaks When You're In There
A common issue on Ford Rangers is for the rear axle seals or the brake wheel cylinders to leak. If gear oil from the axle or brake fluid from the cylinder gets on your brake shoes and drums, it will ruin them and severely reduce stopping power. When you replace your drums, always inspect the inside of the backing plate for any signs of wetness or fluid contamination. If you see any, you must replace the leaking seal or cylinder before installing 🎬 Watch this walkthrough on replacing a leaking rear axle seal. your new brake parts.
Choosing the Right Aftermarket Brake Drum
For a 1998-2009 Ford Ranger, you don't need to pay dealer prices for a quality brake drum. The aftermarket offers excellent options that meet or exceed OEM specifications for a fraction of the cost. Most drums are made of cast iron and are designed for durability. Here’s a breakdown of common brands.
- Good, Better, Best: Brands like Raybestos, Centric, and Bendix have a long-standing reputation for quality and are a solid choice for daily driving and light hauling. They offer a great balance of performance and value. Many professional mechanics trust and use these brands.
- Performance Options: Brands like Powerstop and Dynamic Friction often offer kits that might include upgraded shoes or coated drums for better corrosion resistance. While some users find Powerstop to be decent, the general consensus is that for rear drums on a Ranger, standard quality replacements are more than enough.
- Budget-Friendly: Brands like Pronto offer a lower-cost alternative. While any new drum is better than a dangerously worn one, be aware that some budget or "economy" lines may not have the same level of quality control or longevity as the more established brands.
9-inch vs. 10-inch Drums: A Critical Detail
Ford Rangers in this generation came with two different sizes of rear brake drums: 9-inch and 10-inch. Ordering the wrong size is a common and frustrating mistake. Before you order, you must confirm which size your truck has. You may need to measure your old drum or consult a VIN-specific parts catalog to be certain.
Ford Ranger Brake Drum Replacement Cost
Replacing brake drums is a common repair. The cost depends on whether you do it yourself or have a shop do the work. Always replace brake drums and shoes in pairs to ensure even braking.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Brake Drums (Pair) | $120 - $215 |
| Shop Labor | $150 - $250 |
| Total Professional Replacement (Drums Only) | $270 - $465 |
| Additional Parts (Shoes, Hardware, Wheel Cylinders) | $50 - $150 |
Note: Costs are estimates and can vary by location and the specific parts chosen. Total cost can increase if brake shoes, hardware springs, or wheel cylinders also need replacement.
Frequently Asked Questions
Are there any recalls on 1998-2009 Ranger brake drums?
No, there are no specific recalls or technical service bulletins (TSBs) from Ford for the brake drums on this generation of Ranger. There was a major recall (09S09) for a faulty speed control deactivation switch that could leak brake fluid, but this was not a defect of the drums themselves.
Should I replace my brake shoes and hardware with the drums?
Yes, it is highly recommended. It is considered best practice to replace the brake shoes, hardware springs, and self-adjusters whenever you install new drums. This ensures all components are fresh and work together correctly, providing the best performance and preventing premature wear on your new drums. The hardware is inexpensive and ensures the shoes move properly.
🎬 See how to properly install new brake shoes and hardware.Can I just resurface my old drums instead of replacing them?
Sometimes. A brake drum can be resurfaced (machined) if it is only slightly out-of-round and has enough material left. However, every drum has a maximum allowable diameter stamped on it; machining past this point is unsafe. Often, the cost of resurfacing is close to the cost of a new aftermarket drum, making replacement the better and safer option.
Do I have to replace both rear drums at the same time?
Yes, absolutely. Brakes should always be replaced in pairs on the same axle. Replacing only one drum will cause uneven braking, pulling to one side, and unpredictable stopping. This is a critical safety rule for any brake work.
Helpful Videos
Technical Specifications

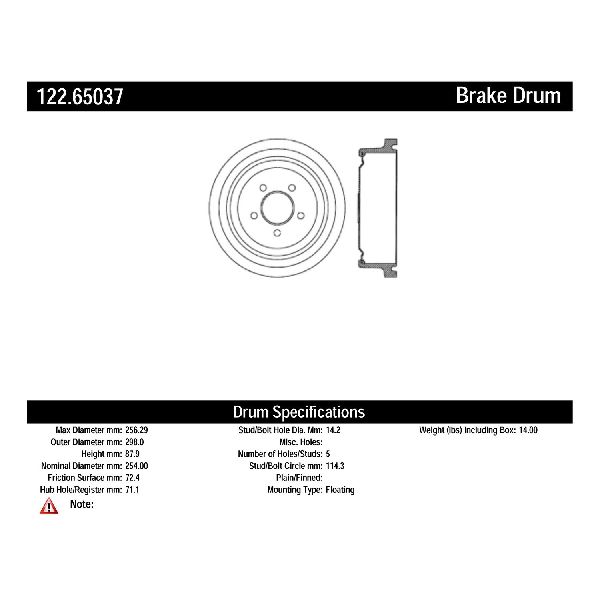

Brake drums for the 1998-2009 Ford Ranger are available in two primary sizes: 9-inch and 10-inch internal diameter. It is crucial to verify the correct size for your specific vehicle configuration before purchasing, as they are not interchangeable. Due to the wide range of years and configurations, checking with a VIN decoder or measuring the existing drum is the most reliable method.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
