Dodge Durango Engine Oil Pressure Switch Guide (1998-2010)
Is your oil light flickering or is the gauge acting strange? This guide is for you.
- A flickering oil light at idle is the most common symptom of a bad sensor on a Durango.
- Always verify actual oil pressure with a mechanical gauge before assuming the sensor is the only problem.
- The sensor is usually located near the oil filter on 4.7L/5.7L engines, making it a feasible DIY replacement with a special socket.
- Aftermarket brands like Standard Ignition and Walker Products offer a reliable alternative to the more expensive Mopar part.
Understanding Engine Oil Pressure Switch Failures in the Durango
The oil pressure switch on 1998-2010 Dodge Durangos is a common failure point. Symptoms often appear as a flickering oil light, especially at idle when the engine is warm. You might also see the gauge on your dashboard drop to zero or behave erratically. While these signs can be alarming, they often point to a faulty sensor rather than a true loss of oil pressure. 🎬 Watch this video to see how a flashing oil light is diagnosed. However, because the risk of engine damage is high if the problem *is* low oil pressure, you should never ignore these warnings.
Warning: Don't Ignore the Light
A flickering or illuminated oil pressure light could mean a cheap sensor has failed, or it could mean your engine is moments away from catastrophic failure due to lack of oil. Always verify the engine's oil level immediately. It is highly recommended to have the actual oil pressure checked with a mechanical gauge to rule out a serious engine problem before assuming the sensor is the only issue.
Known Issues, Recalls, and TSBs
While no specific recalls were found for the oil pressure switch on 1998-2010 Durangos during a search of the NHTSA database, Chrysler has issued Technical Service Bulletins (TSBs) for similar issues on other models and years. For example, TSB 18-034-14 was released for the P0520 code on 2013-2014 Durangos, recommending a sensor replacement. This indicates that sensor issues are a known problem for the manufacturer. Forum discussions among owners frequently mention the oil light flickering at idle and the gauge dropping to zero as common complaints that are often resolved by replacing the sensor.
Choosing the Right Aftermarket Oil Pressure Switch
When it comes to a critical sensor like this, quality matters. While Mopar is the original equipment manufacturer, several aftermarket brands offer a good balance of quality and value.
- Premium Aftermarket (Good): Brands like Standard Ignition (SMP) and Walker Products are well-regarded in the aftermarket. They engineer their parts to meet or exceed OEM specifications and perform extensive testing. These are a solid choice for reliability without the higher cost of a Mopar part.
- Standard/Value Aftermarket (Acceptable): Brands like Crown Automotive, Holstein, and Global Parts offer a more budget-friendly option. They can be a good choice for an older vehicle, but be aware that with lower-cost sensors, there is sometimes a higher risk of premature failure or inaccurate readings.
Pro Tip: A common failure is oil leaking *through* the sensor's electrical connector, not just from the threads. When you remove your old sensor, check the connector for oil residue. If it's oily, clean the harness connector thoroughly before plugging it into the new sensor.
Cost of Replacing a Dodge Durango Oil Pressure Switch
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Mopar) Part | $60 - $95 |
| New Aftermarket Part | $12 - $90 |
| Shop Labor | $80 - $150 |
| Total Professional Replacement | $100 - $245 |
Frequently Asked Questions (FAQ)
Where is the oil pressure switch on a 1998-2010 Durango?
The location varies slightly by engine. For the second-generation (2004-2009) 4.7L and 5.7L Hemi engines, the sensor is located on the bottom of the engine, just above the oil filter. For the first-generation (1998-2003) 5.9L engine, it is typically found near the distributor. 🎬 See this walkthrough for replacing the switch on a 1999 model. Always confirm the location for your specific year and engine.
Can I replace the Durango's oil pressure switch myself?

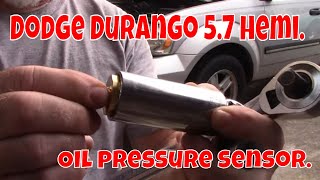

Yes, this is a DIY-friendly job for most people with basic tools. The key is having the correct special socket, which is a deep socket designed to fit over the sensor's body. For most models, you'll access it from underneath the vehicle. 🎬 Watch a step-by-step replacement guide for 2004-2009 Durango models. Be prepared for a small amount of oil to drip out when you remove the old sensor.
Is an oil pressure switch the same as an oil pressure sensor?
Yes, the terms are used interchangeably. Some older systems used a simple "switch" that only turned the light on or off at a set pressure. Newer systems use a "sensor" (or sending unit) that provides a variable reading to an electronic gauge. For the 1998-2010 Durango, the part functions as a sensor for the gauge and a switch for the light.
Why is my oil light still on after replacing the sensor?
If a new, quality sensor doesn't fix the problem, you may have a more serious issue. This could include problems with the wiring harness, a failing oil pump, sludge blocking oil passages, or worn engine bearings causing a true low-pressure condition. It is critical to have a mechanic perform a manual pressure test to diagnose the root cause.
Helpful Videos
Technical Specifications

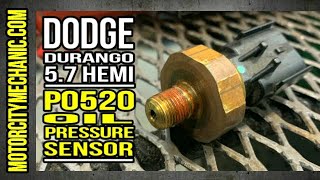

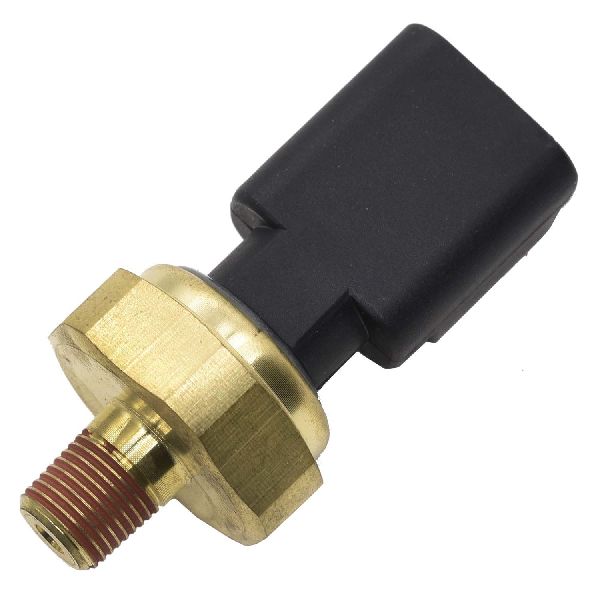

OEM Part Numbers: 5149062AB 56044777AA 56028807AA 05149062AA
The part is a single-pin or multi-pin threaded sensor. A special deep socket (often 27mm or 1-1/16 inch) is required for removal and installation.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
