Volvo V70 Windshield Washer Pump: A Replacement Guide for 1998-2010 Models
Don't let a dead washer pump compromise your visibility; here's what you need to know to fix it right.
- Verify your V70's generation (P80, P2, or P3) to understand the replacement procedure; later models often require bumper removal.
- Most V70s use a single dual-outlet pump for front and rear, but always confirm before buying.
- Always replace the rubber grommet when replacing the pump to prevent future leaks.
- Quality aftermarket brands like Trico or Vemo are a cost-effective and reliable alternative to expensive OEM parts.
Is Your V70 Washer Pump Failing?
A failing windshield washer pump rarely quits without warning. Recognizing the signs can help you diagnose the problem quickly. The most common failure is simple age and wear, but clogs and electrical issues are also frequent culprits.
- Silent Operation: You pull the washer stalk and hear nothing but the wipers dragging across a dry windshield. This usually points to a dead pump motor or an electrical problem like a blown fuse or bad connection.
- Humming, No-Flow: You can hear the pump motor whirring, but no fluid sprays out. This often means the pump is working, but there's a blockage. The cause could be an empty reservoir, a clogged pump inlet filter, or gunk in the lines or nozzles.
- Weak Spray: If the fluid just dribbles out, the pump motor might be getting weak. It could also be caused by partially clogged nozzles or a small leak in the system.
- Leaks: Finding a puddle of blue washer fluid under the front passenger side of your car is a tell-tale sign. This is often caused by a dried-out and cracked rubber grommet that seals the pump to the reservoir tank.
Check for Clogs First
Before ordering a new pump, check for simple fixes. Ensure the reservoir is full. Use a small pin to gently clear the washer nozzles on the hood. If you've used plain water, algae can grow and clog the system; flushing the tank is a good idea during replacement.
Choosing the Right Aftermarket Pump
For a part like this, you don't need to pay high dealer prices for an OEM part. Aftermarket pumps offer excellent value and are a reliable choice for most V70 owners. However, quality can vary between brands.
Brand Quality Tiers
- Good - Trico & Vemo: Trico is a well-established brand in the wiper and washer industry, known for easy-to-install and reliable products. Vemo is another quality aftermarket brand often mentioned by European car owners as a dependable choice. These brands are a safe bet for a balance of quality and price.
- Budget - Professional Parts Sweden (PPS): While the name sounds specific, owner feedback on forums suggests caution. Some users have reported poor quality and premature failure with other PPS parts. This brand may be the cheapest option, but it could be a gamble on longevity.
Pro Tip: Always Replace the Grommet
The small rubber grommet that seals the pump to the reservoir is a common failure point. It gets brittle with age and can cause leaks. Most quality aftermarket pumps include a new one, but if not, buy one separately. It's a cheap part that prevents future headaches.
Cost of Replacing Your V70 Washer Pump
Replacing the washer pump is an affordable repair, especially if you do it yourself. The main cost variable is labor, as accessing the pump can be time-consuming on certain V70 models.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Pump | $110 - $140 |
| New Aftermarket Pump | $18 - $45 |
| Shop Labor | $100 - $250 |
Common V70 Washer Pump Mistakes
The 1998-2010 V70 covers three different vehicle platforms (P80, P2, and P3), which can cause confusion.
- P80 (1998-2000): On these earlier models, you may be able to access the pump by removing the passenger side front wheel and fender liner. Some very early models may even have two separate pumps for front and rear.
- P2 (2001-2007) & P3 (2008-2010): On these later, more rounded models, accessing the pump often requires removing the entire front bumper cover. While it sounds intimidating, it's a straightforward process for a patient DIYer.
Always confirm your vehicle's specific needs before ordering. If you have headlight washers, you likely have a second, separate pump for that system.
Frequently Asked Questions
Can I replace the washer pump myself?
Yes, this is a DIY-friendly job for someone with basic tools. The main challenge is accessing the pump. On P2 and P3 models, be prepared to remove the front bumper. Watch a few online videos for your specific model year to see what's involved.
Do I need to remove the front bumper?
For 2001-2010 (P2 and P3) models, removing the front bumper is the most common method and makes the job much easier. For 1998-2000 (P80) models, you might get away with only removing the wheel and fender liner.
My V70 has headlight washers. Is it a different pump?
Yes. The headlight washer system uses a separate, high-pressure pump. The pump for the windshield and rear window is a different part.
Why isn't my new pump working?
First, check the fuse. If the fuse is good, check the electrical connector at the pump. Sometimes the contacts get corroded and need cleaning. Also, ensure the pump is fully seated in the new grommet and that the hoses are securely attached to the correct outlets.
Technical Specifications
OEM Part Numbers: 30699952 30699391 30663139

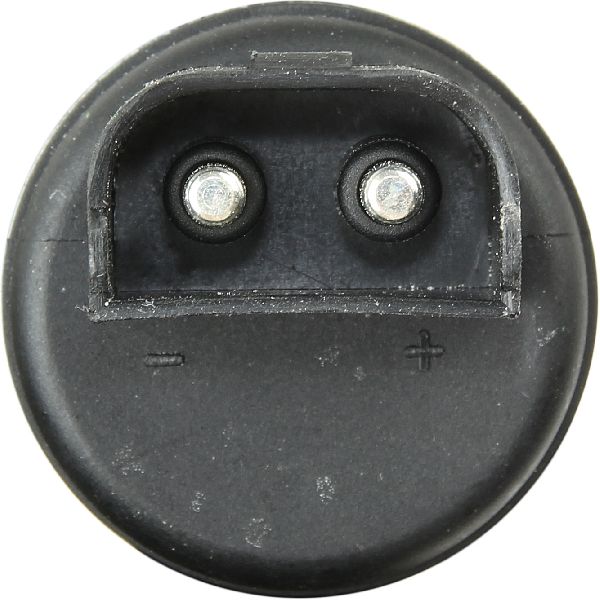

Typically a 12V, dual-outlet, reversing polarity motor pump. Push-fit installation into the washer reservoir.
