Lincoln Town Car Windshield Washer Pump Guide (1998-2011)
A complete guide to diagnosing and replacing the windshield washer pump on your 1998-2011 Lincoln Town Car.
- Replacement is a very easy DIY job that takes under 30 minutes with basic tools.
- The pump is located on the passenger side of the engine bay, pushed into the bottom of the washer fluid tank.
- Always check the fuse first if the pump makes no noise. If it hums but doesn't spray, check for clogs.
- Using proper washer fluid prevents freezing and algae growth that can damage the pump and tank.
Is Your Windshield Washer Pump Failing?
A non-working washer system on a Town Car is usually a simple fix. Before you assume the pump is bad, check the fuse first. If the fuse is good, listen for the pump when you activate the washers. If you hear a humming sound but no fluid sprays, the pump's inlet may be clogged. If you hear nothing at all, the pump motor has likely failed.
Common Symptoms of a Bad Washer Pump
- No Sound: You activate the washers and hear nothing from the pump motor.
- Pump Hums, No Spray: The pump makes noise, but little or no fluid reaches the windshield. This can be caused by a clogged inlet screen on the pump itself or blocked lines/nozzles.
- Weak Spray: The fluid barely reaches the windshield, indicating a weak pump motor or a partial clog.
- Leaks: You notice a puddle of blue or green washer fluid under the front passenger side of the car. The leak could be from the pump's seal (grommet) or a crack in the pump housing.
Pro Tip: The washer pump is located in the engine bay on the passenger side, pushed into the bottom of the fluid reservoir. It's held in by a single bolt, making it one of the easiest parts to access and replace on this vehicle.
🎬 Watch: Step-by-step guide to replacing your Town Car washer pump.Choosing the Right Aftermarket Pump
For a 1998-2011 Lincoln Town Car, the original Motorcraft washer pump is a quality part, but a new aftermarket pump offers excellent value and reliability for this simple component. Brands like Trico specialize in wiper and washer systems and are designed to match the original's fit and function without the high cost. Given the age of the vehicle and the straightforward nature of the part, a reputable aftermarket pump is a smart, cost-effective choice that will restore your washer system's function perfectly.
Warning: Never use plain tap water in your washer reservoir. It can grow algae-like substances that clog the pump's filter screen. In winter, water can freeze and crack both the reservoir and the pump. Always use a proper windshield washer fluid rated for freezing temperatures.
Replacement Cost
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Pump | $24.64 - $28.99 |
| New OEM (Motorcraft) Pump | $30 - $38 |
| Shop Labor | $82 - $120 |
| Total Professional Replacement | $116 - $158 |
Frequently Asked Questions (FAQ)
How difficult is it to replace the Town Car's washer pump?
It is very easy. The job requires basic hand tools and takes less than 30 minutes. The washer reservoir is held by one bolt and is easily accessible in the engine bay, making this a perfect DIY task.
Do I need to drain the washer fluid first?
It's highly recommended. If you don't, the fluid will spill out when you pull the old pump from the reservoir. 🎬 See how to safely remove the pump from the fluid bottle. You can either run the pump until the tank is empty (if it works) or use a small siphon. If the tank is not very full, you can quickly swap the pumps and only lose a small amount of fluid.
I replaced the pump and it still doesn't spray well. What's wrong?
If you can hear the new pump running, the problem is likely a clog downstream. Disconnect the hose from the pump and see if it sprays. If it does, the clog is in the hoses or the spray nozzles on the hood. You can often clear these with compressed air or a small pin.
🎬 Watch: 5 proven methods to unclog your windshield washer nozzles.Are there any recalls for the 1998-2011 Town Car washer pump?
No. There are no specific recalls or technical service bulletins (TSBs) from Lincoln for washer pump failure on the 1998-2011 Town Car. A recall for the wiper *motor* was issued for the 2000 model year, but this does not involve the washer pump.
Helpful Videos

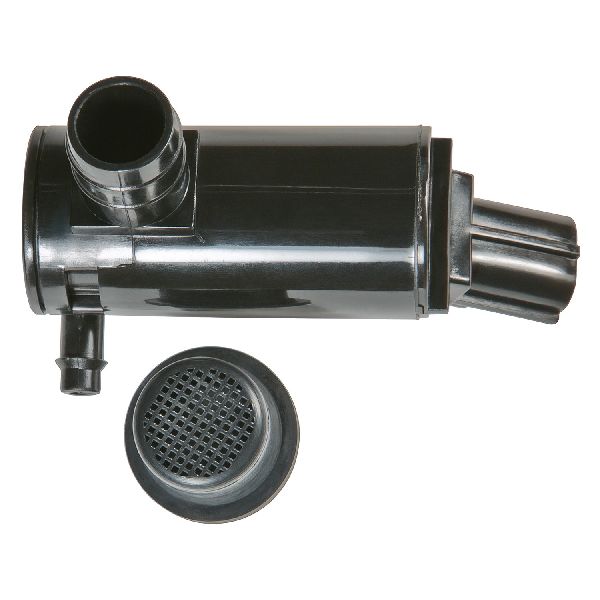

Technical Specifications
OEM Part Numbers: 6F9Z-17664-A 7R3Z-17664-A
This is a single pump assembly that services the front windshield. It installs directly into the bottom of the washer fluid reservoir via a rubber grommet.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
