Volkswagen Beetle Crankshaft Position Sensor Replacement Guide (1998-2011)
Solve stalling, no-start, and rough running issues in your Beetle by understanding and choosing the right crankshaft sensor.
- For maximum reliability, choose an OEM-quality brand like Bosch, Hella, or Bremi; VW engines are sensitive to sensor quality.
- The most classic symptom is the engine stalling when hot and refusing to restart until it cools down.
- The diagnostic trouble code P0322 almost always points to a failed crankshaft position sensor or its wiring.
- Replacement is a feasible DIY job for those comfortable working in tight spaces underneath the car.
Understanding the Crankshaft Position Sensor in Your Beetle
If your 1998-2011 Volkswagen Beetle has started stalling, running rough, or refusing to start, a failing crankshaft position sensor is a very common cause. This small sensor plays a huge role in how your engine runs. It tells the engine's computer how fast the crankshaft is spinning and its exact position. This allows the computer to manage fuel injection and ignition timing perfectly. When the sensor starts to fail, the computer gets bad information, and the engine's performance suffers dramatically.
Critical Part Warning
A complete failure of the crankshaft position sensor will prevent the engine from starting or cause it to stall while driving, which can be dangerous. It is not recommended to drive with known symptoms of a bad sensor.
Common Symptoms of a Failing Crankshaft Sensor
A bad crankshaft sensor on a VW Beetle usually gives clear warning signs. The most common symptom is the engine stalling after it has warmed up, followed by a period where it will crank but not restart until it cools down.
- Engine Stalls Unexpectedly: The car may shut off while idling or driving, often when the engine is hot.
- Engine Cranks but Won't Start: You'll hear the starter trying, but the engine won't fire up because there's no signal for spark and fuel.
- Check Engine Light and/or EPC Light: A fault will trigger a Check Engine Light and often the Electronic Power Control (EPC) light on your dashboard. The most common trouble code is P0322. 🎬 See how to diagnose and fix the P0322 fault code.
- Rough Idle and Misfires: The engine may shake, vibrate, or run poorly due to incorrect timing.
- Poor Acceleration: Your Beetle may feel sluggish or go into a "limp mode," refusing to rev past 3,000 RPM.
Choosing the Right Aftermarket Sensor: Brand Quality Matters
When it comes to critical electronic sensors for a Volkswagen, brand quality is extremely important. While budget parts are available, they have a high failure rate and can leave you stranded again. For this specific part, it is strongly recommended to use a brand known for its OE (Original Equipment) quality.
Brand Tiers for Your VW Beetle
- Tier 1: OEM / OE-Supplier Brands (Recommended): These brands are either the original supplier to Volkswagen or are known for equivalent quality. They provide the best reliability and longevity. For this part, Bosch is the most frequently cited OEM manufacturer.
- Bosch: The most recommended choice for a direct, reliable replacement.
- Hella, Bremi: Excellent German brands with a reputation for high-quality electronics that meet OE standards.
- NGK / NTK: A well-respected manufacturer of engine sensors.
- Tier 2: Reputable Aftermarket Brands: These brands offer a good balance of quality and price, and are generally more reliable than store-brand or no-name parts.
- Delphi
- Standard Ignition (Intermotor)
- Beck Arnley
- Tier 3: Budget Brands: This category includes many private-label and lesser-known brands. While the low price is tempting, these sensors have a higher risk of being faulty out of the box or failing prematurely. Using these parts is a gamble that could mean doing the repair twice.
Pro Tip: Avoid the Headache
Spending an extra $30-$50 on a Bosch or Hella sensor is a wise investment compared to the risk and frustration of a cheap sensor failing. Many VW owners and mechanics report that these engines are sensitive to the quality of electronic parts.
Typical Replacement Costs
The cost to replace the crankshaft position sensor can vary based on who does the work and the brand of part you choose.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $20.77 - $138.90 |
| New OEM Part | $120 - $220 |
| Shop Labor | $80 - $150 |
| Total Professional Replacement | $143 - $309+ |
Frequently Asked Questions (FAQ)
Where is the crankshaft position sensor located on my Beetle?

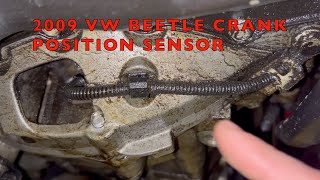

The sensor is located on the lower part of the engine block, near the oil filter and where the engine meets the transmission. Access is from underneath the car. You will likely need to remove the plastic splash shield to see it.
Is this a difficult DIY job?

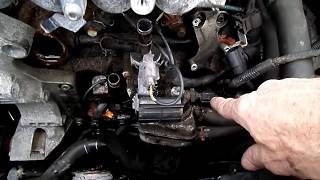

For a person with some mechanical experience, this is a manageable DIY job. The main challenge is the tight space. On the 2.0L and 1.8T engines, it's held by a single 10mm bolt. 🎬 Watch this guide on removing the sensor from 2.0L engines. On the 2.5L engine, it's held by two small Allen bolts. You will be working mostly by feel. Watching a video tutorial for your specific engine is highly recommended.

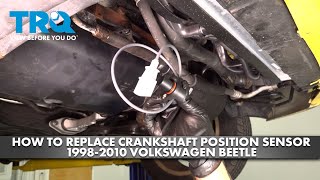

🎬 Watch this complete 1998-2010 Beetle sensor replacement walkthrough.Do I need to reset the computer after replacing the sensor?
Yes, after replacing the sensor, it is best to clear the stored trouble codes from the engine computer using an OBD-II scanner. If you don't have a scanner, disconnecting the battery's negative terminal for about 15 minutes may also reset the light.
What is the most common mistake when ordering this part?
The biggest mistake is buying the cheapest available sensor. These cars are known to be sensitive to sensor quality, and a low-quality part can cause the same problems to return quickly. The second mistake is not confirming the part number, as it can vary slightly by engine type (2.0L, 1.8T, TDI, 2.5L). Always verify fitment for your specific vehicle.
Helpful Videos
Technical Specifications
OEM Part Numbers: 06A906433G 06A906433L 06A906433N 06A906433B 03C906433E 03C906433A

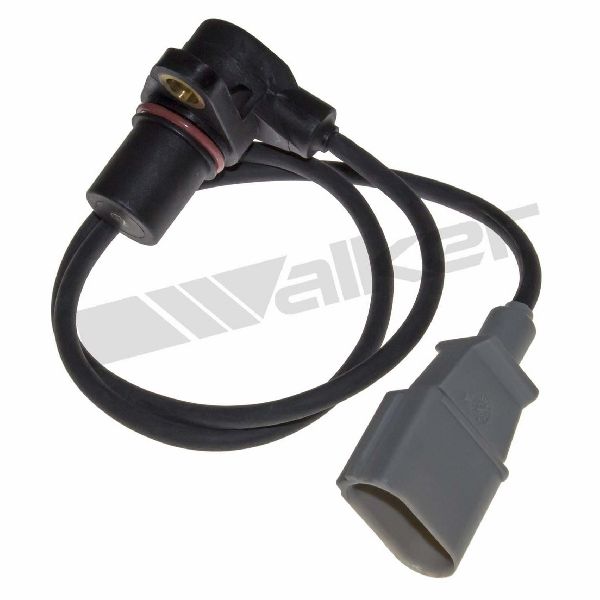

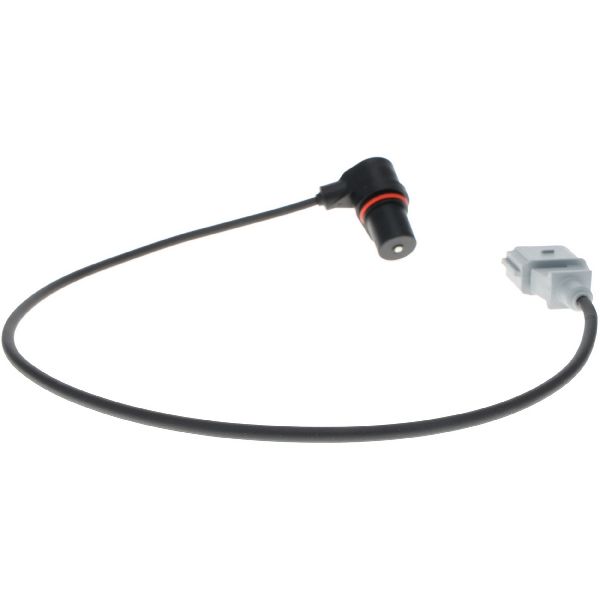

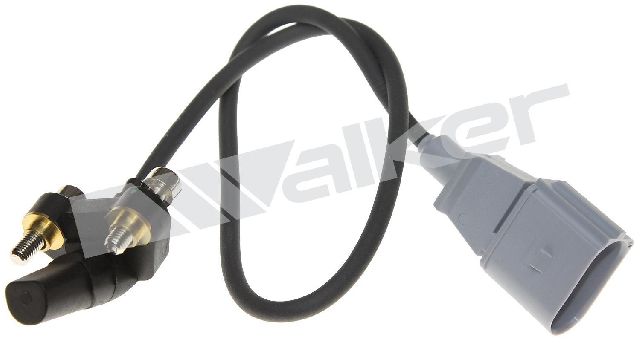

Typically a 3-wire Hall Effect sensor. The connector type and mounting bracket can vary between engine types (2.0L, 1.8T, 2.5L, TDI), so verifying the OEM part number is crucial.
