Ford Ranger (1998-2012) Front Alignment Caster & Camber Kit Guide
If your Ranger's tires are wearing unevenly or it pulls to one side, your alignment cams may be the culprit.
- The 1998-2012 Ranger often requires an aftermarket cam bolt kit to properly adjust front-end caster and camber.
- Key symptoms of a bad alignment or seized cams are uneven tire wear and the truck pulling to one side.
- Installation of the bolts is DIY-friendly, but a professional alignment is mandatory immediately afterward.
- If your Ranger is lifted, consider a specialty kit from a brand like Fabtech for a greater adjustment range.
Is Your Ranger Fighting You on the Road?
If you've noticed your 1998-2012 Ford Ranger is pulling to one side, your steering wheel isn't centered, or the inside or outside edges of your front tires are wearing out way too fast, you likely have an alignment issue. For this generation of Ranger, the factory upper control arm bolts that adjust caster and camber are not always adjustable. An aftermarket alignment caster/camber kit is often necessary to make these crucial adjustments, especially if the original hardware is rusted and seized.
Symptoms of Failing Alignment Cams
The original alignment hardware on these trucks is prone to seizing up with rust, making adjustments impossible for an alignment technician. When this happens, or if the control arm bushings are worn, the truck's alignment can't be set correctly. This leads to several noticeable problems.
🎬 Watch a summary of common issues for this Ranger generation.- Uneven Tire Wear: This is the most common sign. The inside or outside shoulder of your front tires will wear down much faster than the rest of the tread.
- Vehicle Pulling: Your truck may drift or pull to the left or right when you're trying to drive straight.
- Off-Center Steering Wheel: To drive straight, you might have to hold the steering wheel at a slight angle.
- Poor Handling: The truck might feel unstable or wander on the highway, especially on uneven roads.
A Note on Lift Kits
If you have installed a leveling or lift kit on your Ranger, the factory alignment adjustments may not be enough to get your truck back within specifications. You will likely need an aftermarket alignment kit that offers a wider range of adjustment to correct the angles and prevent tire wear. Brands like Fabtech specifically offer kits for lifted applications.
Choosing the Right Aftermarket Kit
Since the factory setup has limited adjustability, aftermarket kits are a common and necessary upgrade for many Ranger owners. Several brands offer kits, and quality can vary. Here’s a breakdown of what you can expect:
- Premium Brands (Moog, Mevotech TTX): Moog is a well-regarded name in chassis parts, known for designs that often improve on the original. Mevotech offers different tiers, with their "TTX" line being their premium offering designed for durability. These brands are a solid choice for owners who want a fit-and-forget solution.
- Standard/Value Brands (ACDelco, Dorman, Mevotech Supreme, QuickSteer): These brands offer a balance of quality and price. Dorman provides a lifetime warranty on many parts, which can be appealing. Mevotech's "Supreme" line is their standard offering. While generally reliable for a daily driver, some professional technicians have noted occasional inconsistencies with budget-friendly brands compared to premium or OEM parts.
- Specialty Brands (Fabtech): Fabtech specializes in off-road and lift suspensions. Their alignment kits are specifically designed to help correct suspension geometry on lifted trucks, providing a greater range of adjustment than standard kits. If your Ranger is lifted, a Fabtech kit is worth considering.
Pro Tip: Get the Alignment with the Parts
The bolts themselves are not difficult to install, but they are useless without an immediate, professional wheel alignment. Many shops will install the kit as part of the alignment service. If you install them yourself, drive directly to an alignment shop. Driving with the new, un-adjusted cams can be unsafe.
Typical Costs for an Alignment Kit
| Part Type | Price Range |
|---|---|
| New Aftermarket Alignment Kit | $24.23 - $93.28 |
| Shop Labor (Installation & Alignment) | $150 - $300 |
Frequently Asked Questions
What are Caster and Camber?
Camber is the inward or outward tilt of the top of your tire when viewed from the front. Caster is the angle of your steering pivot axis when viewed from the side. Both are critical for stable steering, proper handling, and even tire wear.

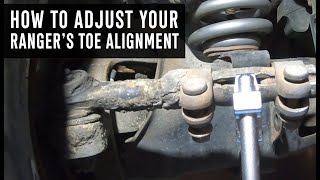

🎬 Learn how to adjust the toe alignment on your truck.Do I need a kit for both sides?
Yes. Alignment kits are typically sold with enough hardware to service both the left and right sides of the vehicle. You should always replace them as a set to ensure even adjustability.
Can I install an alignment kit myself?

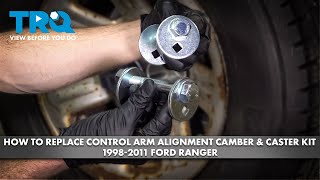

Yes, a DIYer with basic tools can install the cam bolts. The process involves unbolting the upper control arms, swapping the hardware, and re-tightening. 🎬 See a step-by-step guide on replacing your alignment cam kit. However, the vehicle is not safe to drive any significant distance until a professional wheel alignment is performed, which requires specialized equipment.
Are there any recalls for my Ranger's alignment?
Searches of the NHTSA database did not show any recalls specifically for the caster/camber adjustment hardware on 1998-2012 Ford Rangers. Recalls found were for newer model years or different suspension components.
Helpful Videos
Technical Specifications
OEM Part Numbers: F5TZ3B236A
Provides camber and/or caster adjustment, typically from +/- 2.0 to +/- 3.25 degrees, depending on the kit. Replaces the original, non-adjustable upper control arm bolts.
