Ford Ranger Front Disc Brake Hardware Guide (1998-2013)
Eliminate brake noise and ensure even pad wear on your Ranger by replacing this often-overlooked kit.
- Always replace the disc brake hardware kit when changing brake pads and rotors to prevent noise and ensure even wear.
- Thoroughly clean the caliper bracket with a wire brush before installing the new hardware clips.
- Properly lubricate caliper slide pins with silicone-based brake grease to prevent calipers from sticking.
- For a few dollars more, premium aftermarket kits from brands like Raybestos or Centric often offer better materials and corrosion resistance.
Is Your Ranger's Brake Hardware Worn Out?
If you're tackling a brake job on your 1998-2013 Ford Ranger, don't reuse the old brake hardware. The constant heat cycles and road grime cause the metal clips to lose their tension and the rubber boots to crack. Worn hardware is a primary cause of brake noise, uneven pad wear, and calipers that stick or seize. For the small cost of a new kit, you ensure your new pads and rotors work correctly from day one.
Symptoms of Bad Brake Hardware
- Brake Squeal or Rattle: Annoying noises when you brake, or a rattling sound when you're driving, can be caused by weak or missing anti-rattle clips.
- Uneven Brake Pad Wear: If pads are wearing at an angle or one pad is much thinner than the other, it often means the caliper isn't sliding freely due to a seized slide pin or binding hardware.
- Brake Dragging: A feeling that the truck is holding itself back, along with excess heat from one of the wheels, points to a caliper that isn't releasing properly. This can quickly destroy new pads and rotors.
- Pulling to One Side: When one brake is working harder than the other due to a sticking caliper, your truck may pull to the left or right when you hit the brakes.
Choosing the Right Aftermarket Hardware Kit
For a part like a disc brake hardware kit on the Ford Ranger, you don't need to spend a fortune on OEM parts from the dealer. Quality aftermarket brands offer excellent performance and value. The most important thing is to replace the hardware every time you replace your pads. Here’s a breakdown of the brands available:
- Premium (Raybestos, Centric, Dynamic Friction): These brands are well-regarded in forums and by mechanics. They often use high-quality materials like stainless steel for their clips, which offers better corrosion resistance than the plated steel found in cheaper kits. For the few extra dollars, these kits provide the best fit and longevity.
- Standard (Carlson, Dorman): These are solid, budget-friendly options that will get the job done. They meet OEM specifications and are a massive improvement over reusing old, worn-out hardware. While they may use less expensive materials, they are a perfectly acceptable choice for a daily-driven Ranger.
Pro Tip: When installing your new hardware, take a wire brush and clean all the rust and debris from the caliper bracket where the clips sit. A clean surface is essential for the new hardware to fit correctly and allow the pads to move smoothly. Also, be sure to lubricate the caliper slide pins with a proper silicone-based brake grease.
Estimated Costs for Disc Brake Hardware Replacement
| Part/Service | Estimated Cost |
|---|---|
| Aftermarket Hardware Kit | $9 - $27 |
| Shop Labor (as part of a brake job) | $100 - $200 |
Note: Labor costs are estimated as part of a complete front brake pad and rotor replacement. Shops typically do not replace only the hardware.
Frequently Asked Questions
Do I really need to replace the hardware with every brake job?
Yes, absolutely. It is the most recommended practice by mechanics. The old clips have been heat-cycled thousands of times and have lost their spring tension. Reusing them is the number one cause of noise and premature wear on a new set of brakes. For less than $30, it's cheap insurance for your entire brake job.
What's the difference between a cheap and an expensive hardware kit?
The main difference is often the material. More expensive kits from brands like Raybestos or Centric may use stainless steel for the abutment clips, which resists rust better than the zinc-plated steel in economy kits. They may also have a more precise fit and finish. For a truck like the Ranger that sees all kinds of weather, spending a few extra dollars on a premium kit can be a worthwhile investment.
Will new hardware fix my squealing brakes?
It is a very common solution. If the squeal is caused by vibration between the pads and the caliper, new anti-rattle clips can solve the problem. However, squealing can also be caused by worn-out pads (the wear indicator), glazed rotors, or a lack of lubrication on the back of the pads. A complete brake job including pads, rotors, and new hardware is the best way to eliminate noise.
What are abutment clips?

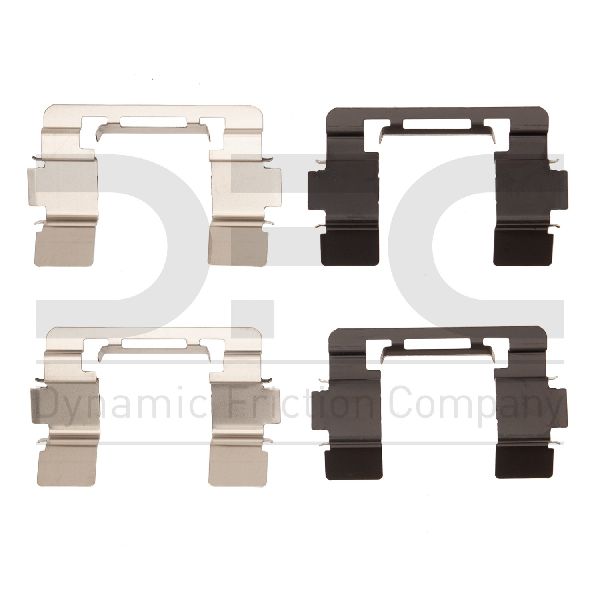

These are the small metal clips that snap into the caliper bracket. The "ears" of the brake pads rest on these clips. They provide a smooth, clean surface for the pads to slide on. Without them, the pads would grind against the rough cast iron of the bracket, leading to binding and uneven wear.
Technical Specifications

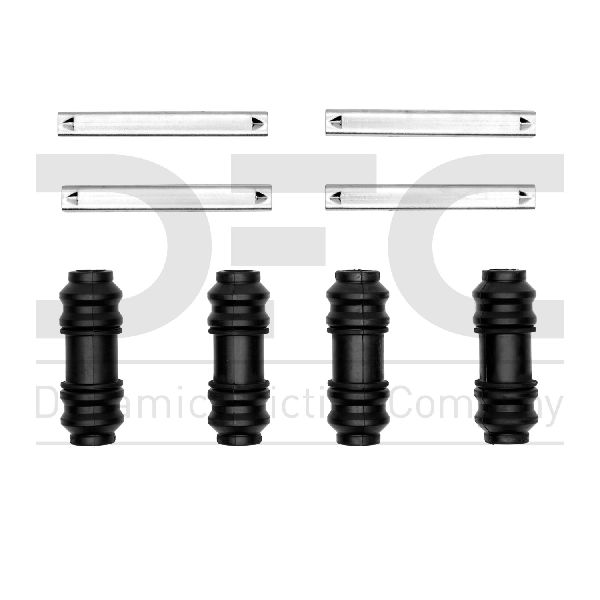

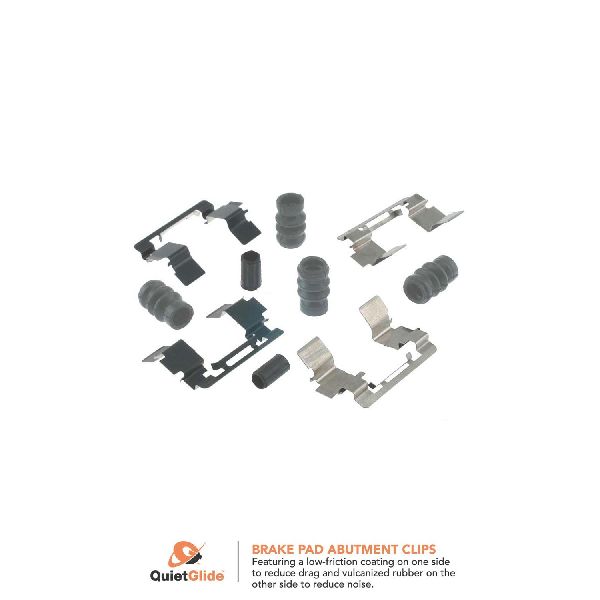

Kit typically includes abutment clips, anti-rattle springs, and caliper pin boots. Materials vary from zinc-plated steel to stainless steel.
