Ignition Knock Sensor for the 1998-2014 Chevrolet Corvette (C5 & C6)
Don't let a bad knock sensor pull timing and rob power from your Corvette's LS engine.
- For C5 Corvettes (1998-2004), the sensors are under the intake manifold; always replace both sensors and the harness at the same time.
- Water intrusion is a known issue on C5s; apply RTV sealant around the sensor wells as described in TSB #02-06-04-023A.
- For C6 Corvettes (2005-2014), sensors are on the side of the block and are much easier to replace.
- Use high-quality brands like ACDelco or Delphi to avoid doing the labor-intensive C5 job twice.
- The sensor bolt must be torqued to exactly 15 lb-ft.
Is a Bad Knock Sensor a Common Problem on Corvettes?
Yes, knock sensor issues are fairly common, especially on the 1998-2002 C5 models. A well-known Technical Service Bulletin (TSB) was issued for these cars due to their design. The sensors are located in the valley under the intake manifold, where they can be exposed to water. This is often a problem for owners who frequently wash their engine bay. Water pools in the sensor cavities, causing corrosion on the sensor and its wiring harness, leading to a Check Engine Light and fault codes.
C5 vs. C6 Corvette: A Major Difference in Replacement
Before buying a knock sensor, you must know which generation of Corvette you have, as the job is completely different between them.
- C5 Corvette (1998-2004 LS1/LS6): The two knock sensors are located under the intake manifold. Replacing them is a significant job that requires removing the fuel rails, injectors, and the entire intake manifold to gain access. 🎬 Watch this step-by-step guide to removing the LS1 intake manifold. This is a 3-5 hour job for an experienced mechanic.
- C6 Corvette (2005-2014 LS2/LS3/LS7): GM relocated the knock sensors to the outer sides of the engine block. They are much easier to access from underneath the car, making replacement a simpler, 1-2 hour job.
Known Issue: C5 Corvette Water Intrusion (TSB #02-06-04-023A)
For 1998-2002 Corvettes, GM recommends a specific procedure when replacing the rear knock sensor to prevent future failures. A dam of RTV silicone sealant should be built around the sensor opening in the valley cover to divert water. The foam block on 🎬 See these essential tips for a successful knock sensor installation. the bottom of the intake manifold should also be removed, as it can act like a sponge and hold water against the sensors.
Choosing the Right Aftermarket Knock Sensor
Because replacing the sensors on a C5 Corvette is so labor-intensive, choosing a quality part is critical to avoid doing the job twice. Based on owner feedback, not all aftermarket brands are created equal.
- Top Tier (OEM Quality): ACDelco and Delphi are the most recommended brands. Delphi was an original equipment manufacturer for GM, and their parts are often identical to ACDelco parts. For peace of mind, especially on a C5, stick with one of these two.
- Reputable Aftermarket: Brands like NGK and Standard Ignition (SMP) generally have a good reputation for sensors and are considered reliable mid-tier options.
- Budget Brands: There are many reports of owners using budget-friendly store brands who then get immediate fault codes after installation. While the low price is tempting, the risk of a faulty part and having to repeat the repair makes these a poor choice for this specific job.
Pro Tip: Always Replace the Harness on C5 Models
While you have the intake manifold off a C5, always replace the knock sensor wiring harness. The original harness becomes extremely brittle from years of heat cycles and the connector clips often break upon removal. A new harness is inexpensive and ensures a solid connection to your new sensors.
How Much Does a New Knock Sensor Cost?
The cost depends on the brand you choose and the labor involved for your specific Corvette generation.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Knock Sensor | $15 - $97 per sensor |
| Shop Labor (C5 Corvette) | $350 - $600 |
| Shop Labor (C6 Corvette) | $120 - $250 |
Frequently Asked Questions
What are the OBD-II codes for a bad knock sensor?
The most common codes are P0327 (Knock Sensor 1 Circuit Low Input - Front Sensor on C5, Bank 1 on C6) and P0332 (Knock Sensor 2 Circuit Low Input - Rear Sensor on C5, Bank 2 on C6). You may also see P0325 (Knock Sensor 1 Circuit Malfunction).
🎬 Watch: How to diagnose and fix P0327 and P0332 codes.Is the torque specification for the knock sensor important?
Yes, it is critical. The sensor works by detecting vibrations, and over- or under-tightening it can change its sensitivity, leading to false signals or no signal at all. The correct torque specification for LS engines is 15 lb-ft (20 N·m).
Do I need to replace both sensors at the same time?
On a C5 Corvette, it is highly recommended to replace both sensors and the harness at the same time. The labor to remove the intake manifold is the biggest part of the cost, so it makes sense to replace all related components while you are in there. On a C6, since they are individually accessible, you can replace only the failed sensor.
Can a bad knock sensor cause a no-start condition?
It is very rare for a bad knock sensor to cause a complete no-start condition. However, it can cause poor performance, rough idle, and hesitation that might make the car difficult to drive.
Helpful Videos
Technical Specifications

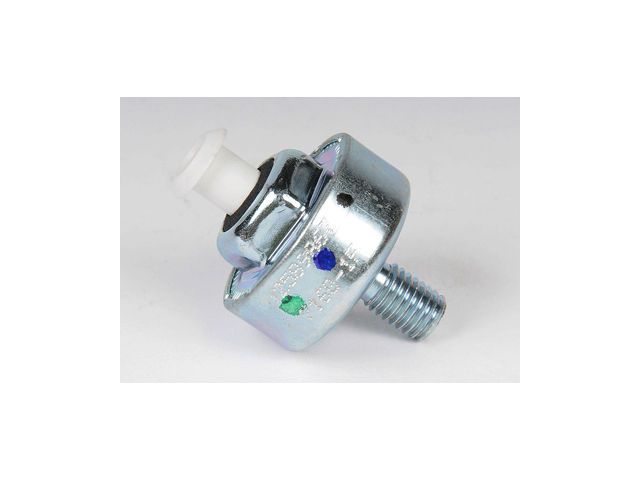

OEM Part Numbers: 12589867 213-3521
Location (C5): Under intake manifold, in valley cover. Location (C6): External on engine block sides. Torque Spec: 15 lb-ft (20 N·m).
